The GDX v2 series has been redesigned to adapt to high-performance setups equipped with the latest generations of graphics cards. ATX 3.0 version with PCIe 5.0 connection makes it extremely versatile and ideal for high-end configurations. It comes standard with the 12VHPWR cable to power Nvidia® GeForce RTX® series 40 graphics cards, without the need for any 6+2 pin adapters, ensuring a completely secure power supply.

ATX 3.0 PCIe 5.0 80Plus Gold Full Modular
The GDX v2 series has been redesigned to adapt to high-performance setups equipped with the latest generations of graphics cards. ATX 3.0 version with PCIe 5.0 connection makes it extremely versatile and ideal for high-end configurations.

It comes standard with the 12VHPWR cable to power Nvidia® GeForce RTX® series 40 graphics cards, without the need for any 6+2 pin adapters, ensuring a completely secure power supply.

It is 80PLUS GOLD certified and features high-quality components designed for high-performance systems. The 140mm thermostatically regulated fan with fluid dynamic bearings (FDB) significantly reduces operating noise and extends its durability.

12VHPWR connector with a 650mm modular cable length
It includes the 12VHPWR cable as standard to power Nvidia® GeForce RTX® series 40 graphics cards, eliminating the need for any 6+2 pin adapters, ensuring a completely secure power supply, and reducing the risk of connection issues during PC installation.

It provides up to 600W of power and has been manufactured with high-quality materials to ensure maximum performance and safety in use.

80Plus Gold Certified with Japanese electrolytic capacitors
The GDX v2 series incorporates high-end Japanese electrolytic capacitors, components that allow real power with stable voltage and reliability over time.The GDX v2 80Plus Gold series is one of the best power supplies for computers with high performance graphics.

GDX v2 power supplies have an 80PLUS GOLD certificate, which guarantees an efficiency of more than 90% and achieves lower consumption and greater durability of all the components.

Heat emissions will be reduced with more efficient working, allowing the fan to work at a lower speed, so the noise produced by the power supply will be virtually imperceptible.

It incorporates complete protections with OVP / UVP / OPP / SCP / SIP.

DC to DC Technology
The GDX v2 series has DC to DC technology to offer clean, stable, noise-free power and is made from high-performance capacitors to provide maximum reliability and durability in very demanding conditions.

DC to DC (Direct Current/Direct Current) technology is much more efficient and safe, as the voltage is not converted unless it is necessary to do so. A DC/DC conversion is much more efficient than AC/DC, there are fewer losses and less heat is generated.

The GDX v2 series offers a durability greater than 100.000 hours of operation.

Full Modular with extra long flat cables
The GDX v2 series is Full Modular which means you only have to connect the cables you need to the supply thus ensuring greater comfort when assembling your equipment.

100% flat cables of high quality and extra long, facilitate adaptation when installing in any equipment, thereby assuring more orderly installation while taking up less space and provide excellent safety and durability.

Ultra-silent 140mm fan with thermostatically regulated fluid dynamic bearings (FDB)
The ultra-silent 140mm fan with thermostatically regulated fluid dynamic bearings (FDB) significantly reduces operating noise and extends its durability.

It adjusts its operation according to the different needs of the system, running at maximum power only when required.

The 140mm fan delivers a higher airflow at lower revolutions, making the fan noise practically imperceptible, and achieving greater efficiency and durability for all components.

Dual EPS12V & Six 6+2 PCIe
The GDX v2 series has two EPS12V lanes and six 6+2 PCIe lanes for high-performance graphics.

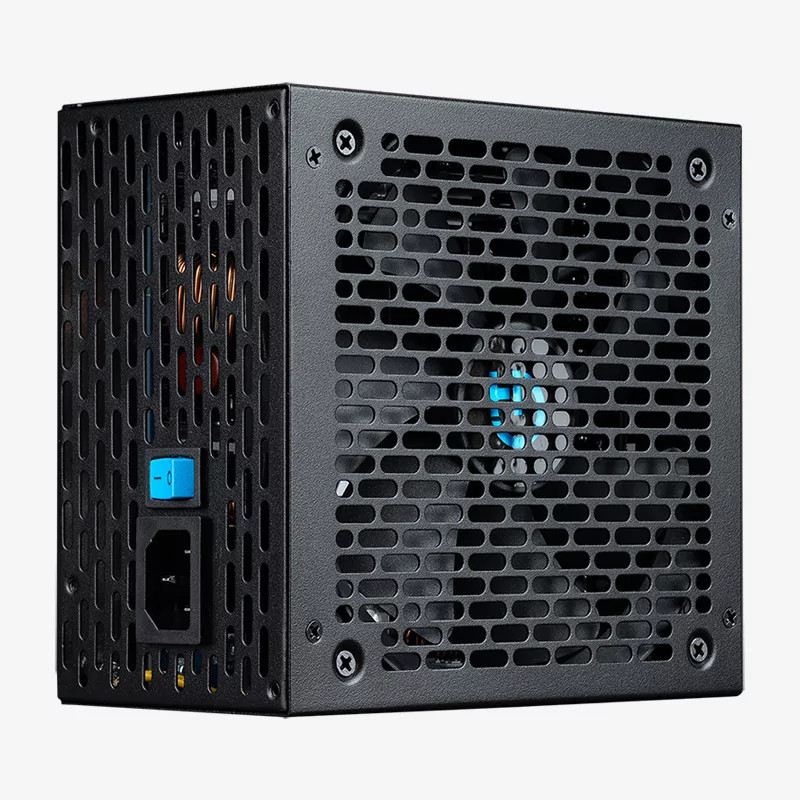

Hiditec GDX1050 v2. Total power: 1050 W, AC input voltage: 100 - 240 V, Max output current (+3.3V): 20 A. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: Black, Cooling type: Active, Fan diameter: 5.51" (14 cm). Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Total power	1050 W
AC input voltage	100 - 240 V
Max output current (+3.3V)	20 A
Max output current (+12V)	88 A
Max output current (+5V)	20 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	6
PCI Express connector	Yes
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.0
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h
Product color	Black
Cooling type	Active
Fan diameter	5.51" (14 cm)
Number of fans	1 fan(s)
On/off switch	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Width	5.91" (150 mm)
Depth	3.39" (86 mm)
Height	6.3" (160 mm)
Weight	4.85 lbs (2.2 kg)
Warranty period	5 year(s)
Sustainability compliance	Yes
