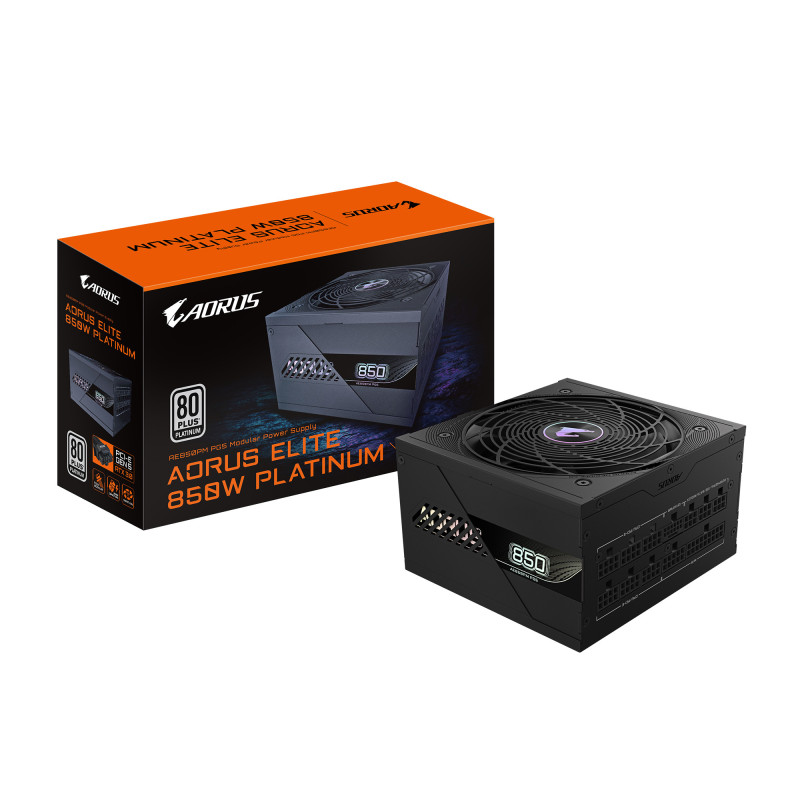

GIGABYTE AORUS ELITE P850W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 25.6" (65 cm), Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.91" (150 mm), Depth: 5.51" (140 mm), Height: 3.39" (86 mm)

Total power	850 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	12 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	849.6 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	70.8 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Hold time	16 ms
Efficiency	90%
Power Good signal delay range	100 - 150 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	4
Motherboard power cable length	25.6" (65 cm)
Number of SATA power connectors	8
PCI Express power connectors (6+2 pin)	6
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Floppy drive power connector	2
Floppy disk drive connector	Yes
PCI Express connector	Yes
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	Ball bearing
Mean time between failures (MTBF)	100000 h
Product color	Black
Cooling type	Active
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Fan location	Top
On/off switch	Yes
Width	5.91" (150 mm)
Depth	5.51" (140 mm)
Height	3.39" (86 mm)
Weight	5.89 lbs (2.67 kg)
Package width	13.4" (340 mm)
Package depth	8.11" (206 mm)
Package height	4.72" (120 mm)
Package weight	7.28 lbs (3.3 kg)
Package type	Box
Warranty period	10 year(s)
