With high-performance wired and wireless connectivity and dedicated user touchscreen. Ideal for high-volume, secure batch scanning for collaborative and complex workflows.

For uninterrupted high-volume, batch scanning. With the simplicity of one-touch scanning, securely capture, send and receive business documents with ease, whether they're at home or in the office.

Fast and reliable

With an in-built ultrasonic multifeed to eliminate misfeeds, the ADS-4900W has the largest sheet ADF capacity (100 sheets) and is the fastest in the range, scanning up to 60 pages per minute, or one every second. The separation switch enables very thick and thin documents, plastic cards and crumpled paper to smoothly feed through with ease.

Simple and intuitive

Set up a dedicated user interface with one-touch scanning and the ability to add up to 56 shortcuts to frequently used destinations. You can also use an optional external cardreader to make the scanning process even easier. Just tap the card and add your documents into the ADF to automatically and securely capture the information on the page.

Advanced connectivity

With 5GHz wireless connectivity, network, USB3.0 and USB host, you can securely scan documents and share with colleagues.

Advanced image capture and processing

Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.

The document separation functionality also automatically detects and removes any scanned blank pages, thus reducing file sizes and document preparation time.

Brother ScanEssentials

Our ScanEssentials software provides you with additional features which you can tailor to your business. For added security, you can set up passwords and protect your workflows, with the option to save your documents in a variety of formats.

The metadata function can also read barcodes or specific strings of text to easily facilitate the separation and file naming of documents.

Industry recognised software

Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.

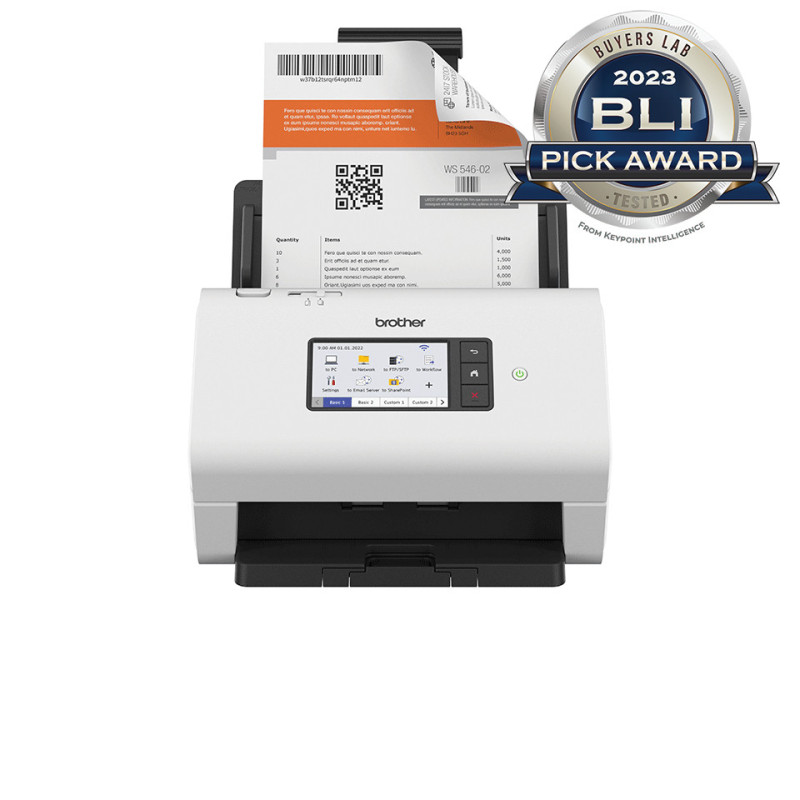

Brother ADS-4900W. Maximum scan size: 8.5 x 14" (215.9 x 355.6 mm), Optical scanning resolution: 600 x 600 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: ADF + Sheet-fed scaner, Product color: Black, White, Display: LCD. Sensor type: Dual CIS, Daily duty cycle (max): 9000 pages, Light source: LED. Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Media thickness (min): 0.00315" (0.0800 mm)

Maximum scan size	8.5 x 14" (215.9 x 355.6 mm)
Optical scanning resolution	600 x 600 DPI
Duplex scanning	Yes
Enhanced scan resolution	1200 x 1200 DPI
Color scanning	Yes
Input color depth	48 bit
Output color depth	24 bit
Output grayscale depth	8 bit
Grayscale levels	256
ADF scan speed (b/w, A4)	60 ppm
ADF scan speed (color, A4)	60 ppm
Duplex ADF scan speed (b/w, A4)	120 ipm
Duplex ADF scan speed (color, A4)	120 ipm
Scanner type	ADF + Sheet-fed scaner
Built-in display	Yes
Product color	Black, White
Display	LCD
Display diagonal	4.3"
Touchscreen	Yes
Color display	Yes
Control type	Touch
Sensor type	Dual CIS
Daily duty cycle (max)	9000 pages
Light source	LED
Scan file formats	JPEG, PDF, TIFF
Maximum duty cycle	180000 pages per month
Scan to	E-mail Server, FTP, HTTP, PC, SMB
Scan drivers	ISIS, SANE, TWAIN, WIA
Ultrasonic sensor	Yes
Scanning noise level	62 dB
Auto document feeder (ADF) input capacity	100 sheets
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Long-paper mode	Yes
Media thickness (min)	0.00315" (0.0800 mm)
Card thickness (max)	0.0520" (1.32 mm)
Paper tray media weight	25 - 413 g/m²
Auto Document Feeder (ADF) media weight	25 - 413 g/m²
Maximum scan width	8.5" (21.6 cm)
Maximum scan length	196.9" (5 m)
USB port	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Security algorithms	AES, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TKIP, TLS, WEP, WPA-PSK, WPA2-AES, WPA2-PSK, WPA3
Supported network protocols (IPv6)	RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Supported network protocols (IPv4)	DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP
IPv6 support	Yes
Power supply type	AC
Power consumption (typical)	34 W
Power consumption (standby)	7.7 W
Power consumption (off)	0.1 W
Sleep mode	Yes
Power consumption (sleep)	1.7 W
Output voltage	24 V
Output current	1.9 A
Auto power off	Yes
Width	11.3" (288 mm)
Depth	13.1" (334 mm)
Height	15.5" (393 mm)
Weight	8.4 lbs (3.81 kg)
Quantity per pack	1 pc(s)
Package width	15.5" (393 mm)
Package depth	11.3" (288 mm)
Package height	13.1" (334 mm)
Package weight	10.1 lbs (4.6 kg)
Cables included	AC, USB
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Cable lock slot	Yes
Certification	GS Mark, WHQL, WHQL, ISIS, Wi-Fi CERTIFIED - WPA3 Enterprise, WPA3 Personal, Wi-Fi Protected Setup, Wi-Fi Direct, KofaxTM 5,10 - VRS Elite 5.2.0, Kofax Express 3.3.0
Pallet type	800 x 1200 mm
Quantity per pallet	40 pc(s)
Country of origin	China
Number of cartons per pallet	40 pc(s)
Number of layers per pallet	5 pc(s)
Pallet weight	410.1 lbs (186 kg)
Pallet height	7.13" (18.1 cm)
Number of cartons per pallet layer	8 pc(s)
Harmonized System (HS) code	84716070
