A compact document scanner with the speed, power and flexibility to thrive in the most-demanding and fast-paced environments.

Compact, modern design and powerful efficiency-driving features
Small stature, big performance – the imageFORMULA DR-C230 offers consummate reliability and supreme productivity, at an affordable price point. This robust desktop scanner captures multiple document formats and sizes with ease.

Premium performance
With scan speeds of up to 30ppm and 60ipm, the imageFORMULA DR-C230 offers exceptional productivity at a pleasantly modest price point.

Class-leading reliability
The DR-C230 has been engineered to ensure maximum dependability. Its 60-sheet ADF seamlessly feeds various media sizes, delivering up to 3,500 scans per day.

Simple, swift scanning
This convenient desktop model allows users to scan with a single button press, and offers useful features such as automatic page size and text direction detection.


Broad software selection
Featuring an impressive range of applications, the DR-C230 has the tool for every job, with CapturePerfect and CaptureOnTouch V4 Pro included.

Cost-effective operation
Consuming just 19W in operation and 1.4W in standby, the DR-C230 is both environmentally and fiscally efficient, without compromising on performance.

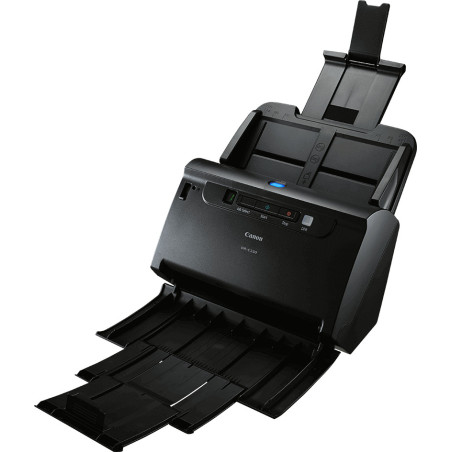

Canon imageFORMULA DR-C230. Maximum scan size: 8.5 x 118.1" (216 x 3000 mm), Optical scanning resolution: 600 x 600 DPI, Output color depth: 24 bit. Scanner type: Sheet-fed scanner, Product color: Black. Sensor type: CMOS CIS, Daily duty cycle (max): 3500 pages, Light source: RGB LED. Standard input capacity: 60 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Media thickness (min): 0.00236" (0.0600 mm)

Maximum scan size	8.5 x 118.1" (216 x 3000 mm)
Optical scanning resolution	600 x 600 DPI
Duplex scanning	Yes
Color scanning	Yes
Output color depth	24 bit
Output grayscale depth	8 bit
Grayscale levels	256
ADF scan speed (b/w, A4)	30 ppm
ADF scan speed (color, A4)	30 ppm
Duplex ADF scan speed (b/w, A4)	60 ipm
Duplex ADF scan speed (color, A4)	60 ipm
Scanner type	Sheet-fed scanner
Built-in display	No
Product color	Black
Sensor type	CMOS CIS
Daily duty cycle (max)	3500 pages
Light source	RGB LED
Scan drivers	ISIS, TWAIN
Standard input capacity	60 sheets
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plastic Card
Multi feed detection	Yes
Media thickness (min)	0.00236" (0.0600 mm)
Maximum scan width	8.5" (21.6 cm)
Maximum scan length	118.1" (3 m)
USB port	Yes
USB version	2.0
Standard interfaces	USB 2.0
Power supply type	AC
Power consumption (typical)	19 W
Power consumption (standby)	1.4 W
Power consumption (off)	0.1 W
AC input frequency	50 - 60 Hz
Input voltage	100-240 V
Width	11.5" (291 mm)
Depth	9.96" (253 mm)
Height	9.09" (231 mm)
Weight	6.17 lbs (2.8 kg)
Cables included	AC, USB
AC adapter included	Yes
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016
Operating temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80%
Scan media weight	27 - 209 g/m²
Compliance certificates	RoHS
Harmonized System (HS) code	84716070
