Zero Trust Networks Security
Remote working is here to stay, USG FLEX series applies the principles of zero trust access. It ensures the same security controls are applied to HQ, branch offices, home, or wherever your remote workers reside. Create access policy with device contextual such as OS version or device category to enforce network segmentation. This reduces the attack surface and prevents threats from spreading.

USG FLEX minimizes risk by adding granular policies and access authentication for the ever-growing needs of a secure workplace. Improve protection across identities, devices, applications, and network. Reduce risk and build trust across your entire digital assets.

Zero Trust Networks Security
Remote working is here to stay, USG FLEX series applies the principles of zero trust access. It ensures the same security controls are applied to HQ, branch offices, home, or wherever your remote workers reside. Create access policy with device contextual such as OS version or device category to enforce network segmentation. This reduces the attack surface and prevents threats from spreading.

USG FLEX minimizes risk by adding granular policies and access authentication for the ever-growing needs of a secure workplace. Improve protection across identities, devices, applications, and network. Reduce risk and build trust across your entire digital assets.

Simplified and Unified Licensing Experience
We know the experience from license purchase and renewals are equally important to our partners. We've optimized the licensing management platform and brought a consistent migration path between on-premise and our cloud platform. We make sure our partners can quickly adapt to a secure environment without the hassle but retaining the flexibility for those who need to practice the same security across networks scenarios.

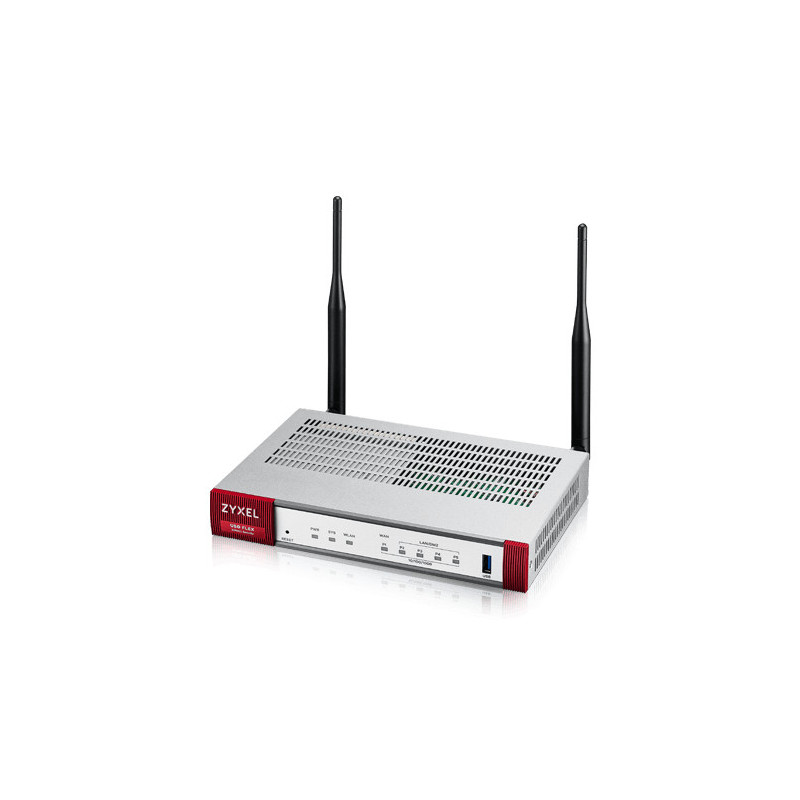

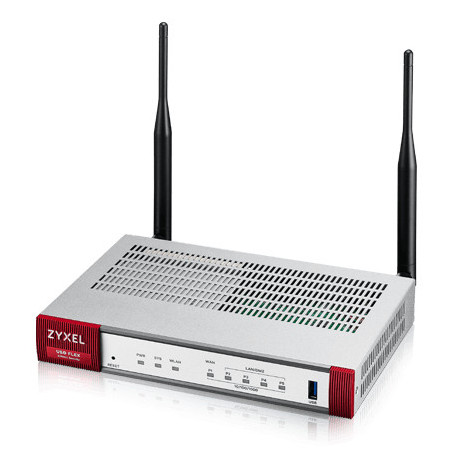

Zyxel USG FLEX 100AX. Firewall throughput: 0.9 Gbit/s, VPN throughput: 0.27 Gbit/s, IPS/IDS throughput: 540 Mbit/s. Heat dissipation: 55.37 BTU/h, Antenna design: External, Antenna gain level (max): 3 dBi. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). VPN support: IKEv2, IPSec, SSL, L2TP/IPSec. Connectivity technology: Wireless, WAN connection: Ethernet (RJ-45)

Firewall throughput	0.9 Gbit/s
VPN throughput	0.27 Gbit/s
IPS/IDS throughput	540 Mbit/s
Heat dissipation	55.37 BTU/h
Antenna design	External
Antenna gain level (max)	3 dBi
Antennas quantity	2
Detachable antenna(s)	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Number of VLANs	8
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
VPN support	IKEv2, IPSec, SSL, L2TP/IPSec
Connectivity technology	Wireless
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	4
WAN connection	Ethernet (RJ-45)
Input current	2.5 A
DC input voltage	12 V
Power consumption (max)	24.3 W
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	8.5" (216 mm)
Depth	5.88" (149.3 mm)
Height	1.3" (33 mm)
Weight	2.2 lbs (1 kg)
Package width	11.2" (284 mm)
Package height	7.48" (190 mm)
Package depth	3.94" (100 mm)
Package weight	3.37 lbs (1.53 kg)
Cables included	Power
Firewall throughput	900 Mbit/s
VPN throughput	270 Mbit/s
