CONNECT YOUR PC
TO THE NEW FRONTIER

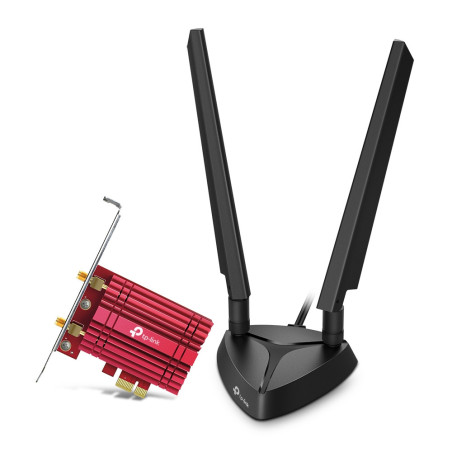

AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter

Upgrade Your WiFi to 6E
WiFi 6E means WiFi 6 extended to the 6 GHz band, a newly-opened frequency band that adds more bandwidth, faster speeds, and lower
latency. This opens up resources for future innovations in AR/VR, 8K streaming, and more.

Super Highway for Unimpeded Streaming
Archer TXE75E arms your PC with the newly opened 6 GHz band, unlocking your WiFi 6E router’s full potential. Enjoy unimpeded streaming on the 6 GHz band—exclusive to WiFi 6E devices. This prevents drops in speed and interference from legacy devices.

Superior WiFi Reception
Archer TXE75E brings your PC’s WiFi reception to the next level with the revolutionary combination of OFDMA and MU-MIMO. This ensures the efficiency of your PC’s WiFi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.

Ultra-Responsive Gaming with Lower Latency
Lower latency is key to seamless experiences in real-time applications like video conferencing and gaming. To achieve this, Archer TXE75E reduces lag by up to 75% with the Intel® Wi-Fi 6E chipset.

Stronger Connection with Flexible Antenna Placement
Two multi-directional and high-performance antennas with a magnetized base extend your existing WiFi reception capabilities, allowing you to stream throughout your home. Place the antenna base anywhere on your desktop to find the optimal location for signal reception.

The Latest Bluetooth 5.2
Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard. Archer TXE75E equips your PC with Bluetooth 5.2, which achieves faster speeds and broader coverage.

Refined Security
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

TP-Link Archer TXE75E. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 5400 Mbit/s, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product color: Black, Red

Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
Maximum data transfer rate	5400 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN data transfer rates supported	11,54,300,1732,2402 Mbit/s
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth	Yes
Bluetooth version	5.2
Internal	Yes
Component for	PC
Product color	Black, Red
Antenna	Yes
Antenna design	External
Transmitting power (FCC)	5 GHz: 20dBm, 2.4 GHz: 20dBm, 6 GHz: 12dBm
Operating modes	Infrastructure mode
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	3.75" (95.2 mm)
Depth	4.76" (120.8 mm)
Height	0.846" (21.5 mm)
Package width	10.7" (271.5 mm)
Package depth	8.52" (216.5 mm)
Package height	1.91" (48.5 mm)
Package weight	16.9 oz (480 g)
Mounting brackets included	Yes
Resource CD	Yes
Bluetooth header cable	Yes
Quick installation guide	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
