Enjoy Wi-Fi Outside, Finally

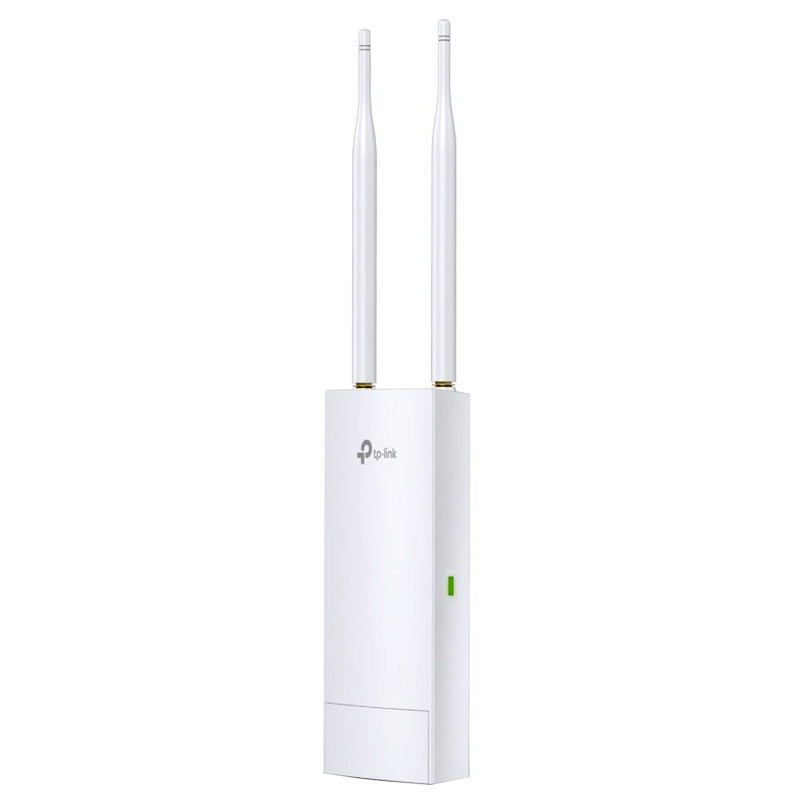

Omada EAP110-Outdoor

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Delicate Appearance Even Better for Indoor Applications
EAP110-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)

Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.

Flexible Deployment
EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.

Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.

Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

TP-Link Omada EAP110-Outdoor. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 3.12 W

2.4 GHz	Yes
5 GHz	No
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, VLAN mapping
Rate limiting	Yes
Wireless isolation	Yes
Quality of Service (QoS) support	Yes
Transmitting power (CE)	20 dBm
Transmitting power (FCC)	22 dBm
Security algorithms	WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes
Management protocols	HTTP/HTTPS, SNMP, Telnet
Web-based management	Yes
Syslog	Yes
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Output voltage	24 V
Output current	0.6 A
Power consumption (max)	3.12 W
Placement	Pole, Wall
Product color	White
International Protection (IP) code	IP65
Reset button	Yes
LED indicators	Power
Antenna type	External
Antenna direction type	Omni-directional
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	3 dBi
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	CE, FCC, RoHS
Width	8.5" (216 mm)
Depth	1.81" (46 mm)
Height	1.06" (27 mm)
Package width	5.51" (140 mm)
Package depth	10.6" (270 mm)
Package height	3.94" (100 mm)
Package weight	21.9 oz (620 g)
Package type	Box
Quantity per pack	1 pc(s)
PoE adapter included	Yes
Cables included	AC
Mounting kit	Yes
Antenna included	Yes
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Sustainability compliance	Yes
