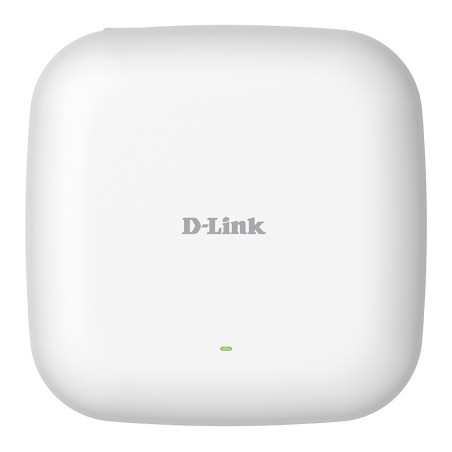

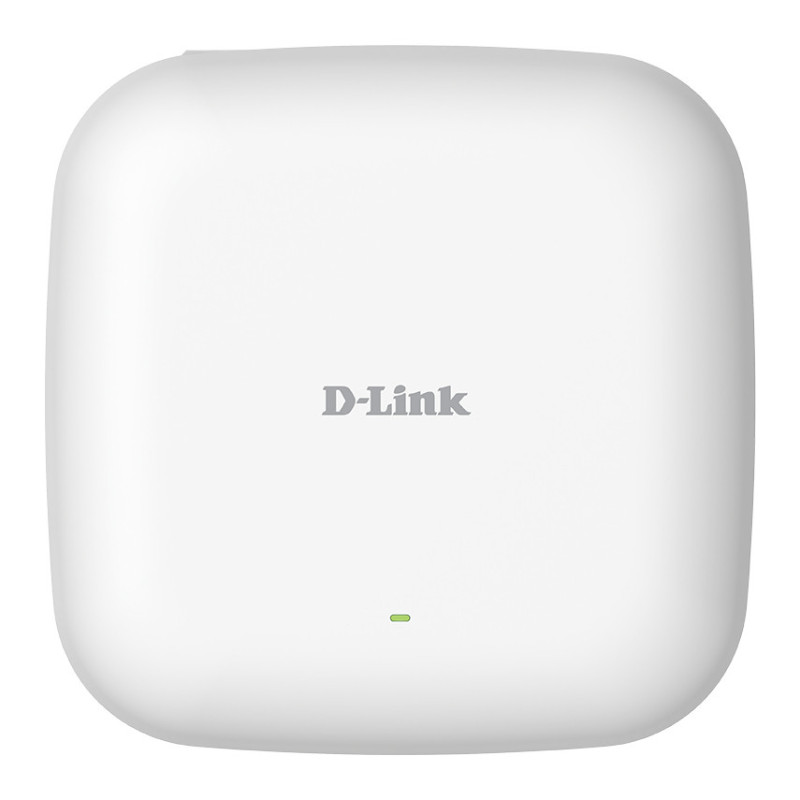

The WiFi4EU ready DAP-2662 Wireless AC1200 Wave 2 Dual-Band PoE Access Point is designed to provide wireless connectivity in public places, such as public buildings, libraries, health centres and museums, with secure and centrally manageable dual-band Wi-Fi. Utilising the cutting-edge speed of 802.11ac Wave 2, it delivers maximum combined wireless signal rates of up to 1200Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. It is Passpoint® certified by Wi-Fi Alliance and complies with Hotspot 2.0, making the process of devices finding and getting access to the known network seamless. For centralise network management, administrators can use D-Link’s free Nuclias Connect software or Nuclias Connect Hub (DNH-100) to configure and manage multiple access points. In addition to streamlining the management process, Nuclias Connect provides network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.

D-Link AC1200. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, SSID. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 6.5 W

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4, 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
Transmitting power	26 dBmW
Mean time between failures (MTBF)	341897 h
Security algorithms	64-bit WEP, 128-bit WEP, SSID
Number of SSID supported	16
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes
Power over Ethernet (PoE)	Yes
DC voltage range	12 V
Power consumption (max)	6.5 W
Placement	Ceiling, Table, Wall
Product color	White
Cable lock slot	Yes
LED indicators	Power
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3.8 dBi
Shipping (inner) case length	17" (43.1 cm)
Shipping (inner) case width	15.1" (38.3 cm)
Shipping (inner) case height	10.6" (26.8 cm)
Shipping (inner) case net weight	8.6 lbs (3.9 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	383.6 lbs (174 kg)
Number of cartons per pallet (air)	42 pc(s)
Quantity per pallet (air)	420 pc(s)
Pallet length	47.2" (120 cm)
Pallet width	43.3" (110 cm)
Pallet height (air)	79.1" (2.01 m)
Pallet gross weight (sea)	383.6 lbs (174 kg)
Number of cartons per pallet (sea)	42 pc(s)
Quantity per pallet (sea)	420 pc(s)
Pallet height (sea)	79.1" (2.01 m)
Shipping (inner) case weight	8.82 lbs (4 kg)
Certification	FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint
Width	6.69" (170 mm)
Depth	1.1" (28 mm)
Height	6.69" (170 mm)
Weight	12.3 oz (350 g)
Package width	8.19" (208 mm)
Package depth	9.76" (248 mm)
Package height	2.87" (73 mm)
Package weight	13.8 oz (390 g)
Quantity per pack	1 pc(s)
Frequency range	2400 - 5850 MHz
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Harmonized System (HS) code	85176990
