What this product does

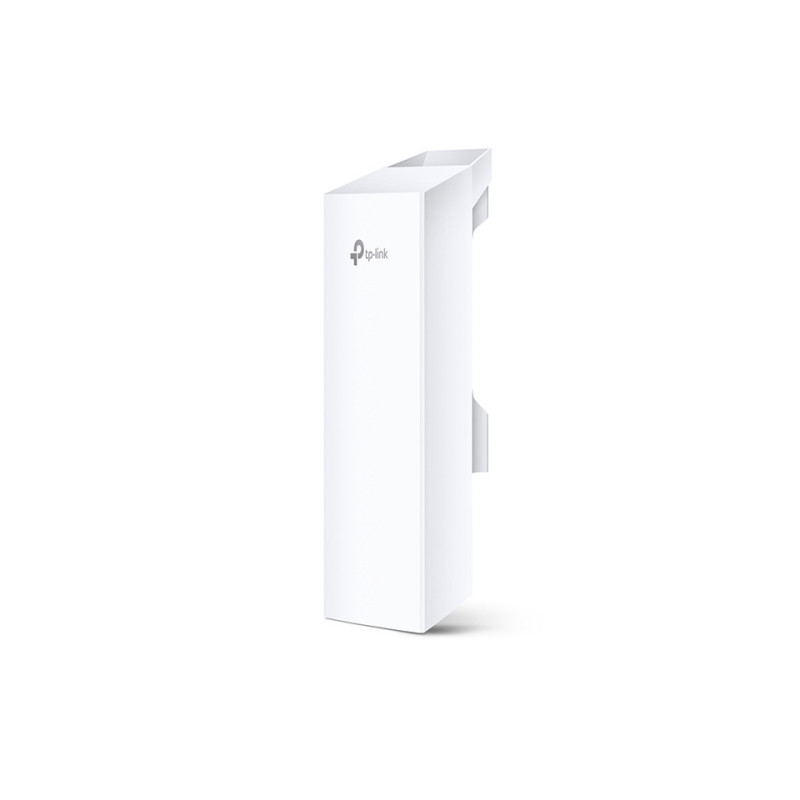

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.

High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.

Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).

Double Protection against ESD Attacks
Besides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to apply more specific configurations

TP-Link CPE510. 5 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product color: White

2.4 GHz	No
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (5 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Throughput data rate	300 Mbit/s
Frequency band	5.15 - 5.85 GHz
Bandwidth	5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11n
Cabling technology	10/100Base-T(X)
Automatic channel selection	Yes
Automatic channel scanning	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Wireless isolation	Yes
Maximum outdoor range	590551.2" (15000 m)
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Security algorithms	AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
IP address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast, SSID broadcast on/off
IGMP snooping	Yes
Auto Wireless Distribution System (WDS)	Yes
Universal Plug and Play (UPnP)	Yes
Management protocols	TDMA
Web-based management	Yes
Syslog	Yes
Management platform	Pharos Control
Firmware upgradeable	Yes
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes
Power over Ethernet (PoE)	Yes
DC voltage range	16 - 27 V
Power consumption (typical)	13 W
Placement	Pole, Wall
Product color	White
Housing material	Plastic
International Protection (IP) code	IP5X
Reset button	Yes
LED indicators	Yes
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	13 dBi
Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Processor architecture	MIPS 74Kc
Flash memory	8 MB
Internal memory	64 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Certification	- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS
Width	8.83" (224.4 mm)
Depth	3.11" (79 mm)
Height	2.37" (60.3 mm)
Package width	5.2" (132 mm)
Package depth	10.6" (270 mm)
Package height	4.17" (106 mm)
Package weight	25.4 oz (720 g)
Quantity per pack	1 pc(s)
PoE adapter included	Yes
Cables included	AC
Mounting kit	Yes
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
