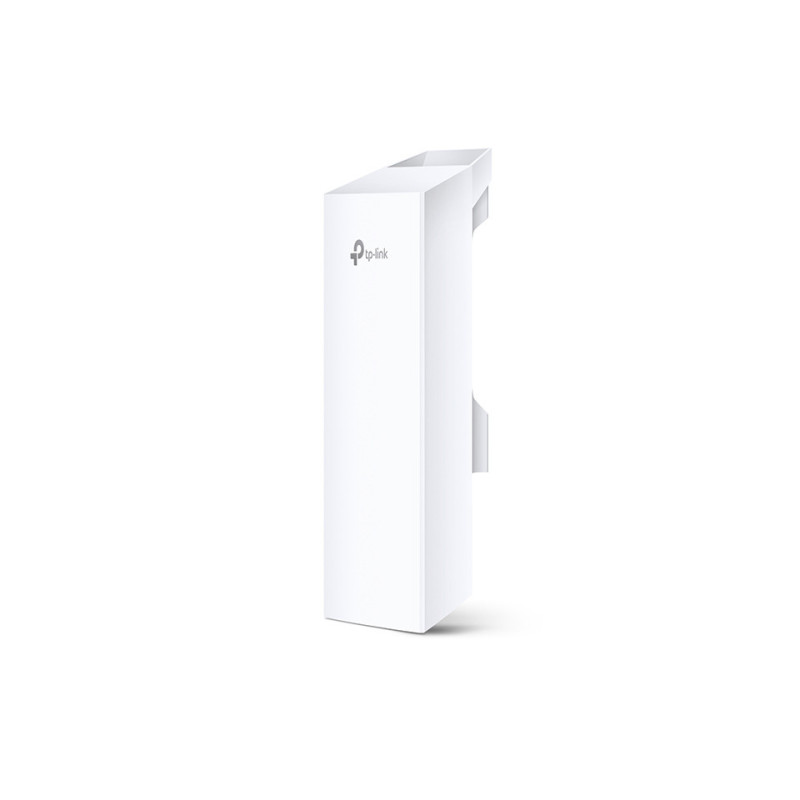

TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Enterprise Hardware

With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).


Advanced Antenna System

Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference

5km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

TP-Link MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System

CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

TP-Link CPE210. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Power over Ethernet (PoE). Product color: White

2.4 GHz	Yes
5 GHz	No
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Frequency band	2.4 - 2.483 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
VLAN support	Yes
Wireless isolation	Yes
Dynamic Frequency Selection (DFS)	Yes
Maximum outdoor range	196850.4" (5000 m)
Security algorithms	AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast, SSID broadcast on/off
IGMP snooping	Yes
Auto Wireless Distribution System (WDS)	Yes
Universal Plug and Play (UPnP)	Yes
Web-based management	Yes
Management platform	Pharos Control
Firmware upgradeable	Yes
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
DC-in jack	Yes
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	24 V
Output current	0.25 A
Placement	Pole
Product color	White
International Protection (IP) code	IPX5
Reset button	Yes
LED indicators	Status
Antenna type	Internal
Antenna direction type	Directional
Antenna gain level (max)	9 dBi
Polarization	Dual polarization
Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Processor architecture	MIPS 74Kc
Flash memory	8 MB
Internal memory	64 MB
Certification	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark CE, FCC, RoHS
Width	8.82" (224 mm)
Depth	3.11" (79 mm)
Height	2.36" (60 mm)
Package width	5.2" (132 mm)
Package depth	10.6" (270 mm)
Package height	4.17" (106 mm)
Package weight	26.8 oz (760 g)
Quantity per pack	1 pc(s)
Cables included	AC
Mounting kit	Yes
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
