WiFi 6, Wait No More

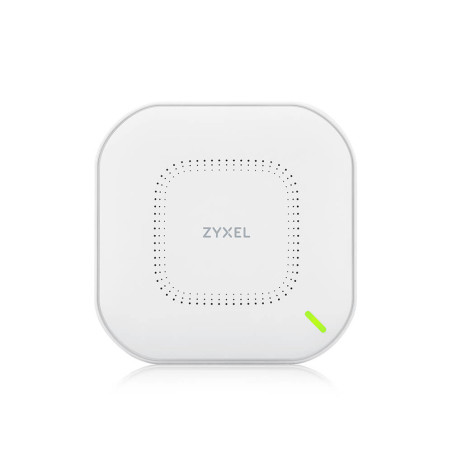

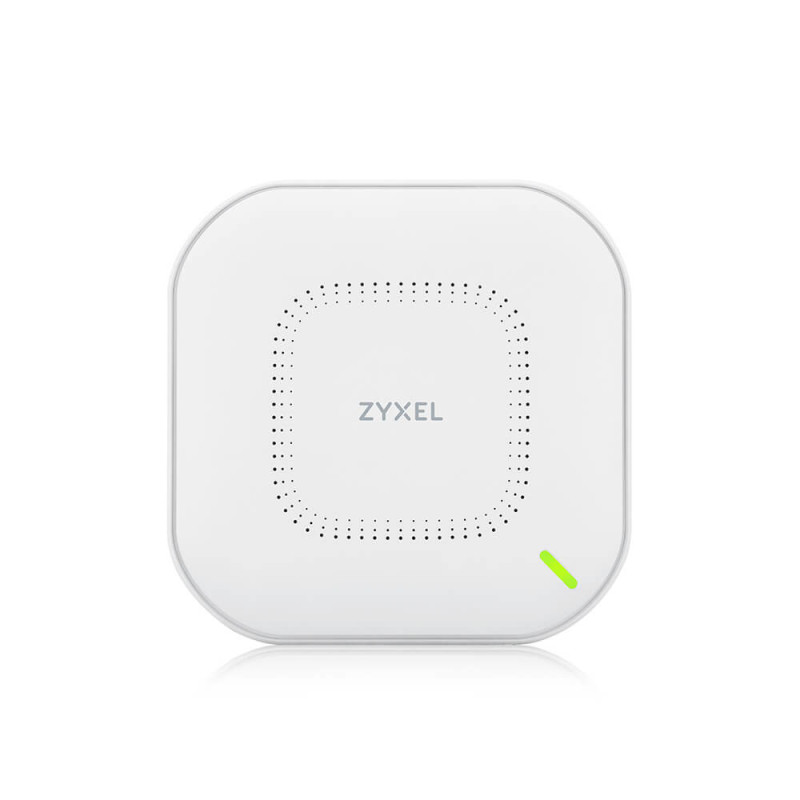

NWA110AX The Best Deal of 11ax Access Point

True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.

Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches

Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.

Zyxel NWA110AX. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1000 Mbit/s. Security algorithms: WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Maximum data transfer rate (2.4 GHz)	575 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 - 2.472, 5.470 - 5.725 GHz
Bandwidth	0.08 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
Fast roaming	Yes
VLAN support	Yes
Virtual LAN features	SSID-based VLAN assignment
Band steering	Yes
Transmitting power	22 dBmW
Receiver sensitivity	Min. Rx sensitivity up to -101 dBm
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3
Routing protocols	IP
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Web-based management	Yes
Command-line interface (CLI)	Yes
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
Power over Ethernet (PoE)	Yes
AC input voltage	5 - 12 V
Input current	1.5 A
Power consumption (typical)	17 W
Placement	Ceiling, Table, Wall
Product color	White
On/off switch	Yes
Reset button	Yes
WPS push button	Yes
LED indicators	Yes
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	6 dBi
Polarization	Dual polarization
Certification	FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1
Width	7.09" (180 mm)
Depth	7.09" (180 mm)
Height	1.54" (39 mm)
Weight	16 oz (453 g)
Package width	9.02" (229 mm)
Package depth	8.5" (216 mm)
Package height	2.52" (64 mm)
Package weight	27.2 oz (770 g)
Quantity per pack	1 pc(s)
AC adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Harmonized System (HS) code	85176990
