High-End Business WiFi 6 to Power Up Your Business
AX5400 Ceiling Mount Wi-Fi 6 Access Point

AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160

Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment§

Seamless Roaming
Uninterrupted streaming when moving between APs§

PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Designed for Business Environments
Requiring High-Performance WiFi

High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

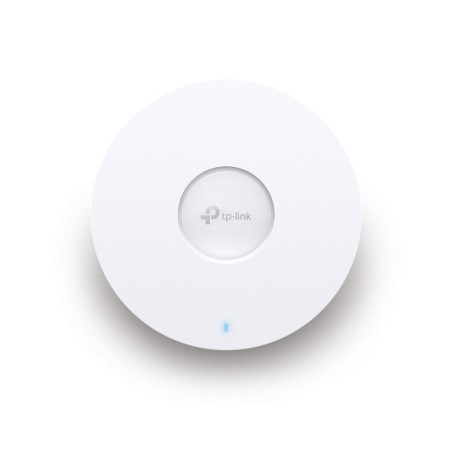

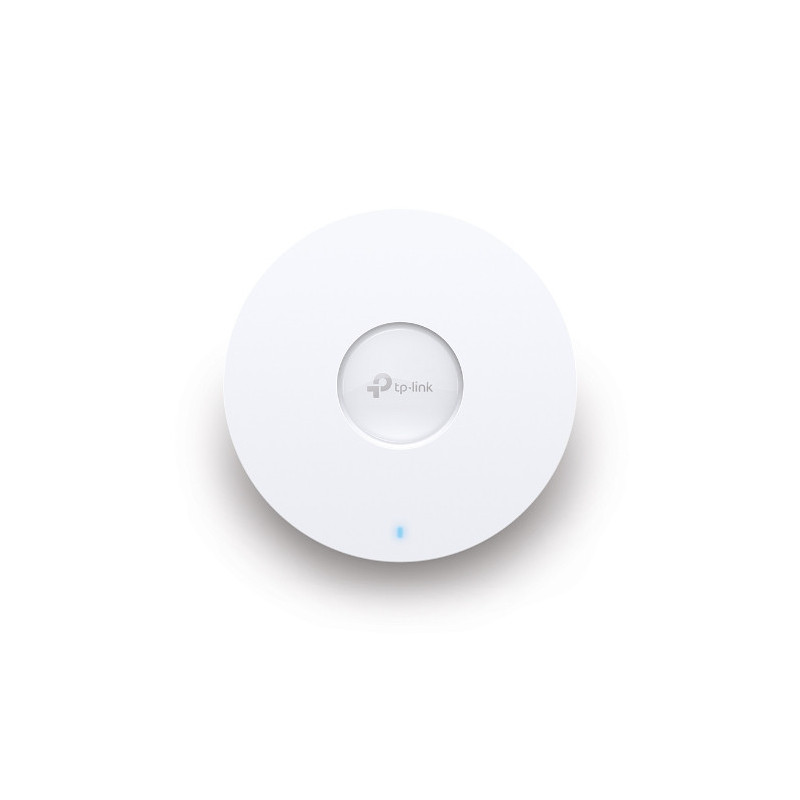

TP-Link Omada EAP670. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5400 Mbit/s, Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product color: White

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	5400 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	4804 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users	250 user(s)
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
VLAN support	No
Rate limiting	Yes
Wireless isolation	Yes
Band steering	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, band1 & band2, EIRP); <30 dBm(5 GHz, band3, EIRP)
Transmitting power (FCC)	<25 dBm (2.4 GHz); <28 dBm (5 GHz)
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes
Web-based management	Yes
Firmware upgradeable	Yes
Power over Ethernet (PoE)	Yes
Input current	1.5 A
Placement	Ceiling, Wall
Product color	White
International Protection (IP) code	IP67
Reset button	Yes
LED indicators	Yes
Antenna type	Internal
Antenna direction type	Omni-directional
Antennas quantity	6
Antenna gain level (max)	5 dBi
Certification	CE, FCC, RoHS
Width	9.57" (243 mm)
Depth	9.57" (243 mm)
Height	2.52" (64 mm)
Package width	11.9" (302 mm)
Package depth	12" (304 mm)
Package height	3.23" (82 mm)
Package weight	2.91 lbs (1.32 kg)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
