Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

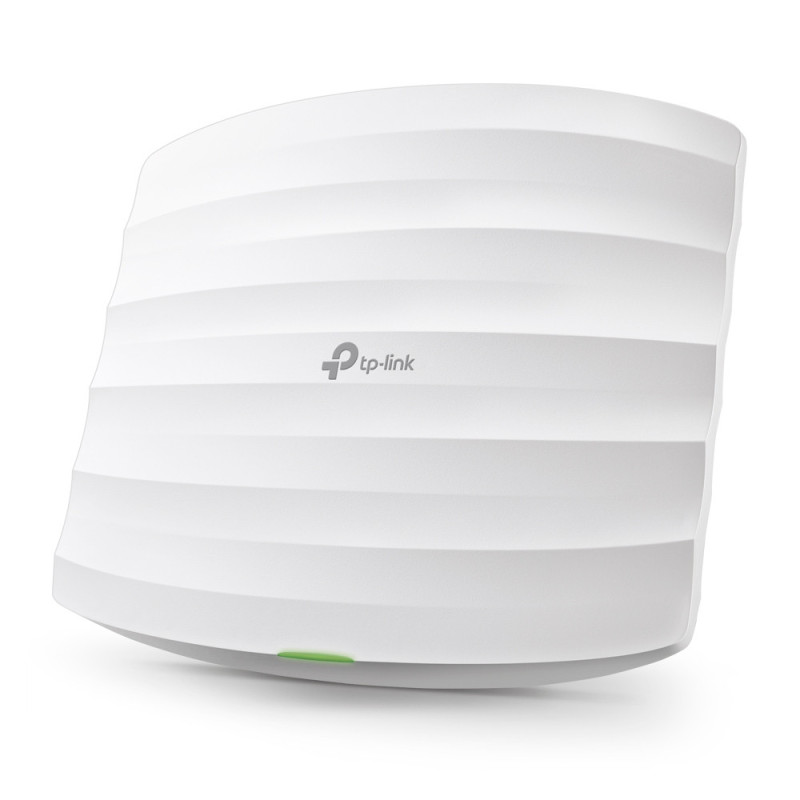

TP-Link Omada EAP225. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1350 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1350 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	VLAN mapping
Rate limiting	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	24 dBm
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Access Control List (ACL)	Yes
Web-based management	Yes
Syslog	Yes
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Yes
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	10.15 W
Placement	Ceiling, Wall
Product color	White
Cable lock slot	Yes
Cable lock slot type	Kensington
On/off switch	Yes
Reset button	Yes
LED indicators	Power, WLAN
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	5
Antenna gain level (max)	5 dBi
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
SIM card slot	No
Width	8.09" (205.5 mm)
Depth	7.15" (181.5 mm)
Height	1.46" (37.1 mm)
Package width	8.98" (228 mm)
Package depth	13.4" (340 mm)
Package height	2.56" (65 mm)
Package weight	32.1 oz (910 g)
Package type	Box
Quantity per pack	1 pc(s)
AC adapter included	Yes
PoE adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
