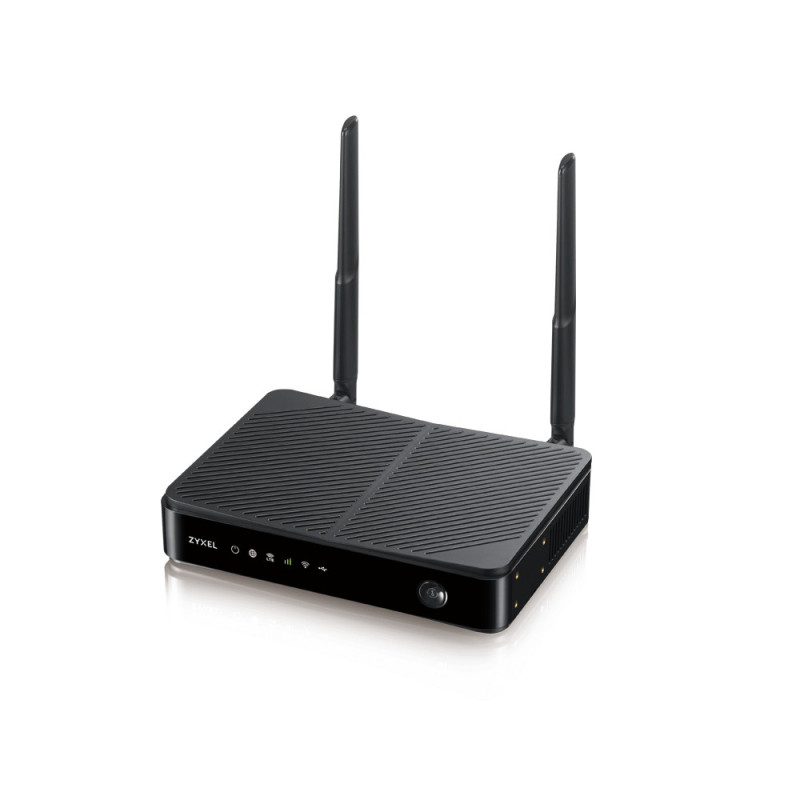

Change the face of your services with the Zyxel LTE3301-PLUS 4G LTE-A Indoor Router. With the support of Cat. 6 and AC1200 dual-band concurrent links, the LTE3301-PLUS creates remarkably positive user experiences with lightning-fast mobile Internet connections of data rates at up to 300/50 Mbps* (downlink/uplink). In order to deliver smooth, stable signals, it’s also compatible with 4G and 3G network connections. The Dual-WAN Failover function offers a failover safety net that keeps subscribers connected and content, which reduces customer complaints and, in turn, lower your CAPEX. The Dual-WAN design delivers fail-safe, reliable broadband Internet access via either mobile WAN or fixed-line WAN for your subscribers.

Fast Internet connectivity

The Zyxel LTE3301-PLUS 4G LTE-A Indoor Router with Cat. 6 delivers the best possible data rates of up to 300/50 Mbps* (DL/UL). In order to get high-speed Internet even in areas with relatively weak signal, the LTE3301-PLUS can be fitted with two external antennas for better connectivity. In order to work with all kinds of devices/gateways and provide seamless integrations with your CPEs on hand, the LTE3301-PLUS also provides both bridge and router modes.

Be flexible, be adaptive

To offer really enjoyable user experiences, the Zyxel LTE3301-PLUS comes with both bridge mode and router mode; this makes it trouble-free to integrate the LTE3301-PLUS into the existing network. The built-in routing functions allow users to take advantage of all typical applications. To work smoothly with the users’ existing or preferred devices such as high-end WiFi access points, small business gateways or enterprise gateways, the LTE3301-PLUS should be switched to the bridge mode.

Give your subscriber maximum mobility

With the Zyxel LTE3301-PLUS 4G LTE-A Indoor Router, you are able to set a flexible, easy-to-deploy wireless network. By providing wireless broadband connectivity and seamless switching capability among 4G LTE, DCHSPA+ and 3G; so your subscribers can freely enjoy Internet surfing anywhere at home, in the office or wherever 4G LTE coverage is available – all without being tethered by wires, and users can easily change the router location according to different situations and needs.

We meet your expectations

As many important applications require uninterrupted data exchange, the Zyxel LTE3301-PLUS supports Dual-WAN Failover, which relieves the risk of network outage due to the single WAN setting, to ensure working connections for your subscribers. To make the users’ online experience more secured, the wireless LTE connectivity allows you to maintain a second WAN option without a cable plan. As long as the gateway supports Dual-WAN Failover, you can just connect the LTE3301-PLUS to an existing gateway and use LTE as the failover WAN.

Zyxel LTE3301-PLUS. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Mobile network generation: 4G, 3G standards: HSPA+, HSUPA, WCDMA, 4G standard: LTE-A. Product type: Tabletop router, Product color: Black

Ethernet WAN	Yes
SIM card slot	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Mobile network generation	4G
3G	Yes
4G	Yes
3G standards	HSPA+, HSUPA, WCDMA
4G standard	LTE-A
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
DC-in jack	Yes
Reset button	Yes
WPS push button	Yes
Firewall	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
DHCP client	Yes
DHCP server	Yes
Product type	Tabletop router
Product color	Black
Indication light	Yes
On/off switch	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Warranty card	Yes
Quick start guide	Yes
Antenna design	External
Antenna gain level (max)	5 dBi
Antennas quantity	2
Power source type	DC
AC input voltage	110 - 240 V
Power consumption (typical)	18 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	8.27" (210 mm)
Depth	4.53" (115 mm)
Height	1.3" (33 mm)
Weight	17.6 oz (500 g)
Harmonized System (HS) code	85176990
Country of origin	China
Master (outer) case width	14.3" (363 mm)
Master (outer) case length	23.5" (597 mm)
Master (outer) case height	10.7" (273 mm)
Master (outer) case weight	28.7 lbs (13 kg)
Quantity per master (outer) case	12 pc(s)
