Highlights at a glance

- Expands the home network using your home's wiring;
- Powerline with up to 1200 Mbit/s, securely encrypted;
- Immediately ready for operation at every outlet without any software installation;
- 2 x gigabit LAN for connecting Smart TV, Set-top box, Blu-ray, NAS, sound system, gaming console and others to the FRITZ!Box and the Internet;
- Eco: Especially energy-efficient during operation and economical on standby;
- Secure upon delivery with 128-bit AES encryption;
- Network additional adapters simply and securely at the push of a button;
- With integrated outlet – no plug space is lost;
- Available as a set (2 x FRITZ!Powerline 1220E).

Fast data transport over the power lines
Why lay cables when you can send your data over the electrical wiring? FRITZ!Powerline 1220E turns every outlet in your home into a data freeway: Even large data packages race securely through the home network at speeds of up to 1200 Mbit/s.

Increased range for the network
The advanced powerline technology further provides for better coverage in your home network. Outlets on the margins of the reception area especially benefit from the high, stable transmission power.

Versatile deployment
Connect your home network players with FRITZ!Powerline 1220E: Aside from PC, smartphone, printer, gaming console and stereo, you can also provide big data applications like network storages, Internet TV or 3D video streaming with fast broadband connections without sacrificing a power outlet.

Simple setup
FRITZ!Powerline is immediately ready for operation without any software installation. Simply insert the adapter into an outlet and connect it to a network device via LAN cable. Now your network is all set and perfectly secure due to the encryption upon delivery.

Flexible thanks to downward compatibility
Naturally, FRITZ!Powerline 1220E is compatible with products compliant with older powerline standards. You can even use FRITZ!Powerline with 200 Mbit/s or 500 Mbit/s models to expand the boundaries of your home network.

More power – less consumption
FRITZ!Powerline 1220E is more powerful than previous FRITZ!Powerline models, but still offers the same low power consumption. Thanks to the smart energy-saving function, FRITZ!Powerline automatically switches to standby when no data are transmitted.

High speed for your home network
Enjoy lightning-fast data transmissions and stable network connections in your home network. FRITZ!Powerline transmits your data over the electrical wiring at up to 1200 Mbit/s to every outlet in your home.

Integrated power outlet
Thanks to the one integrated into your FRITZ!Powerline, you don’t lose any power outlets in any of your rooms. All power outlets used for FRITZ!Powerline adapters remain available to provide electricity to other devices.

Optimum connectivity with gigabit LAN
The integrated gigabit LAN port enables high-speed connectivity for your home network. Perfect for connecting network storage devices, smart TVs, and games consoles without the need for any new cables in your home.

Simple setup
You barely have to lift a finger to set up your FRITZ!Powerline. Plug in, connect – ready. Without needing to install any software, you soon get a fast and stable network that you can quickly and easily extend with additional adapters.

Convenient user interface
The FRITZ!Powerline software allows easy configuration of all parameters and presents an overview of the adapters used as well as the available sending and receiving rates. The settings can also be configured in the FRITZ!Box user interface.

Optimum protection
Security comes first. That applies to the FRITZ!Powerline adapters too. The ex works 128-bit AES encryption provides maximum security. The encryption settings can also be transferred to any new FRITZ!Powerline adapters, which can be connected to the network at the push of a button.

Energy-saving operation
The integrated chipset helps you to save energy. The FRITZ!Powerline consumes less than one watt in standby mode, which it automatically switches to if no data is being transmitted.

Network filter for stable connectivity
Data prioritization ensures you always enjoy optimum dataflow and high quality. The integrated network filter minimizes the impact of high-frequency interference caused by connected appliances, ensuring a stable powerline communication connection.

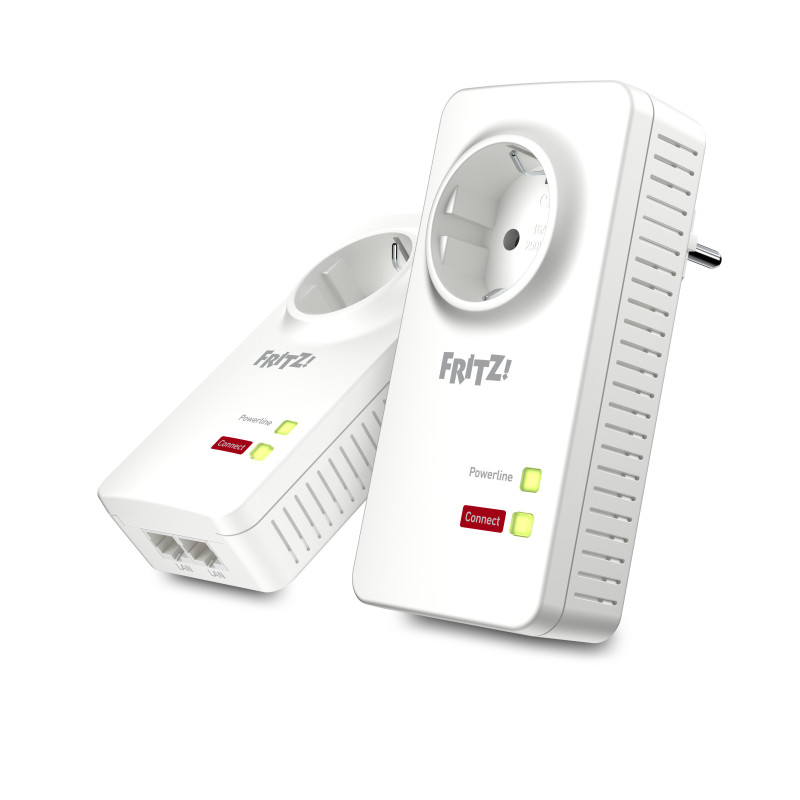

FRITZ!Powerline 1220 Set INT. Maximum data transfer rate: 1200 Mbit/s, Power plug: Type F, Ethernet LAN interface type: Gigabit Ethernet. Power consumption (typical): 3 W, Power consumption (standby): 1 W, AC input voltage: 230 V. Product color: White, LED indicators: LAN, Power. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,.... Width: 2.32" (59 mm), Depth: 1.61" (41 mm), Height: 5.2" (132 mm)

Maximum data transfer rate	1200 Mbit/s
Ethernet LAN	Yes
Wi-Fi	No
Power plug	Type F
Built-in power socket	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Ethernet LAN (RJ-45) ports	2
PowerLine standard	HomePlug AV2
Security algorithms	128-bit AES
Quality of Service (QoS) support	Yes
Power consumption (typical)	3 W
Power consumption (standby)	1 W
AC input voltage	230 V
AC input frequency	50 Hz
Product color	White
LED indicators	LAN, Power
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional
Width	2.32" (59 mm)
Depth	1.61" (41 mm)
Height	5.2" (132 mm)
Weight	7.76 oz (220 g)
Package type	Box
Quantity per pack	2 pc(s)
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85171800
