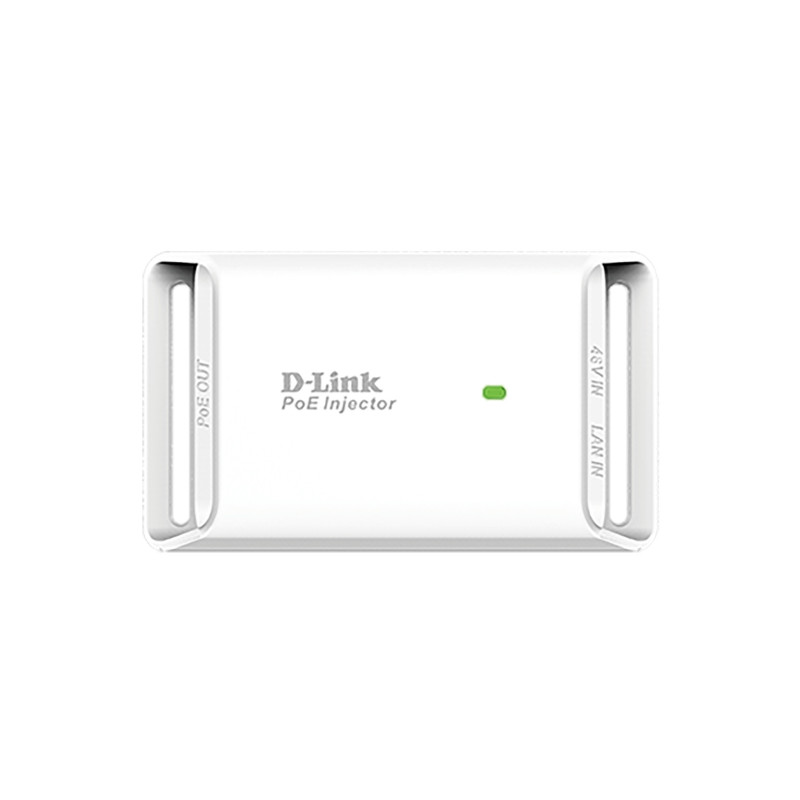

The DPE-101GI Gigabit PoE Injector is designed to supply a power and data connection to PoE devices such as an IP Camera or Wireless Access Point. The IEEE 802.3af compliant DPE-101GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet and attached power supply. D-Link’s DPE-101GI combines electrical power with a Gigabit network connection and produces a Gigabit Power over Ethernet (PoE) signal, allowing a single Ethernet cable to carry both data and power to a device.

Cost Efficient Flexibility Deploying the DPE-101GI saves both installation costs and equipment costs, allowing a single RJ-45 Ethernet cable to carry both power and data to each device. This reduces cables, eliminates the need for dedicated electrical outlets on the wall, ceiling, or other unreachable place, and most of all, reduces installation time. The Power over Ethernet solution frees IP surveillance cameras and wireless AP deployments from the restrictions of power outlet locations.

High Speed Connectivity The DPE-101GI Gigabit PoE Injector is designed to be deployed in situations where high bandwidth is demanded. Examples where the DPE-101GI is ideal include powering network devices such as wall mounted PTZ (Pan, Tilt & Zoom) network cameras, ceiling mounted PTZ dome network cameras, video and voice over IP (VoIP) telephones, and wireless LAN access points.

D-Link DPE-101GI. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product color: White, Maximum operating distance: 3937" (100 m). Output current: 0.4 A, Power consumption (max): 19.2 W. Certification: CE FCC VCCI C-Tick IC. Width: 2.45" (62.2 mm), Depth: 4.32" (109.8 mm), Height: 0.965" (24.5 mm)

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Product color	White
Wall mountable	Yes
Easy to install	Yes
Plug and Play	Yes
Maximum operating distance	3937" (100 m)
LED indicators	Yes
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Output current	0.4 A
Power consumption (max)	19.2 W
Certification	CE FCC VCCI C-Tick IC
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Width	2.45" (62.2 mm)
Depth	4.32" (109.8 mm)
Height	0.965" (24.5 mm)
Weight	2.29 oz (65 g)
Number of products included	1 pc(s)
Package width	6.02" (153 mm)
Package depth	8.39" (213 mm)
Package height	2.68" (68 mm)
Package weight	14.8 oz (420 g)
Shipping (inner) case length	12.8" (32.6 cm)
Shipping (inner) case width	9.17" (23.3 cm)
Shipping (inner) case height	14.2" (36 cm)
Shipping (inner) case net weight	9.39 lbs (4.26 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	697.5 lbs (316.4 kg)
Number of cartons per pallet (air)	60 pc(s)
Quantity per pallet (air)	600 pc(s)
Pallet length	47.2" (120 cm)
Pallet width	43.3" (110 cm)
Pallet height (air)	76.4" (194 cm)
Pallet gross weight (sea)	697.5 lbs (316.4 kg)
Number of cartons per pallet (sea)	60 pc(s)
Quantity per pallet (sea)	600 pc(s)
Pallet height (sea)	76.4" (194 cm)
Shipping (inner) case weight	10.9 lbs (4.94 kg)
Harmonized System (HS) code	85044095
