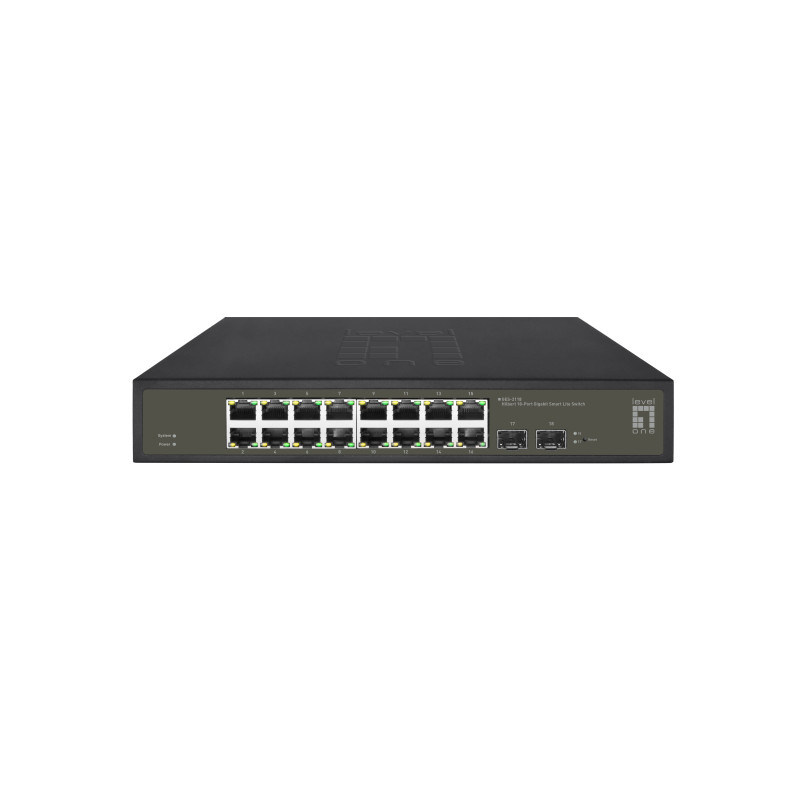

The LevelOne GES-2118 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2118 delivers 16 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2118 provides high HW performance and environment flexibility for Enterprises. GES-2118 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.


LevelOne GES-2118. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Rack mounting

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	16
SFP module slots quantity	2
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Number of VLANs	32
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
IGMP snooping	Yes
Multicast support	Yes
Rack mounting	Yes
Product color	Black
LED indicators	Activity, Link, Power
Flash memory	2 MB
Noise level	0 dB
Fanless	Yes
Mean time between failures (MTBF)	43800 h
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	15 W
Surge protection	Yes
Surge protection voltage	8 kV
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	51.18 BTU/h
Width	10.7" (271 mm)
Depth	7.15" (181.5 mm)
Height	1.75" (44.5 mm)
Weight	2.38 lbs (1.08 kg)
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes
Package type	Box
Package width	13.8" (350 mm)
Package depth	10.5" (267 mm)
Package height	3.5" (89 mm)
Package weight	3.7 lbs (1.68 kg)
Number of cartons per pallet (air)	12 pc(s)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	71.8" (182.4 cm)
Compliance certificates	CE, RoHS
Certification	UKCA, FCC Class A
Master (outer) case net weight	2.2 lbs (1 kg)
Country of origin	China
Master (outer) case width	18.9" (480 mm)
Master (outer) case length	14.6" (370 mm)
Master (outer) case height	22" (560 mm)
Master (outer) case weight	39.2 lbs (17.8 kg)
Quantity per master (outer) case	10 pc(s)
Sustainability compliance	Yes
