What This Product Does

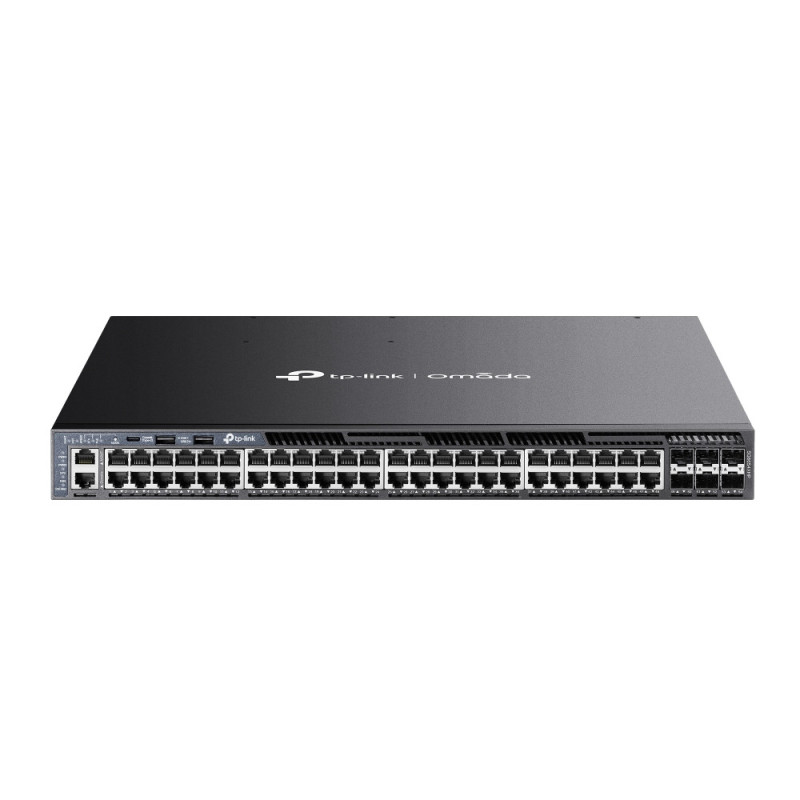

Omada SG6654XHP, an advanced L3 managed PoE+ switch, is crafted for convergence layer requirements with features like L3 routing, rapid 10 Gbps wired connectivity, stacking, and redundant power supplies. It offers an impressive 1440 W PoE budget,* 48× gigabit RJ45 PoE+ ports, 6× 10 Gbps SFP+ slots, and physical stacking. Combined with centralized management, strong security, and comprehensive management features, SG6654XHP is an ideal, reliable network solution for SMBs, enterprises, and ISPs.

IEEE 802.3at/af-compliant Power over Ethernet
48× IEEE 802.3at/af-compliant PoE ports supply up to 1440 W total power to 802.3at and 802.3af devices,* with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.

High-speed Connectivity and Powerful Stacking
48 gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available
Optional field-replaceable and hot-swappable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture.** ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).‡ The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG6654XHP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

TP-Link Omada SG6654XHP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 2, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	6
Console port	RJ-45/USB Type-C
USB 2.0 ports quantity	2
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
10G support	No
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Number of VLANs	4000
MAC address table	32000 entries
Switching capacity	216 Gbit/s
Forwarding rate	160.7 Mpps
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	3 MB
DHCP features	DHCP relay, DHCP snooping, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
IGMP entries	2048
SSH/SSL support	Yes
Loop protection	Yes
Authentication	Auto VLAN, MAC-based authentication, Port-based authentication
Authentication type	RADIUS
Multicast support	Yes
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product color	Black
LED indicators	Yes
Number of fans	4 fan(s)
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	1767.7 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	1440 W
Operating temperature (T-T)	-5 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	6027.86 BTU/h
Width	17.3" (440 mm)
Depth	16.5" (420 mm)
Height	1.73" (44 mm)
Cables included	AC, LAN (RJ-45)
Manual	Yes
