What This Product Does

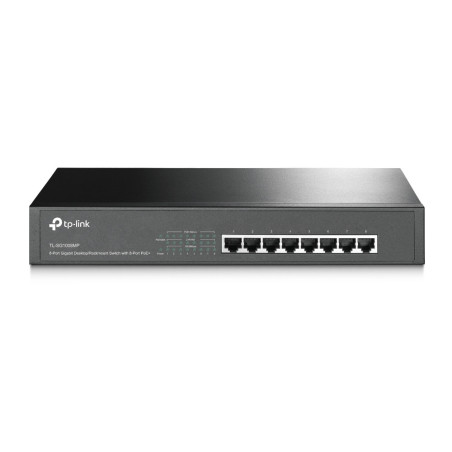

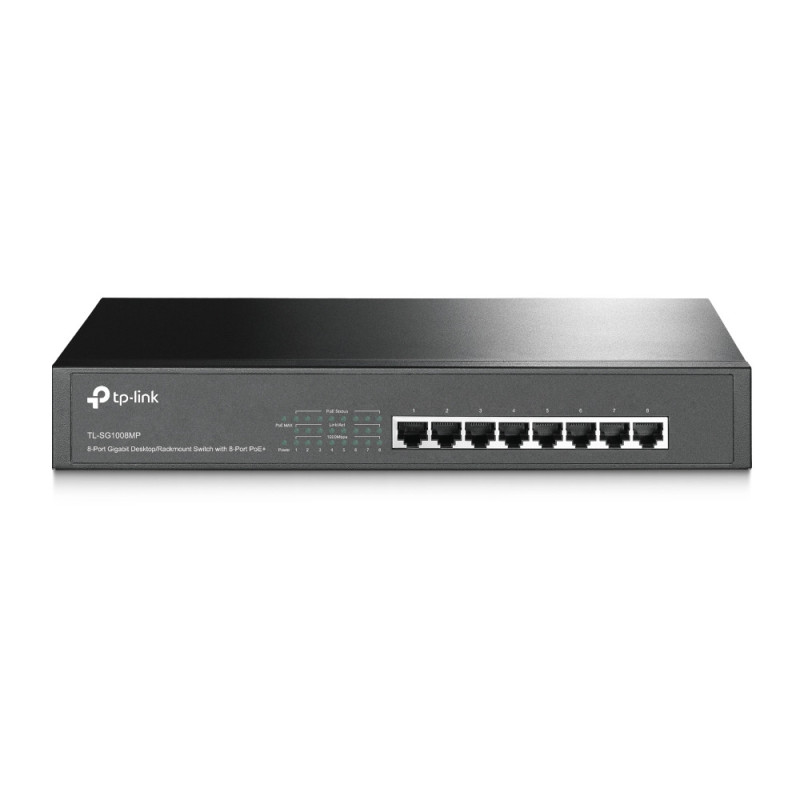

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

TP-Link TL-SG1008MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Packet buffer memory	1.5 MB
Rack mounting	Yes
Product color	Black
Number of fans	1 fan(s)
Mean time between failures (MTBF)	1 h
MTBF (PoE)	1 h
Commodity Classification Automated Tracking System (CCATS)	11
Minimum system requirements	1
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140.1 W
Power consumption (max)	144.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	492.6 BTU/h
Width	11.6" (294 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Cables included	AC
User guide	Yes
Rack mount kit	Yes
Shipping (inner) case height	0.0394" (1 mm)
Shipping (inner) case width	0.0394" (1 mm)
Shipping (inner) case length	0.0394" (1 mm)
Shipping (inner) case net weight	0.0353 oz (1 g)
Quantity per shipping (inner) case	1 pc(s)
Number of cartons per pallet layer	1 pc(s)
Number of layers per pallet (air)	1 pc(s)
Number of layers per pallet (sea)	1 pc(s)
Pallet gross weight (air)	0.0353 oz (1 g)
Number of cartons per pallet (air)	11 pc(s)
Quantity per pallet (air)	1 pc(s)
Pallet length	0.0394" (1 mm)
Pallet width	0.0394" (1 mm)
Pallet height (air)	0.0394" (1 mm)
Pallet gross weight (sea)	0.0353 oz (1 g)
Number of cartons per pallet (sea)	1 pc(s)
Quantity per pallet (sea)	11 pc(s)
Pallet height (sea)	0.0394" (1 mm)
Shipping (inner) case weight	0.0353 oz (1 g)
Certification	FCC, CE, RoHS
Harmonized System (HS) code	85176990
