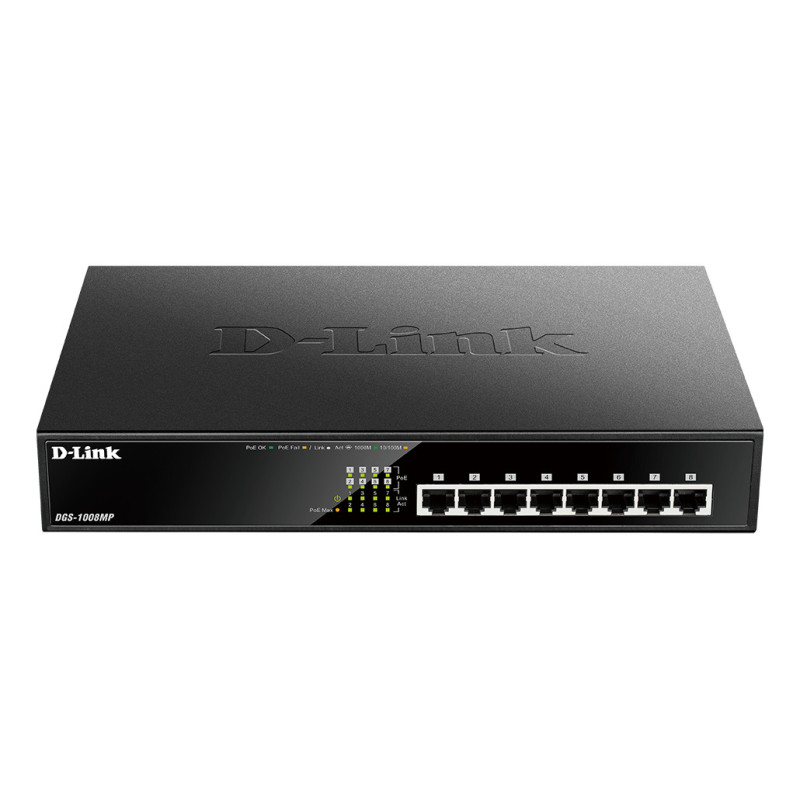

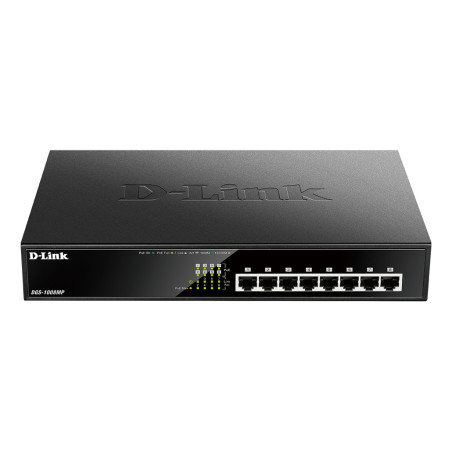

Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.

D-Link DGS-1008MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Networking standards	IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Auto MDI/MDI-X	Yes
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Packet forwarding rate (1 Gbps)	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	1488000 pps
Packet buffer memory	0.192 MB
Rack mounting	Yes
Form factor	1U
Product color	Black
LED indicators	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	13.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	140 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	11" (280 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Weight	4.06 lbs (1.84 kg)
Package width	10.3" (262 mm)
Package depth	15.4" (391 mm)
Package height	4.02" (102 mm)
Package weight	6.28 lbs (2.85 kg)
Shipping (inner) case height	11.2" (28.5 cm)
Shipping (inner) case width	16" (40.6 cm)
Shipping (inner) case length	21.5" (54.5 cm)
Shipping (inner) case net weight	31.3 lbs (14.2 kg)
Quantity per shipping (inner) case	5 pc(s)
Pallet gross weight (air)	1243 lbs (563.8 kg)
Number of cartons per pallet (air)	36 pc(s)
Quantity per pallet (air)	180 pc(s)
Pallet length	43.3" (110 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	76.2" (193.5 cm)
Pallet gross weight (sea)	1243 lbs (563.8 kg)
Number of cartons per pallet (sea)	36 pc(s)
Quantity per pallet (sea)	180 pc(s)
Pallet height (sea)	76.2" (193.5 cm)
Shipping (inner) case weight	33.7 lbs (15.3 kg)
Harmonized System (HS) code	85176990
