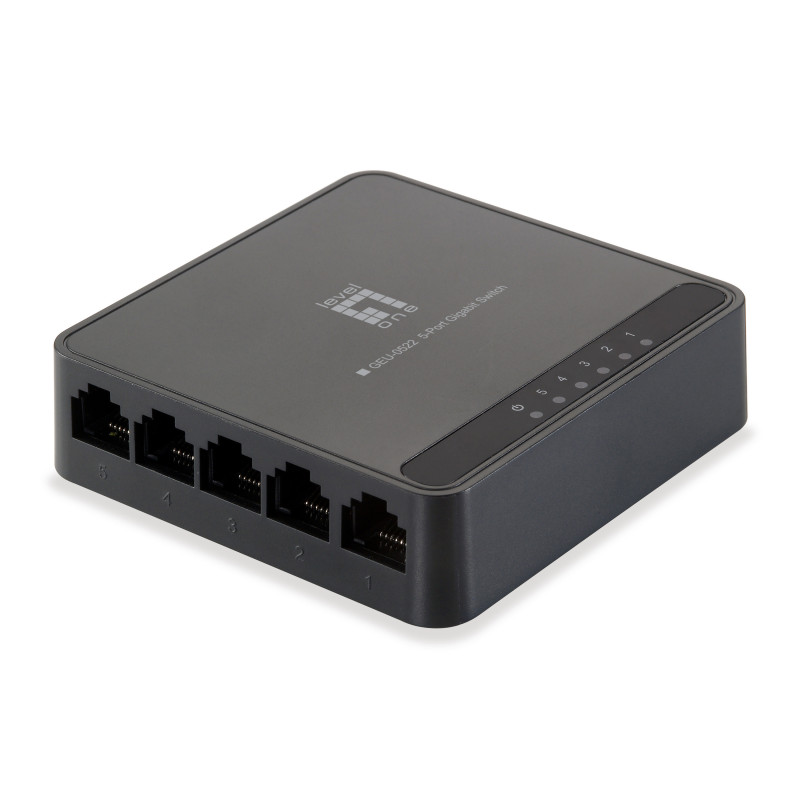

The LevelOne GEU-0522 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.

LevelOne GEU-0522. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
MAC address table	1000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488100 pps
Packet forwarding rate (100 Mbps)	148810 pps
Packet forwarding rate (10 Mbps)	14880 pps
Stackable	No
Product color	Black
LED indicators	Activity, Link, Power
Buffer size	64 KB
Input current	0.6 A
Input voltage	5 V
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	3.39" (86 mm)
Depth	0.906" (23 mm)
Height	3.5" (89 mm)
Weight	2.52 oz (71.4 g)
Quick start guide	Yes
AC adapter included	Yes
Package type	Box
Package width	3.74" (95 mm)
Package depth	3.23" (82 mm)
Package height	3.86" (98 mm)
Package weight	6.49 oz (184 g)
Certification	CE, FCC
Country of origin	China
Master (outer) case width	19.5" (495 mm)
Master (outer) case length	7.52" (191 mm)
Master (outer) case height	20.3" (516 mm)
Harmonized System (HS) code	85176990
Master (outer) case weight	22.5 lbs (10.2 kg)
Quantity per master (outer) case	50 pc(s)
