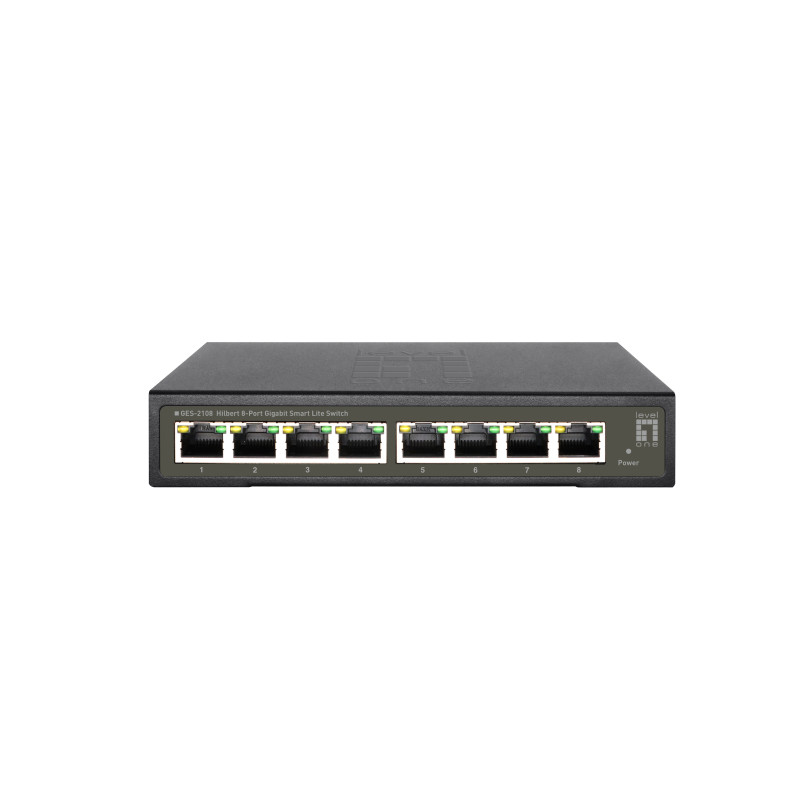

The LevelOne GES-2108 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. GES-2108 delivers 8 (10M/100M/1G) RJ45 ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2108 provides high HW performance and environment flexibility for Enterprises. GES-2108 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.


LevelOne GES-2108. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Number of VLANs	32
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	1.5 MB
IGMP snooping	Yes
Multicast support	Yes
Rack mounting	No
Product color	Black
LED indicators	Link, Power
Flash memory	2 MB
Noise level	0 dB
Fanless	Yes
Mean time between failures (MTBF)	43800 h
Power source	DC
Power supply included	Yes
DC input voltage	12 V
Input current	1 A
Power consumption (max)	6 W
Surge protection	Yes
Surge protection voltage	8 kV
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	20.4 BTU/h
Width	6.3" (160 mm)
Depth	3.74" (95 mm)
Height	1.14" (29 mm)
Weight	12.3 oz (350 g)
Quick start guide	Yes
AC adapter included	Yes
Package type	Box
Package width	10.4" (264 mm)
Package depth	4.8" (122 mm)
Package height	2.05" (52 mm)
Package weight	17.6 oz (500 g)
Number of cartons per pallet (air)	16 pc(s)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	67.1" (170.4 cm)
Compliance certificates	CE, RoHS
Master (outer) case net weight	24.7 oz (700 g)
Country of origin	China
Master (outer) case width	21.7" (550 mm)
Master (outer) case length	13" (330 mm)
Master (outer) case height	15.4" (390 mm)
Master (outer) case weight	41.2 lbs (18.7 kg)
Quantity per master (outer) case	36 pc(s)
Sustainability compliance	Yes
