- Plug and Play operation
- 8 Gigabit Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- Cable diagnostics function to detect faulty network cables
- D-Link Green™ technology, saves energy and increases the product’s lifespan

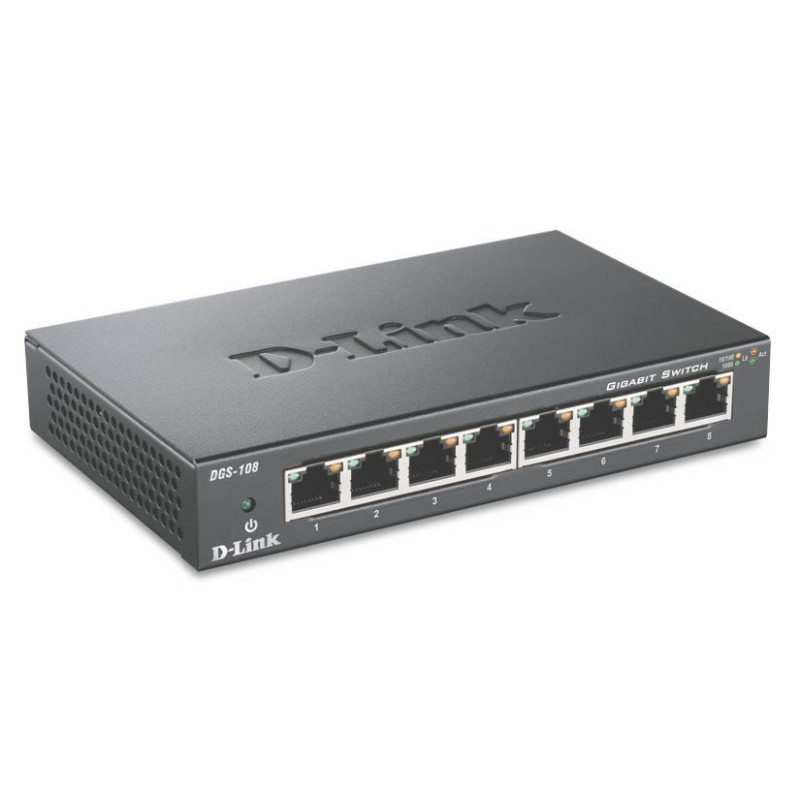

D-Link’s DGS-108 Gigabit Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Gigabit Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DGS-108 completely silent, ideal for offices, libraries or meeting rooms.

Robust design

The DGS-108 is designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status and speed, helping to troubleshoot connectivity problems. For a convenient placement, the DGS-108 comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DGS-108 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Cable diagnostics function

The cable diagnostics function enables users to quickly troubleshoot faulty network cables that may lead to transmission errors. At startup, the switch performs a micro-test to assess the quality of the cables connected to its ports. If a fault is detected, the ambar LED will lit up. If the cables pass the test, the green LED will be illuminated, indicating that the network is error-free. This feature can save valuable time when trying to single out a faulty cable that causes problems in the whole network.

Power-saving technology

The DGS-108 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. Additionally, the Green Ethernet™ technology in the DGS-108 can detect the length of the network cables connected to its ports and provide only the right amount of energy required. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

D-Link DGS-108. Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
Store-and-forward	Yes
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	0.128 MB
MAC address filtering	Yes
Rack mounting	No
Product color	Black
Housing material	Metal
LED indicators	Link, Power
Mean time between failures (MTBF)	2053751 h
Input current	1 A
Input voltage	5 V
Power consumption (typical)	2.8 W
Data transfer rate	2000 Mbit/s
Dimensions (WxDxH)	6.38 x 4.02 x 1.1" (162 x 102 x 28 mm)
Connectivity technology	Wired
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight	15.5 oz (440 g)
Included power plug types	EU
Package width	8.19" (208 mm)
Package depth	9.84" (250 mm)
Package height	2.68" (68 mm)
Package weight	23.1 oz (654 g)
Shipping (inner) case height	17.4" (44.3 cm)
Shipping (inner) case width	10.2" (26 cm)
Shipping (inner) case length	14.6" (37 cm)
Shipping (inner) case net weight	15.7 lbs (7.1 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	879.4 lbs (398.9 kg)
Number of cartons per pallet (air)	48 pc(s)
Quantity per pallet (air)	480 pc(s)
Pallet length	43.3" (110 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	77.4" (196.7 cm)
Pallet gross weight (sea)	879.4 lbs (398.9 kg)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per pallet (sea)	480 pc(s)
Pallet height (sea)	77.4" (196.7 cm)
Shipping (inner) case weight	17.2 lbs (7.79 kg)
Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Harmonized System (HS) code	85176990
