The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Upgrade to Gigabit Networking

With data transfer speeds of up to 2000 Mbps at full-duplex, this switch is ideal for quick file transfers, online gaming, and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you are ready to go.

Conserve Energy

The GO-SW-16G/24G supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimises power usage for each port based on the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The GO-SW-16G/24G is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

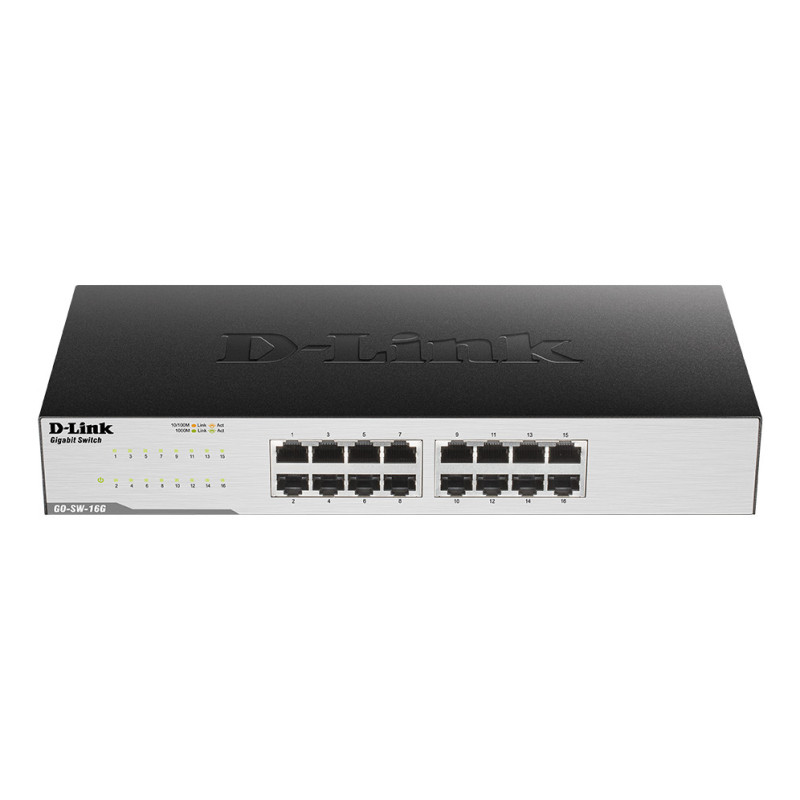

D-Link GO-SW-16G. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack. Rack mounting, Form factor: 1U

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	16
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
Store-and-forward	Yes
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	0.512 MB
Rack mounting	Yes
Form factor	1U
Product color	Black
Housing material	Metal
LED indicators	Yes
Number of fans	0 fan(s)
Mean time between failures (MTBF)	305171 h
Power supply included	Yes
Redundant power supply (RPS) support	No
Number of power supply units	1
DC input voltage	12 V
Input current	1 A
Power consumption (max)	11.7 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	39.92 BTU/h
Width	11" (280 mm)
Depth	4.96" (126 mm)
Height	1.73" (44 mm)
Weight	30.7 oz (870 g)
Package width	7.09" (180 mm)
Package depth	12.9" (328 mm)
Package height	4.25" (108 mm)
Package weight	3.2 lbs (1.45 kg)
Shipping (inner) case height	15.1" (38.4 cm)
Shipping (inner) case width	13.4" (34 cm)
Shipping (inner) case length	22.4" (56.9 cm)
Shipping (inner) case net weight	33.1 lbs (15 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	1083.6 lbs (491.5 kg)
Number of cartons per pallet (air)	30 pc(s)
Quantity per pallet (air)	300 pc(s)
Pallet length	43.3" (110 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	81.1" (2.06 m)
Pallet gross weight (sea)	1083.6 lbs (491.5 kg)
Number of cartons per pallet (sea)	30 pc(s)
Quantity per pallet (sea)	300 pc(s)
Pallet height (sea)	81.1" (2.06 m)
Shipping (inner) case weight	34.4 lbs (15.6 kg)
Certification	CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC
Harmonized System (HS) code	85176990
