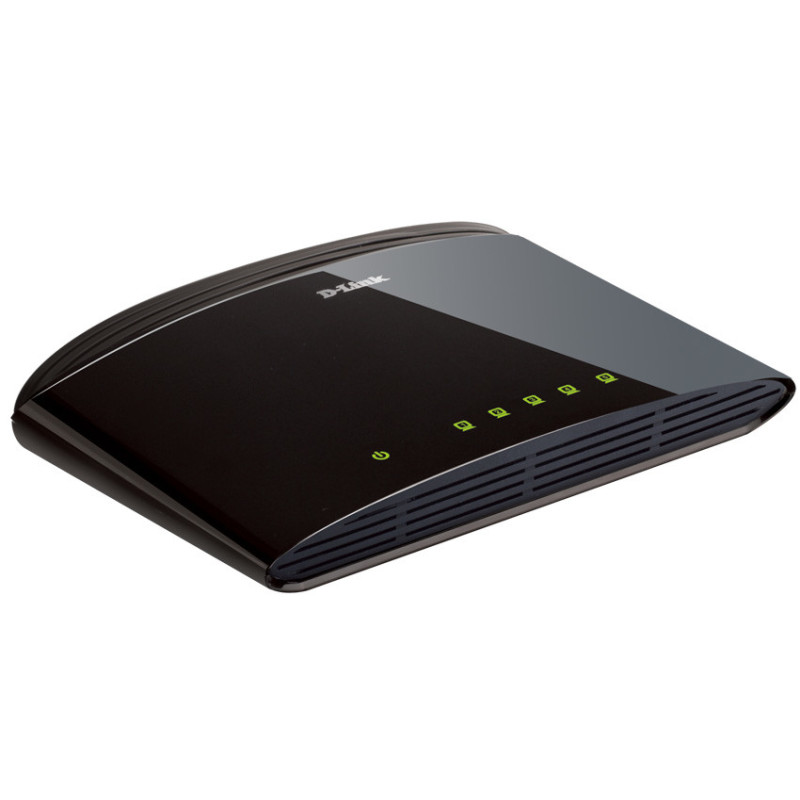

D-Link's DES-1005D is a powerful 5 port 10/100Mbps desktop switch that is an ideal choice for small workgroups.

The DES-1005D allows users to simply plug any port to either a 10Mbps Ethernet or 100Mbps Fast Ethernet network for compatibility, convenience, and faster connection. The switch comes in a small compact size designed for easy installation and high performance. The DES-1005D eliminates unnecessary traffic and relieves data congestion by delivering dedicated bandwidth for each of the five ports.

Each port on the DES-1005D supports automatic MDI/MDIX detection providing true 'plug and play' capability without the need for confusing crossover cables or crossover ports. With the media auto-sensing feature, plug in the network cable to the DES-1005D directly without the need to worry if the end node is a NIC (Network Interface Card) or switch/hub. The DES-1005D also supports flow control and auto-negotiation of half or full duplex transfer modes for each port.

The DES-1005D provides dynamic memory allocation for data flow control to guarantee against possible packet loss. The DSS-5+ uses fast store-and-forward switching to ensure low data latency and prevents error packages from transmitting among segments.

Auto-sensing 10/100 ports
The DES-1005D uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

Auto MDI/MDIX CrossOver
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.

D-Link DES-1005D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	100Base-TX, 10Base-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address table	2000 entries
Switching capacity	1 Gbit/s
Supported data transfer rates	10/20/100/200 Mb/s
Forwarding rate	0.1488 Mpps
Store-and-forward	Yes
Maximum data transfer rate	0.2 Gbit/s
Packet buffer memory	0.046875 MB
Rack mounting	No
Stackable	No
Product color	Black
LED indicators	LAN, Power
Plug and Play	Yes
Power consumption (typical)	2.5 W
Power over Ethernet (PoE)	No
Packet transfer speed	14880 - 148800 p/s
Power LED	Yes
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	8.528 BTU/h
Width	4.93" (125.3 mm)
Depth	3.28" (83.4 mm)
Height	1.15" (29.1 mm)
Cables included	AC
User guide	Yes
Manual	Yes
Package width	2.56" (65 mm)
Package depth	4.13" (105 mm)
Package height	3.86" (98 mm)
Package weight	6 oz (170 g)
Shipping (inner) case height	9.06" (23 cm)
Shipping (inner) case width	13.8" (35 cm)
Shipping (inner) case length	20.3" (51.5 cm)
Shipping (inner) case net weight	18.7 lbs (8.5 kg)
Quantity per shipping (inner) case	50 pc(s)
Pallet gross weight (air)	1025.6 lbs (465.2 kg)
Number of cartons per pallet (air)	48 pc(s)
Quantity per pallet (air)	2400 pc(s)
Pallet length	43.3" (110 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	77.8" (197.5 cm)
Pallet gross weight (sea)	1025.6 lbs (465.2 kg)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per pallet (sea)	2400 pc(s)
Pallet height (sea)	77.8" (197.5 cm)
Shipping (inner) case weight	20.4 lbs (9.25 kg)
Certification	RoHS, FCC, CE
Harmonized System (HS) code	85176990
