Easily Expand Your Gigabit Network and Save Energy

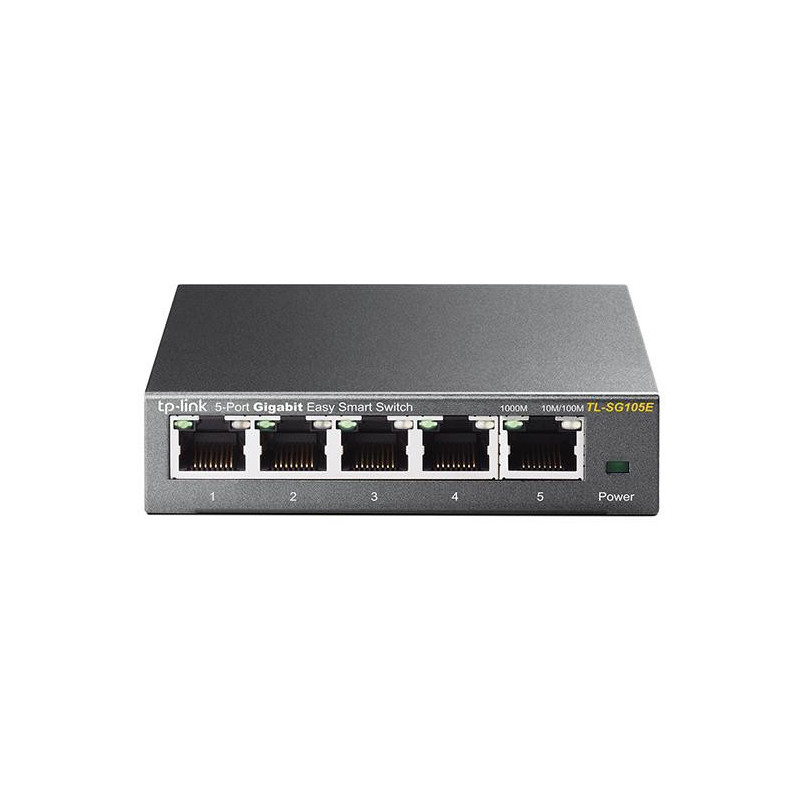

5-Port Gigabit Easy Smart Switch

Link Your Devices, Create Convenient Business
The 5-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.

Gigabit Ports for Maximum Speed
5 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.

More Features,More Choices

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups

Management Made Easy
TL-SG105E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Durable Metal Casing
The interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on.

Go Green with Your Ethernet
TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

TP-Link TL-SG105E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	32
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	16000
Packet buffer memory	1 MB
IGMP snooping	Yes
Product color	Black
LED indicators	Yes
Compatible operating systems	Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
Power source	DC
Power supply included	Yes
Input current	0.6 A
Input voltage	5 V
Power consumption (max)	2.82 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	9.07 BTU/h
Width	3.94" (100 mm)
Depth	3.86" (98 mm)
Height	0.984" (25 mm)
Cables included	AC
Quick start guide	Yes
User guide	Yes
Rack mount kit	Yes
Package type	Box
Package width	4.92" (125 mm)
Package depth	5.04" (128 mm)
Package height	3.62" (92 mm)
Package weight	15.9 oz (450 g)
Certification	FCC, CE, RoHS
