Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Gigabit Ports For Faster Speeds

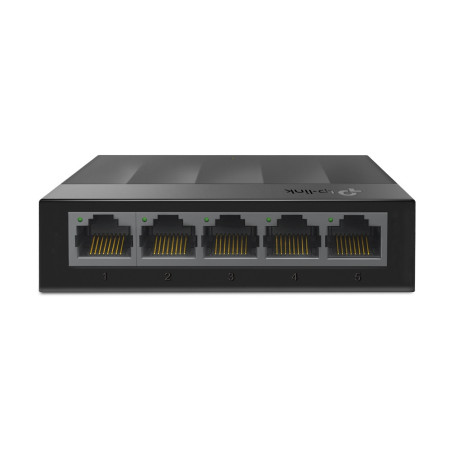

Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

TP-Link LS1005G. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Wall mountable

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	16000
Packet buffer memory	1.5 MB
Rack mounting	No
Product color	Black
Housing material	Plastic
LED indicators	Yes
International Protection (IP) code	IP20, IP40
Wall mountable	Yes
Power supply included	Yes
DC input voltage	5 V
Input current	0.6 A
Power consumption (max)	3.7 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	12.617 BTU/h
Width	3.54" (90 mm)
Depth	2.83" (72 mm)
Height	0.906" (23 mm)
Quick start guide	Yes
Package type	Box
Certification	CE, FCC, RoHS
Harmonized System (HS) code	85176990
