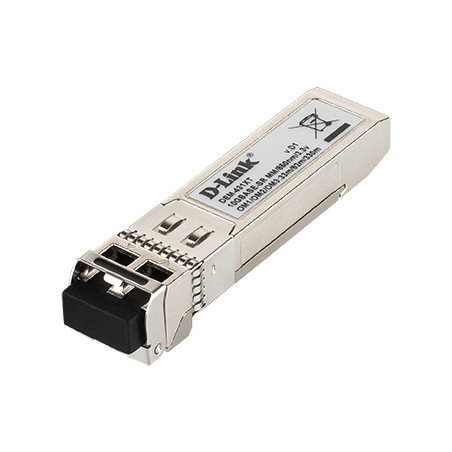

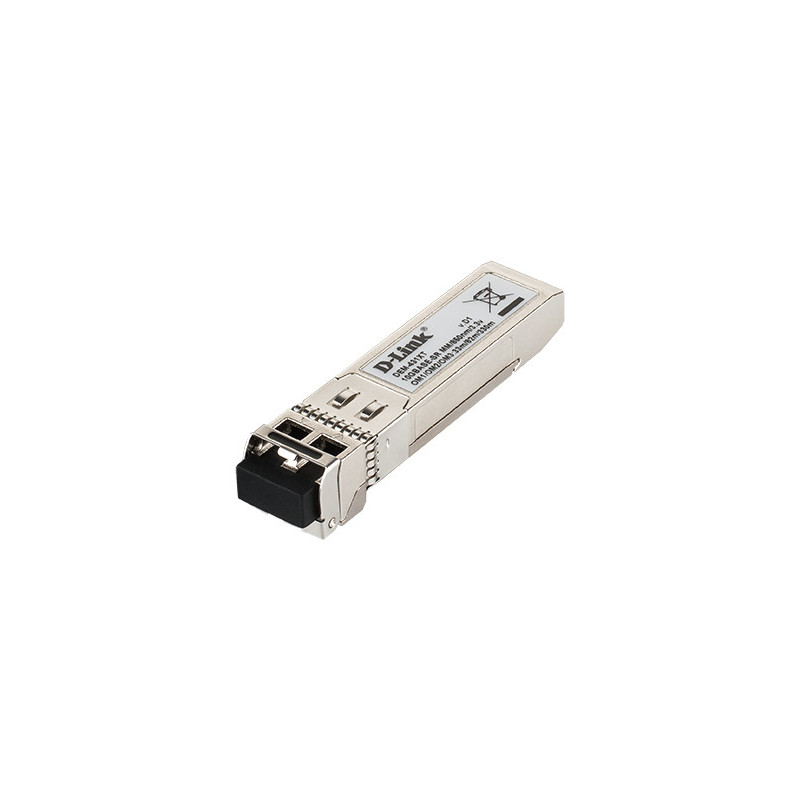

Designed to support distances up to 550 metres, the DEM-431XT is a high performance 850nm Multi-Mode SFP+ transceiver. Supporting Full-duplex, 10 Gigabit speeds on Multi-Mode fibre cables. The DEM-431XT is 802.3ae 10GBASE-SR compliant and supports Full-duplex 802.3x Flow control. The DEM-431XT provides the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa.

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

Enhanced Small Form-factor Pluggable Format

The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.

Hot Pluggable

All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.

10G Ethernet speeds

The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.

D-Link DEM-431XT. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product color: Gold, Metallic, Mean time between failures (MTBF): 3960000 h. Maximum voltage: 3.3 V, Maximum current: 300 A. Compliance certificates: RoHS, Safety: UL, TUV, CDRH, Certification: CE, FCC, VCCI, C-Tick, MSA. Width: 0.583" (14.8 mm), Depth: 0.467" (11.8 mm), Height: 2.22" (56.5 mm)

SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
SFP transceiver standard	SR
Maximum transfer distance	21653.5" (550 m)
Wavelength	850 nm
Tx power (min)	-6.5 dBmW
Tx power (max)	-1 dBmW
Rx power (min)	-11.1 dBmW
Rx power (max)	-1 dBmW
Link budget	10.1 dB
Networking standards	IEEE 802.3ae
Fiber ethernet cabling technology	10GBASE
Duplex system	Full
Product color	Gold, Metallic
Hot-Plug support	Yes
Mean time between failures (MTBF)	3960000 h
Maximum voltage	3.3 V
Maximum current	300 A
Compliance certificates	RoHS
Safety	UL, TUV, CDRH
Certification	CE, FCC, VCCI, C-Tick, MSA
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Storage relative humidity (H-H)	5 - 95%
Width	0.583" (14.8 mm)
Depth	0.467" (11.8 mm)
Height	2.22" (56.5 mm)
Weight	0.635 oz (18 g)
Package width	2.91" (74 mm)
Package depth	5.16" (131 mm)
Package height	1.93" (49 mm)
Package weight	2.26 oz (64 g)
Shipping (inner) case length	14.2" (36 cm)
Shipping (inner) case width	10.2" (26 cm)
Shipping (inner) case height	12.2" (31 cm)
Shipping (inner) case net weight	7.05 lbs (3.2 kg)
Quantity per shipping (inner) case	50 pc(s)
Pallet gross weight (air)	599.7 lbs (272 kg)
Number of cartons per pallet (air)	60 pc(s)
Quantity per pallet (air)	3000 pc(s)
Pallet length	40.2" (102 cm)
Pallet width	48" (122 cm)
Pallet height (air)	78.3" (199 cm)
Pallet gross weight (sea)	599.7 lbs (272 kg)
Number of cartons per pallet (sea)	60 pc(s)
Quantity per pallet (sea)	3000 pc(s)
Pallet height (sea)	78.3" (199 cm)
Shipping (inner) case weight	9.26 lbs (4.2 kg)
Harmonized System (HS) code	85369010
