Equipped with a high performance switching engine, the 8 Port All- Gigabit Managed Switch performs optimally. It has low transmission delay, large buffer and is highly reliable. It also has a strong switching
capability and optimizes transmission performance when accessing Ultra HD videos. With its full metal design and fanless design, the device has great heat dissipation and is low power consumption, working
in environments ranging from –10°C to 55°C (+14°F to +131°F). With protection against overvoltage, EMC and overcurrent from power input terminals, the switch effectively resists interference from static electricity, lightning, and pulses. It also offers a variety of services, supporting IGMP Snooping, Link Aggregation, QoS, LLDP, STP/RSTP and various web and network management software based on SNMP.

Link Layer Discovery Protocol (LLDP)
Enables network devices to advertise their information mutually, al- lowing you to conveniently monitor and manage devices in the local topology. This makes it easy for administrators to effectively perform
troubleshooting.

Quality of Service (QoS)
Uses mechanisms designed to control bandwidth, delay, jitter, and loss to ensure the performance of services when the capacity is limited.

Spanning Tree Protocol (STP)
Uses algorithms that calculate the best loop-free path through a Layer 2 network while providing path redundancy to prevent the occurrence of broadcast storms and enhance the stability of operations and services.

Link Aggregation
Combines multiple physical links into one virtual channel for dynamic redundancy and load balancing, ensuring that the connection remains stable.

IGMP Snooping
Listens to multicast traffic, and solely forwards information to regis- tered clients based on the multicast forwarding table. This ensures the safety of information and improves network efficiency.

Fanless Design
The fanless design reduces noise, enhances user experience, reduces mechanical losses and improves service life to a certain extent.

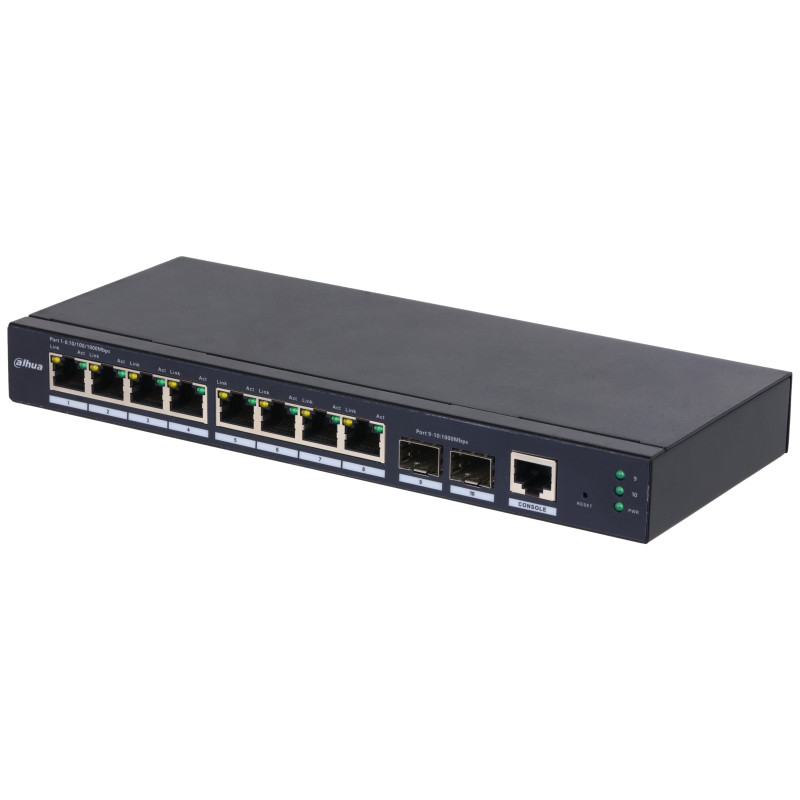

Dahua Technology SG4010-2F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE.... DC input voltage: 12 V. Wall mountable

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	No
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
SFP module slots quantity	2
Uplink ports quantity	2
Console port	RJ-45
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
Number of VLANs	4000
Fiber ethernet cabling technology	1000BASE-X
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Multicast support	Yes
Management protocols	SNMP V1/V2C/V3
Rack mounting	No
Product color	Black
Housing material	Steel
Reset button	Yes
LED indicators	Yes
Wall mountable	Yes
Fanless	Yes
Mean time between failures (MTBF)	2322286.99 h
Power source	DC
DC input voltage	12 V
Input current	1 A
Power consumption (max)	12 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95%
Width	4.09" (104 mm)
Depth	9.45" (240 mm)
Height	1.1" (28 mm)
Weight	22.6 oz (640 g)
Package width	9.45" (240 mm)
Package depth	12.4" (316 mm)
Package height	3.23" (82 mm)
Package weight	2.29 lbs (1.04 kg)
Compliance certificates	CE
Sustainability compliance	Yes
