Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W.

Also, link aggregation and STP are available on select models to ensure the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.

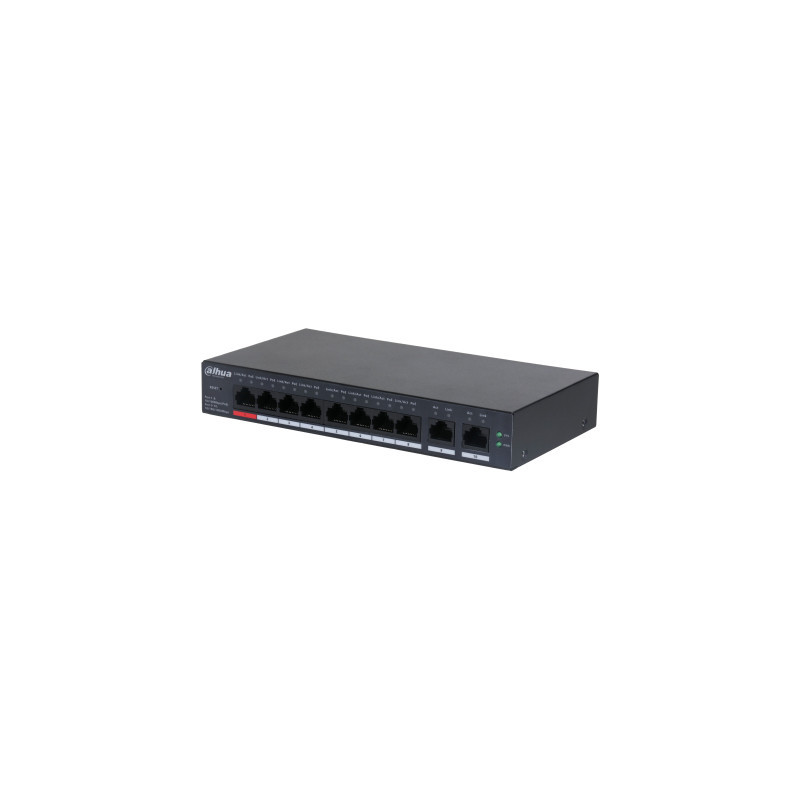

Dahua Technology DH-CS4010-8ET-110. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE)

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	8
Gigabit Ethernet (copper) ports quantity	2
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	32
MAC address table	8000 entries
Switching capacity	5.6 Gbit/s
Forwarding rate	4.17 Mpps
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	0.5 MB
DHCP features	DHCP client
Rack mounting	No
Product color	Black
Housing material	Metal
Reset button	Yes
LED indicators	Yes
Power source	DC/PoE
Power supply included	Yes
Redundant power supply (RPS) support	Yes
DC input voltage	54 V
Input current	2.22 A
Power consumption (max)	110 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	7.48" (190 mm)
Depth	4.17" (106 mm)
Height	1.18" (30 mm)
Weight	17.6 oz (500 g)
Package width	10.1" (256 mm)
Package depth	9.61" (244 mm)
Package height	3.43" (87 mm)
Package weight	2.76 lbs (1.25 kg)
Compliance certificates	CE
Sustainability compliance	Yes
