The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design, the Device
features great heat dissipation capability on the shell surface. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.

Wide Operating Temperature (–20 °C to +60 °C)
With its metal housing, it has great heat dissipation and a wide operating temperature that ranges from -20°C to +60°C.

Fanless Design
The fanless design reduces noise, enhances user experience, reduces mechanical losses and improves service life to a certain extent.

Optimized Performance
All ports can transmit streams at high speeds without delay.

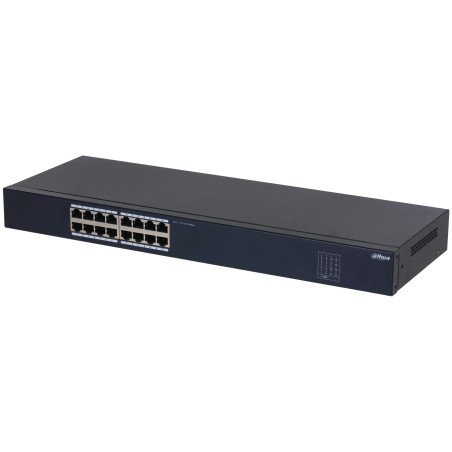

Dahua Technology SF1016. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Rack mounting

Switch type	Unmanaged
Switch layer	L2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	16
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	No
MAC address table	8000 entries
Switching capacity	3.2 Gbit/s
Forwarding rate	2.38 Mpps
Jumbo frames support	Yes
Jumbo frames	2048
Packet buffer memory	2 MB
Rack mounting	Yes
Product color	Black
Housing material	Iron
Plug and Play	Yes
Fanless	Yes
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	0.7 A
Power consumption (max)	1.6 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%
Width	6.1" (155 mm)
Depth	17.3" (440 mm)
Height	1.72" (43.7 mm)
Weight	3.46 lbs (1.57 kg)
Package width	10.7" (273 mm)
Package depth	20.6" (523 mm)
Package height	4.29" (109 mm)
Package weight	5.49 lbs (2.49 kg)
Compliance certificates	CE
Sustainability compliance	Yes
