WHAT THIS PRODUCT DOES

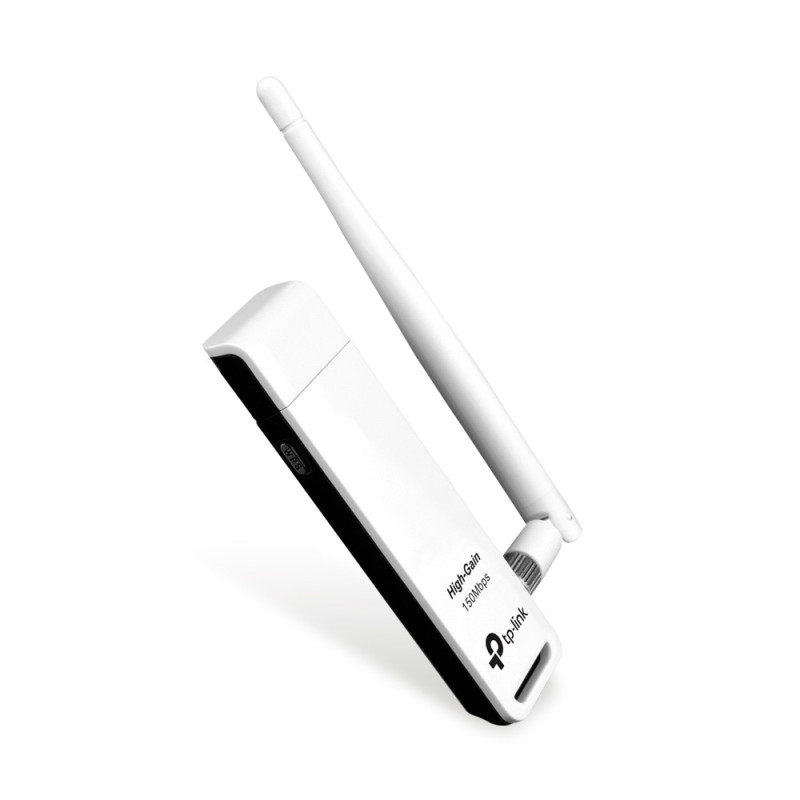

The TP-LINK TL-WN722N Wireless High Gain USB Adapter allows you to connect a desktop or notebook computer to a wireless network and access high-speed Internet connection. Using AlignTM 1-stream technology based on 802.11n technology, TL-WN722N provides a better wireless signal than existing wireless 802.11g technology. Most of all, equipped 4dBi detachable antenna can remarkably boost your signal range and speed. Now you can get a better Internet experience, such as downloading, gaming, video streaming and so on.

HIGH GAIN DESIGN
With powerful 4dBi detachable antenna, the TL-WN722N remains excellent performance in the long range and bad environment, it can receive signal from wireless base even separated by 2 floors.

QUICK SECURE SETUP
Quick Security Setup is a handy feature that allows users to almost instantly setup their security simply by pressing the QSS button on the wireless adapter, it automatically establishes a WPA secure connection, instantly protecting your network.

Features
- 150Mbps wireless transmission rate;
- Provides two methods of operation: Infrastructure and Ad-Hoc;
- Quick Secure Setup, complies with WPS for worry free wireless security;
- Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X;
- 4dBi omni-directional antenna detachable;
- Supports Windows 2000/XP/Vista/7 OS;
- Seamlessly compatible with 802.11b/g/n devices.

TP-Link TL-WN722N. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 150 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). Product color: Black, White

Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Maximum data transfer rate	150 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	11,54,150 Mbit/s
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms	64-bit WEP, 128-bit WEP, WMM, WPA-PSK, WPA2-PSK
Internal	No
Product color	Black, White
Antenna	Yes
Antenna design	External
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna gain level (max)	4 dBi
Transmitting power (CE)	20 dBm
Transmitting power (FCC)	27 dBm
WPS push button	Yes
Operating modes	Infrastructure mode
Windows operating systems supported	Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	3.68" (93.5 mm)
Depth	1.02" (26 mm)
Height	0.433" (11 mm)
Package width	7.87" (200 mm)
Package depth	5.91" (150 mm)
Package height	1.54" (39 mm)
Package weight	6.35 oz (180 g)
Cables included	USB
Resource CD	Yes
Quick installation guide	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
