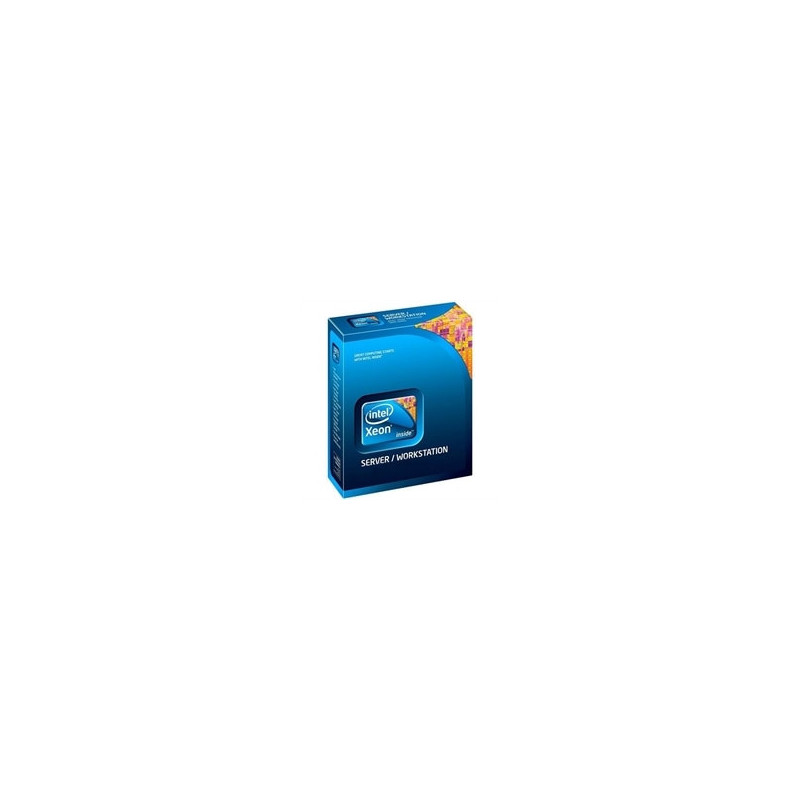

The Intel® E5-2698 v4 2.20 GHz Twenty Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.

Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the E5-2698 v4 2.20 GHz Twenty Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.

DELL Intel Xeon E5-2698 v4. Processor family: Intel® Xeon® E5 v4, Processor socket: LGA 2011-v3, Processor lithography: 14 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 1.54 TB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, Supported instruction sets: AVX 2.0, Scalability: 2S. Compatibility: - PowerEdge R630 - PowerEdge M630 - PowerEdge C6320 - PowerEdge R730XD - PowerEdge R430 -...

Processor family	Intel® Xeon® E5 v4
Processor cores	20
Processor socket	LGA 2011-v3
Processor lithography	14 nm
Processor manufacturer	Intel
Processor model	E5-2698V4
Processor base frequency	2.2 GHz
Processor operating modes	64-bit
Component for	Server/workstation
Processor series	Intel Xeon E5-2600 v4
Processor threads	40
System bus rate	9.6 GT/s
Processor boost frequency	3.6 GHz
Processor cache	50 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	135 W
VID Voltage Range	0 - 0 V
Stepping	B0
Bus type	QPI
Number of QPI links	2
Memory bandwidth supported by processor (max)	76.8 GB/s
Memory channels	Quad-channel
Maximum internal memory supported by processor	1.54 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
ECC	Yes
On-board graphics card	No
Discrete graphics card	No
On-board graphics card model	Not available
Discrete graphics card model	Not available
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Server
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0
Scalability	2S
CPU configuration (max)	2
Embedded options available	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Turbo Boost Technology	2.0
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Intel® Secure Key	Yes
Intel TSX-NI	Yes
Intel® OS Guard	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Conflict-Free processor	Yes
Intel® vPro™ Platform Eligibility	Yes
Tcase	90 °C
Compatibility	- PowerEdge R630 - PowerEdge M630 - PowerEdge C6320 - PowerEdge R730XD - PowerEdge R430 - PowerEdge C4130 - PowerEdge R730 - PowerEdge T630 - PowerEdge FC630 - PowerEdge R930
