Servers, workstations, and storage solutions based on the new Intel® Xeon® processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you’ll be delighted by better than ever performance no matter what tasks you face.

Your investment in industry standard technology from Intel combined with innovative solutions from partners help future-proof your data center with infrastructure that grows with your business.

Technology to scale innovative private cloud services
Today’s private clouds enable greater business agility and efficiency by delivering innovative and scalable services that drive value back into the organizations they serve. Building and managing these services require systems that scale to meet your ever changing needs, while delivering solutions to the challenges IT managers face every day. Server and storage platforms based on the Intel® Xeon® processor E5 family are built to be at the heart of today’s data centers and enable powerful, versatile private cloud solutions.

New Intel® Xeon® processor E5: a new performance sweet spot
The Intel® Xeon® processor E5 family support key cloud requirements that make your data center agile and more responsive to changing business needs. Maintaining industry leadership for power efficiency and continuing Intel Xeon processor performance advancements, the Intel® Xeon® processor E5 family gives you additional performance when you need it for single- and multi-threaded applications, including increased floating-point performance for technical computing workloads.

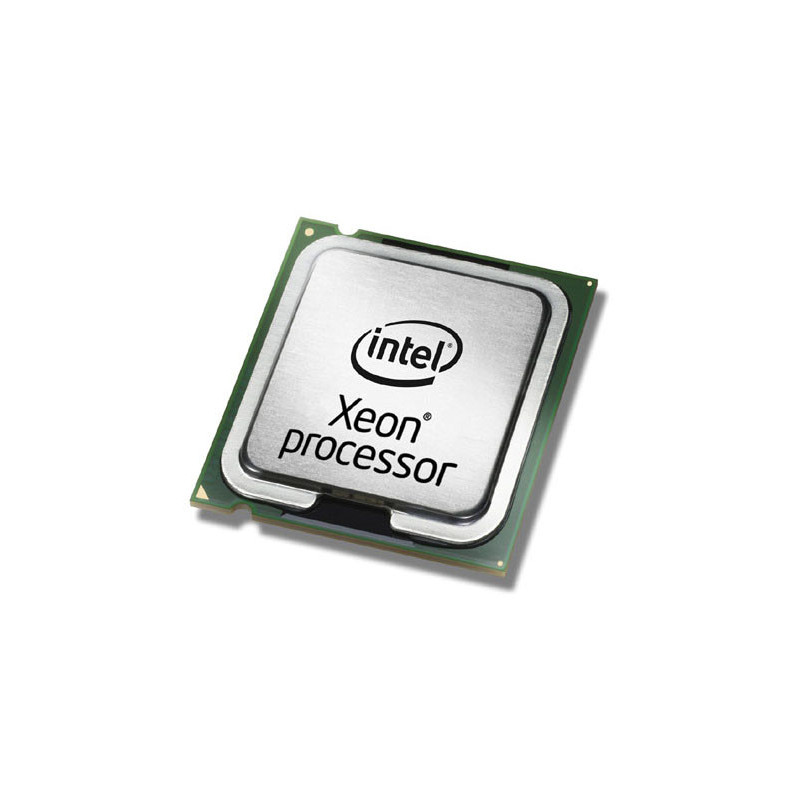

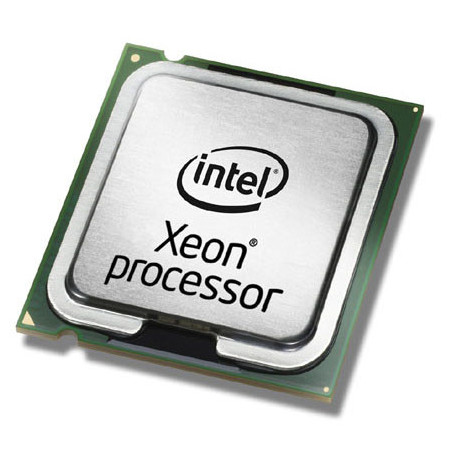

DELL Intel Xeon E5-2609 v3. Processor family: Intel Xeon E5 v3, Processor socket: LGA 2011-v3, Processor lithography: 22 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, Supported instruction sets: AVX 2.0, Scalability: 2S. Processor package size: 52.5 mm. Intel® Virtualization Technology (Intel® VT): VT-d, VT-x, Compatibility: PowerEdge R430 PowerEdge R530 PowerEdge R630 PowerEdge R730 PowerEdge R730XD PowerEdge T430 ...

Processor family	Intel Xeon E5 v3
Processor cores	6
Processor socket	LGA 2011-v3
Processor lithography	22 nm
Processor manufacturer	Intel
Processor model	E5-2609V3
Processor base frequency	1.9 GHz
Processor operating modes	64-bit
Component for	Server/workstation
Processor threads	6
System bus rate	6.4 GT/s
Thermal Design Power (TDP)	85 W
VID Voltage Range	0.65 - 1.3 V
Stepping	M1
Bus type	QPI
Number of QPI links	2
Memory bandwidth supported by processor (max)	51 GB/s
Memory channels	Quad-channel
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600 MHz
ECC	Yes
On-board graphics card	No
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Server
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0
Scalability	2S
Physical Address Extension (PAE)	Yes
CPU configuration (max)	2
Embedded options available	Yes
Intel® Smart Cache	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel Enhanced Halt State	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® vPro™ Platform Eligibility	Yes
Tcase	70.9 °C
Processor package size	52.5 mm
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Compatibility	PowerEdge R430 PowerEdge R530 PowerEdge R630 PowerEdge R730 PowerEdge R730XD PowerEdge T430 PowerEdge T630
