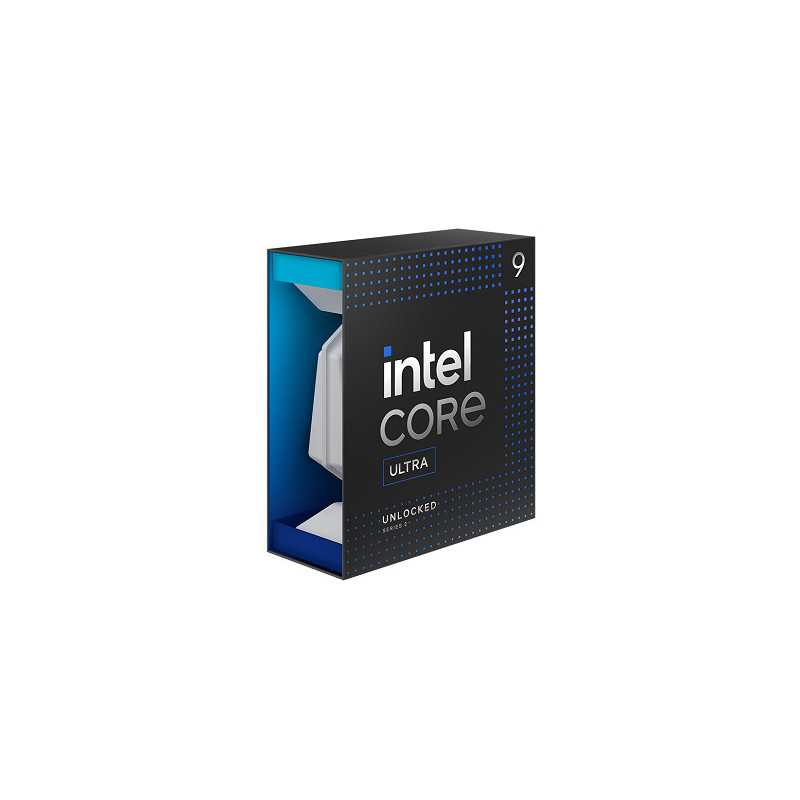

Intel Core Ultra 9 285K. Processor Family: Intel Core Ultra 9, Processor socket: LGA 1851 (Socket V1), Processor Manufacturer: Intel. Neural Processing Unit (NPU): Intel AI Boost, AI software framework supported by the NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 36 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by the processor: 192 GB, Memory types supported by the processor: DDR5-SDRAM. Integrated Graphic Card Model: Intel Graphics, Outputs supported by the integrated graphics card adapter: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1, Integrated Graphic Card Adapter Basic Frequency: 300 MHz. Market segment: Desktop, Terms of Use: Work station, PC/Client/Tablet, PCI Express slot version: 4.0, 5.0

Family Processor	Intel Core Ultra 9
Number of cores of the processor	24
Processor socket	LGA 1851 (Socket V1)
Box	Yes
Cooler included	No
Processor Manufacturer	Intel
Processor Model	285K
Processor operating mode	64 bits
Generation of the processor	Intel Core Ultra (Series 2)
Number of processor threads	24
Heart of performance	8
Efficient cores	16
Maximum frequency of the turbo processor	5.7 GHz
Core Performance Increase Frequency	5.5 GHz
Basic performance core frequency	3.7 GHz
Efficient Core Boost Frequency	4,6 GHz
Efficient Core Basic Frequency	3,2 GHz
Processor Cache	36 MB
Processor cache type	Smart cables
Basic power of the processor	125 W
Maximum turbo power	250 W
Artificial Intelligence Framework supported by CPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Step	B
Maximum number of DMI lanes	8
Processor code name	Lake Arrow
ARK processor ID	241060
Neural Processing Unit (NPU)	Intel Boost
Support for Disappearance	Yes
Support for Windows Studio Effects	Yes
AI software framework supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPS
NPU performance up to	13 TOPS
GPU performance up to	8 TOPS
Memory channels	Double channel
Maximum internal memory supported by the processor	192 GB
Memory types supported by the processor	DDR5-SDRAM
Memory speed clock supported by the processor	6400 MHz
Data Integrity Control	Yes
Integrated graphics card	Yes
Separate graphics card adapter	No
Integrated graphics card model	Intel Graphics
Dedicated graphics card	Not available
Supported outputs of integrated graphics card adapter	HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
Integrated Graphic Card Adapter Basic Frequency	300 MHz
Dynamic frequency of integrated graphics card adapter (max)	2000 MHz
Number of views (integrated graphics card)	4
DirectX version of integrated graphics card adapter	12.0
OpenGL version of integrated graphics card adapter	4.5
Updating frequency of the integrated graphic adapter at maximum resolution (DisplayPort)	60 Hz
Updating frequency of the integrated graphic adapter at maximum resolution (eDP - Integrated Plate Panel)	60 Hz
Updating frequency of the integrated graphic adapter at maximum resolution (HDMI)	60 Hz
Installed Graphic Card Adapter ID	0x7D67
Xe cores	4
Execution disabling bit	Yes
Inactive	Yes
Thermal Monitoring Technology	Yes
Market segment	Desk
Terms of use	Working station, PC/Client/Tablet
Maximum number of Express PCI lanes	24
Version of PCI Express slots	4.0, 5.0
Supported instructions	AVX 2.0, SSE4.1, SSE4.2
Scalability	1
Built-in options available	No
Description of thermal solution	PCG 2020A
(Direct Media Interface)	4.0
Issue of Classification of Export Control (ECCN)	5A992C
Automatic tracking system of the classification of goods (CCATS)	740.17B1
Technology Intel® Turbo Boost	2.0
Intel Technology Quick Sync Video	Yes
Intel® New AES instructions (Intel® AES-NI	Yes
Enhanced technology Intel SpeedStep	Yes
IntelReliable execution technology	Yes
Technology Intel® Speed change	Yes
Increased IntelYour text thermal speed doesn't contain any content to translate. Please provide the text you want to translate.	Yes
Intel® Frequency Turbo Boost Max Technology 3.0	5.6 GHz
Intel® Thunderbolt 4	Yes
Intel® Thermal Speed Increase Frequency	5.7 GHz
IntelExecution Flow Control Technology (CET)	Yes
Intel Director of the Wire	Yes
Intel® VT-x with extended pages tables (EPT)	Yes
Intel® Security Key	Yes
Intel TechnologyEnable Management (Intel® AMT)	Yes
Intel® OS Guard	Yes
Intel® 64	Yes
Technology Intel® Virtualization (VT-x)	Yes
IntelVirtualization Technology for Direct I/O (VT-d)	Yes
Technology Intel Turbo Boost Max 3.0	Yes
IntelBoot Guard	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel Volume Management Device (VMD)	Yes
Mode-based execution control (MBE)	Yes
Technology Intel® Manageability Standard (ISM)	Yes
Intel® Recovery with a click	Yes
Intel® Stable IT Platform Programme (SIPP)	Yes
Intel® Remote Platform Deletion (RPE)	Yes
IntelVirtualization technology with redirection protection (VT-rp)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU	Yes
Company platform suitability Intel vPro®	Yes
Threat Detection Technology Intel® (TDT)	Yes
Eligibility Intel® Shield Hardware	Yes
Technology Intel® Total Memory Encryption - Multi Key	Yes
Maximum operating temperature	105 °C
OpenLC version	3.0
Harmonized System Code (SA)	8542310050
Cache L2	40960 KB
Maximum supported RAM	192 GB
Launch date	Q4'24
State	Launched
Memory speed (max)	6400 MHz
Graphic output	DP2.1 UHBR20, HDM2.1
