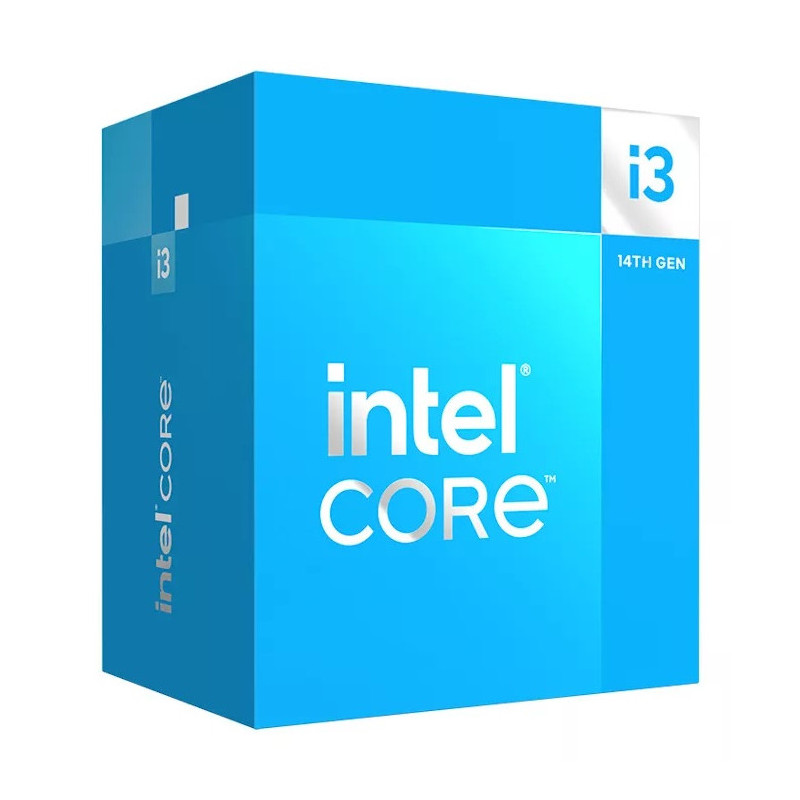

Intel Core i3-14100. Family of the processor: Intel® CoreTM i3, Processor socket: LGA 1700, Processor Manufacturer: Intel. Memory channels: Dual-channel, Maximum internal memory supported by the processor: 192 GB, Memory types supported by the processor: DDR4-SDRAM, DDR5-SDRAM. Integrated graphics card model: Intel UHD Graphics 730, supported outputs of integrated graphics card adapter: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1, Integrated Graphic Card Adapter Dynamic Frequency (max): 1500 MHz. Market segment: Desktop, Terms of Use: PC/Client/Tablet, PCI Express Slot Version: 4.0., 5.0. Dimensions of the processor packaging: 45 x 37.5 mm

Family of the processor	Intel® CoreTM i3
Number of cores of the processor	4
Taken for processor	LGA 1700
Box	Yes
Cooler included	Yes
Manufacturer of processors	Intel
Processor Model	i3-14100
Processor operating mode	64 bits
Generation of the processor	Intel Core i3-14xxx
Number of processor threads	8
Heart of performance	4
Efficient cores	0
Maximum frequency of the turbo processor	4,7 GHz
Core Performance Increase Frequency	4,7 GHz
Basic performance core frequency	3.5 GHz
Processor Cache	12 MB
Processor cache type	Smart cables
Basic power of the processor	60 W
Maximum turbo power	110 W
Step	H0
Maximum number of DMI lanes	8
Memory Band supported by the processor (max)	76.8 GB/s
Processor code name	Lake Raptor
ARK processor ID	236774
Memory channels	Dual-channel
Maximum internal memory supported by the processor	192 GB
Memory types supported by the processor	DDR4-SDRAM, DDR5-SDRAM
Width of memory band (maximum)	76.8 GB/s
Integrated graphics card	Yes
Separate graphics card adapter	No
Integrated Graphic Card Model	Intel UHD Graphics 730
Dedicated graphics card	Not available
Supported outputs of integrated graphics card adapter	Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
Dynamic frequency of integrated graphics card adapter (max)	1500 MHz
Number of views (integrated graphics card)	4
DirectX version of integrated graphics card adapter	12.0
OpenGL version of integrated graphics card adapter	4.5
Maximum resolution of integrated graphics card adapter (Displayport)	7680 x 4320 Pixel
Maximum resolution of the integrated graphic adapter (eDP - Integrated Plate Panel)	5120 x 3200 Pixel
Maximum resolution of integrated graphics card adapter (HDMI)	4096 x 2160 Pixel
Updating frequency of the integrated graphic adapter at maximum resolution (DisplayPort)	60 Hz
Updating frequency of the built-in graphic adapter (eDP - integrated flat panel)	120 Hz
Updating frequency of the integrated graphic adapter at maximum resolution (HDMI)	60 Hz
Installed Graphic Card Adapter ID	0x4692
Number of operating units	24
Multiformed codec engines	1
Execution disabling bit	Yes
Inactive	Yes
Thermal Monitoring Technology	Yes
Market segment	Desk
Terms of use	PC/Client/Tablet
Maximum number of Express PCI lanes	20
Version of PCI Express slots	4.0, 5.0
pCI Express configuration	1x16+1x4, 2x8+1x4
Supported instructions	AVX 2.0, SSE4.1, SSE4.2
Scalability	Can you please provide the text that must be translated?
CPU configuration (max)	1
Built-in options available	Yes
(Direct Media Interface)	4.0
Issue of Classification of Export Control (ECCN)	5A992C
Automatic tracking system of the classification of goods (CCATS)	740.17B1
IntelPuoi please provide the text you want to translate? Hyper Threading technology)Intel® HT Technology	Yes
Technology Intel® Turbo Boost	2.0
Intel Technology Quick Sync Video	Yes
Intel® Video technology HD NitidoIntel® CVT HD)	Yes
Intel® New AES instructions (Intel® AES-NI	Yes
Enhanced technology Intel SpeedStep	Yes
Technology Intel® Speed change	Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Running Flow Control Technology (CET)	Yes
Intel® VT-x with extended pages tables (EPT)	Yes
Intel® Security Key	Yes
Intel® OS Guard	Yes
Intel® 64	Yes
Technology Intel® Virtualization (VT-x)	Yes
IntelVirtualization Technology for Direct I/O (VT-d)	Yes
IntelBoot Guard	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel Volume Management Device (VMD)	Yes
Mode-based execution control (MBE)	Yes
Technology Intel® Standard Management (ISM)	Yes
T-section	100 °C
OpenLC version	3.0
Harmonized System Code (SA)	8542310001
Dimensions of the processor packaging	45 x 37.5 mm
Cache L2	5120 KB
Maximum supported RAM	192 GB
Launch date	Your request does not contain a text in Spanish to be translated into Italian. Can you try again?
State	Launched
Graphic output	eDP 1.4b, DP 1.4a, HDMI 2.1
