Nine-pin dot matrix printer offering fast printing, outstanding reliability and an extremely low TCO.

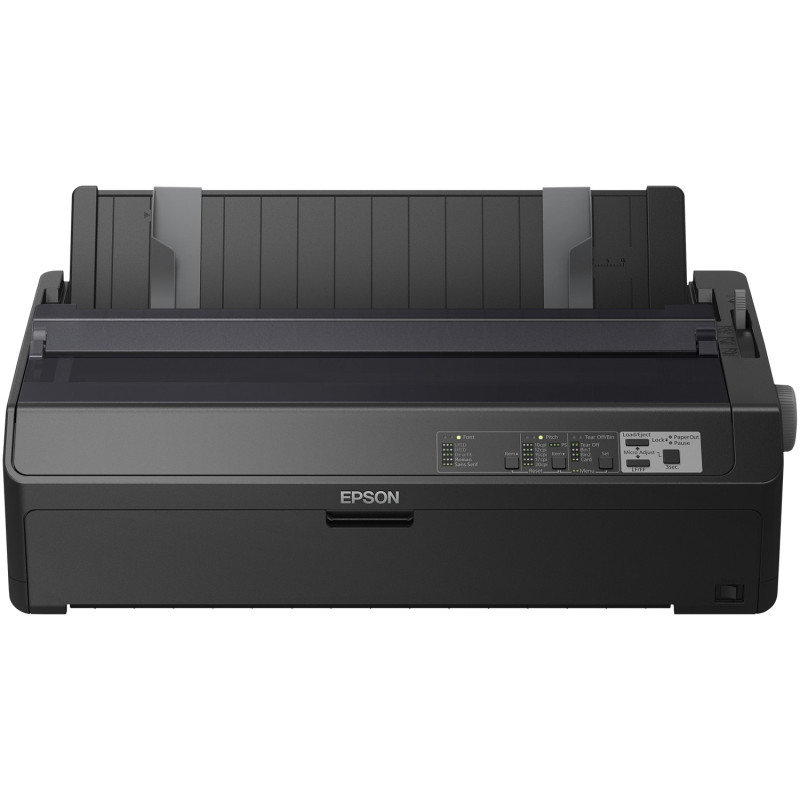

The FX-2190II is a high-volume, low TCO 136-column dot matrix printer designed for faster, more reliable printing. A contemporary new design and smaller footprint make it an easy upgrade.

Market-leading print speeds
The FX-2190II offers an improved USD (ultra speed draft) speed of 738 characters per second at 12 characters per inch, making a real difference to high-volume print runs such as stock reports, large batches of invoices or freight documents.

Outstanding reliability
Building on Epson's established and reliable dot matrix technology, the new range of printers improves the mean time between failures by 25 percent This delivers 25,000 of power-on hours, ideal for challenging conditions where regular maintenance is not practical.

Smaller footprint
Epson's new range of dot matrix printers has a refreshed design with a smaller footprint - depth has been reduced to just 320mm - making it easy to place into a business environment.

Epson FX-2190II. Maximum print speed: 738 cps, Maximum resolution: 240 x 144 DPI, Maximum print speed (draft): 463 cps. Maximum print size: A3 (297 x 420 mm), Paper tray media types: Envelopes, Continuous paper thickness range: 0.0181 - 0.0181" (0.46 - 0.46 mm). Product color: Black, Buffer size: 128 KB, Sound pressure level (printing): 55 dB. Standard interfaces: Parallel, USB. Print head: 9-pin, Print direction: Bidirectional, Print head life: 400 million characters

Color	No
Maximum print speed	738 cps
Maximum resolution	240 x 144 DPI
Maximum printing width (columns)	136
Maximum print speed (draft)	463 cps
Maximum print speed (NLQ)	115 cps
Character pitch	10,12,15 cpi
Maximum number of copies	6 copies
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Bitmap fonts	Draft, OCR-B, Roman, Sans Serif
Character sets	PCAPTEC, PC437, PC720, PC850, PC858, ISO 8859-15, Roman 8, Italic
Number of characters	42
Maximum print size	A3 (297 x 420 mm)
Paper tray media types	Envelopes
Continuous paper thickness range	0.0181 - 0.0181" (0.46 - 0.46 mm)
Label thickness range	0.0181 - 0.0181" (0.46 - 0.46 mm)
Multi-part paper thickness range	0.00472 - 0.0181" (0.12 - 0.46 mm)
Single sheet thickness range	0.00236 - 0.00551" (0.0600 - 0.14 mm)
Product color	Black
Buffer size	128 KB
Sound pressure level (printing)	55 dB
Page description languages	ESC P, PPDS
Country of origin	Indonesia
Standard interfaces	Parallel, USB
Print head	9-pin
Print direction	Bidirectional
Print head life	400 million characters
Ribbon life (black, draft)	12 million characters
Print yield	12 characters
Mean time between failures (MTBF)	25000 h
Power consumption (typical)	54 W
Power consumption (standby)	8 W
AC input voltage	198-264 V
Power consumption (economy mode)	0.5 W
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	30 - 60%
Width	24.1" (612 mm)
Depth	14.8" (375 mm)
Height	6.97" (177 mm)
Weight	18.5 lbs (8.37 kg)
Quantity per pack	1 pc(s)
Package width	17.9" (455 mm)
Package depth	28.9" (735 mm)
Package height	11.8" (300 mm)
Package weight	26.7 lbs (12.1 kg)
Connectivity technology	Wired
Print technology	Dot matrix
Sustainability certificates	ENERGY STAR
Quantity per pallet	14 pc(s)
Pallet weight	0 oz (0 g)
Pallet length	47.2" (120 cm)
Pallet width	31.5" (80 cm)
Pallet height	88.6" (2.25 m)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	3 pc(s)
Quantity per pallet (UK)	21 pc(s)
Pallet weight (UK)	0 oz (0 g)
Pallet length (UK)	47.2" (120 cm)
Pallet width (UK)	39.4" (100 cm)
Pallet height (UK)	88.6" (2.25 m)
Harmonized System (HS) code	84433210
Needles	18 (2 x 9)
