Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4522TN industrial label printer.

With fast print speeds, ZPL2 emulation compatibility, high ribbon capacity and an internal rewinder - this durable industrial printer has been built with you in mind.

Experience efficient labelling solutions and performance you can rely on with the TJ-4522TN industrial label printer.

Rewind and collect

Automatically wind labels onto a roll during the printing process so you don't have to collect the labels when printed.

The Brother TJ-4522TN enables you to print as many labels as needed, for use whenever required.

Integrate with ease

With the Brother TJ label printers, there is no need to worry about integration.

Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.

High quality thermal printing

The TJ-4522TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time.

With high quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.

First-class user experience

Offering a touch panel display for instant feedback, the TJ-4522TN has been designed with the user in mind. Make life easy for your workers by troubleshooting issues in just a couple of taps.

Connectivity as standard

USB, USB Host, Serial and Ethernet are included as standard for the TJ industrial label printers.

An optional WiFi and Bluetooth module is also available as an accessory to meet your connectivity needs.

In-built durability

Brother industrial printers have been built with you in mind, and built to last, ensuring you enjoy years of hassle-free label printing.

The high volume industrial printers feature a metal frame and cover as well as other durable design features to ensure they perform at their best, even in the toughest production environments.

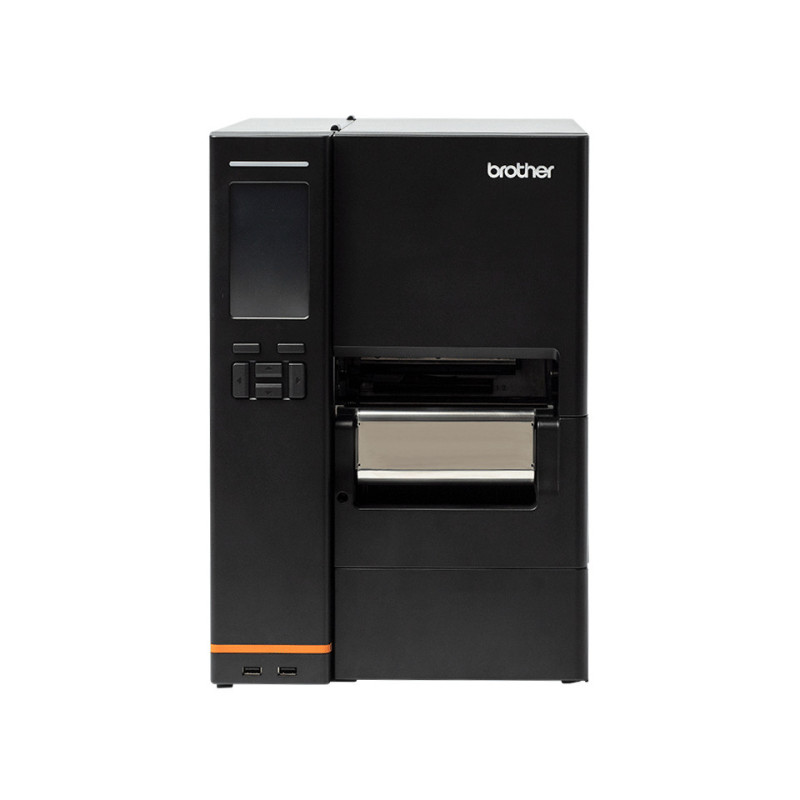

Brother TJ4522TN. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 305 mm/sec. Connectivity technology: Wired. Product color: Black

Print technology	Direct thermal / Thermal transfer
Color	No
Maximum resolution	300 x 300 DPI
Print speed	305 mm/sec
Maximum printing width	4.09" (10.4 cm)
Minimum print length	0.197" (5 mm)
Ribbon width	4.49" (11.4 cm)
Ribbon length	23622" (600 m)
Maximum label width	4.49" (11.4 cm)
Maximum roll diameter	7.99" (20.3 cm)
Core diameter	3" (7.62 cm)
Connectivity technology	Wired
Ethernet LAN	Yes
USB port	Yes
RS-232 ports	1
Optional connectivity	Bluetooth, Wireless LAN
Page description languages	DPL, EPL2, ZPL II
Internal memory	256 MB
Flash memory	512 MB
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39, UPC-E
Number of fonts	8
Product color	Black
Color display	Yes
Control type	Buttons, Touch
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Mobile operating systems supported	Android, iOS
Linux operating systems supported	Yes
Operating relative humidity (H-H)	25 - 85%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Width	15.7" (400 mm)
Depth	25" (635 mm)
Height	21.5" (545 mm)
Weight	42.8 lbs (19.4 kg)
Package weight	47.8 lbs (21.7 kg)
Cables included	AC
Software development kit (SDK)	Yes
Harmonized System (HS) code	84433210
Pallet height	7.05" (17.9 cm)
Pallet weight	452.4 lbs (205.2 kg)
Number of cartons per pallet	9 pc(s)
Number of cartons per pallet layer	3 pc(s)
Number of layers per pallet	3 pc(s)
Quantity per pallet	9 pc(s)
Pallet type	800 x 1200 mm
LED indicators	Error, Power, Status
Country of origin	Taiwan
Languages support	Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
Maximum print length	450" (11.4 m)
