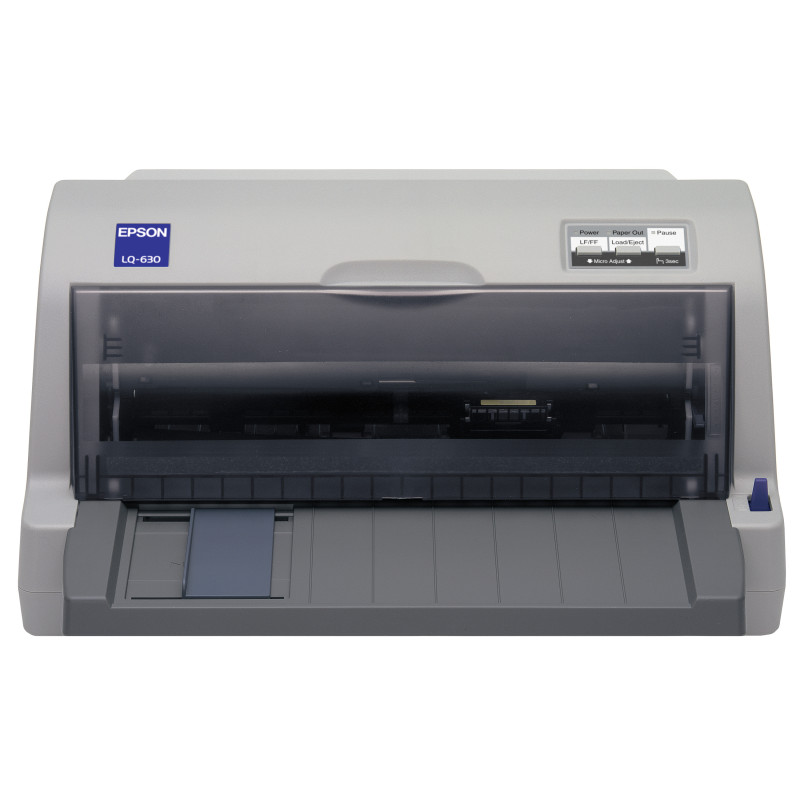

LQ-630 is a small and reliable printer especially for counter application. With its small design with 80 columns, LQ-630 fits perfectly in environments where space is rather limited. The ejection of both, continuous paper and cut sheets at front side enables easy handling of the print outs only at the front side of the printer. Due to the printer's flatbed technology, LQ-630 can print even smallest cut sheet forms and stickers down to 9 cm x 7 cm. LQ-630 can ideally be used with retail stores, banks, post offices, doctors' surgeries, ticket shops, cinemas, pizza services. Moreover the printer is perfect for label and protocol printing with trade industrial firms.

Key Features
- Fast print speed up to 360 cps
- Compact and robust design
- Handles up to 1 original plus 3 copies
- Flatbed technology for ergonomic front paper feed
- Mean Volume Between Failures: 12 mill. lines
- Standard Centronics Parallel and USB 2.0 Interfaces

Epson LQ-630. Maximum print speed: 360 cps, Maximum resolution: 360 x 180 DPI, Maximum print speed (draft): 225 cps. Maximum print size: 254 x 559 mm, Paper tray media types: Labels, Roll. Product color: Gray, Buffer size: 32 KB, Sound pressure level (printing): 57 dB. Standard interfaces: Parallel, USB 2.0. Print head: 24-pin, Print direction: Bidirectional, Print head life: 400 million characters

Color	No
Maximum print speed	360 cps
Maximum resolution	360 x 180 DPI
Maximum printing width (columns)	80
Maximum print speed (draft)	225 cps
Maximum print speed (LQ)	79 cps
Character pitch	10,12 cpi
Maximum number of copies	5 copies
Built-in barcodes	Code 39, POSTNET, UPC-A, UPC-E
Maximum print size	254 x 559 mm
Paper tray media types	Labels, Roll
Product color	Gray
Buffer size	32 KB
Sound pressure level (printing)	57 dB
Page description languages	Epson ESC/P2, PPDS
Country of origin	China
Standard interfaces	Parallel, USB 2.0
Print head	24-pin
Print direction	Bidirectional
Print head life	400 million characters
Ribbon life (black, draft)	2 million characters
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	20 W
Power consumption (standby)	4.8 W
AC input voltage	220 - 240 V
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Bundled software	Epson Status Monitor
Width	15.2" (386 mm)
Depth	12" (306 mm)
Height	7.28" (185 mm)
Weight	7.72 lbs (3.5 kg)
Quantity per pack	1 pc(s)
Package width	10.4" (265 mm)
Package depth	17.9" (455 mm)
Package height	12.2" (310 mm)
Package weight	0.183 oz (5.2 g)
Print technology	Dot matrix
Quantity per pallet	35 pc(s)
Pallet width	47.2" (120 cm)
Pallet height	39.4" (100 cm)
Quantity per pallet layer	5 pc(s)
Quantity per pallet layer (UK)	7 pc(s)
Quantity per pallet (UK)	49 pc(s)
Pallet length (UK)	47.2" (120 cm)
Pallet width (UK)	39.4" (100 cm)
Pallet height (UK)	78.7" (2 m)
Harmonized System (HS) code	84433210
Needles	24
