Stay protected against power failures.

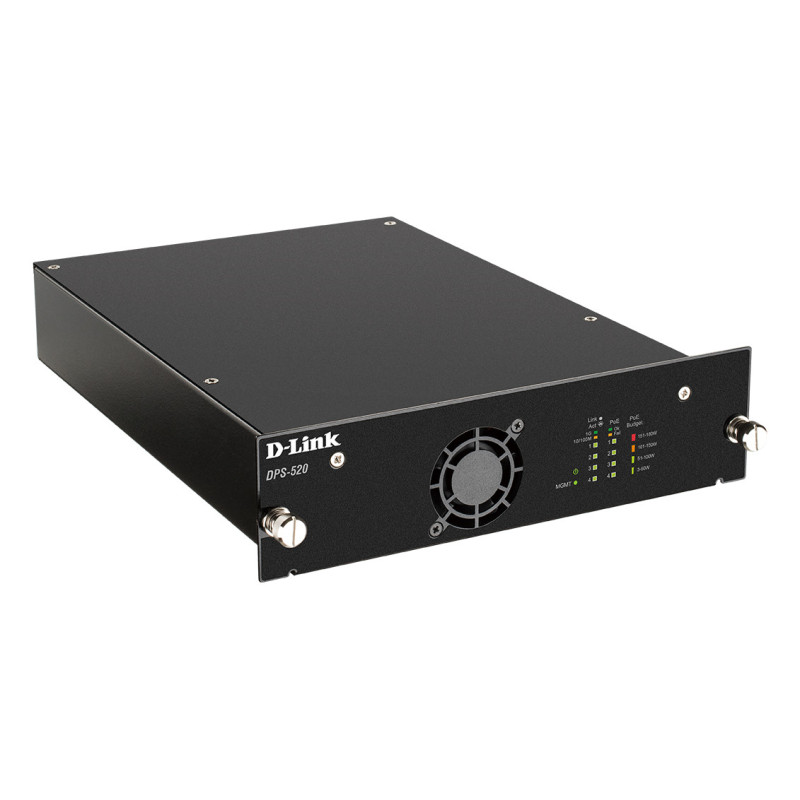

The DPS-520 offers uninterrupted operation for up to x4 D-Link switches and in the event of a power failure, it will be immediately activated, allowing your business to stay operational.

High Flexibility and Availability
Connect devices at distances of up to 100m

PoE Capable
Up to 180 W PoE output through PoH

Cost-Effective Solution
Supply 4 devices with redundant power with a single RPS

Auto discovery
Automatically detect PD (powered device) to deliver immediate power

RPS Port Priority
Allows the network administrator to define RPS failover policy

Power Redundancy
Provide power redundancy to network switches (non-PoE models)

Status Reporting
Monitor status and backup a failed switch via web browser

Flexible Deployment
Any standard Category 5e or higher Ethernet cable can be used to connect the RPS to the switch, allowing the RPS to supply PoH power to the switch with up to 100m connection distance.

Simple Installation
The DPS-520 is compatible with DGS-1520-28 and DGS-1520-52 and can be installed as a standalone power supply unit or onto a standard mounted switch rack by inserting it into an optional DPS-800 open chassis, designed to hold x2 DPS-520 RPS units.

Connect to the RPS with a standard CAT-5e cable with a connection distance of up to 100m.

Status Reporting
Switch status information can be monitored through any web browser with our comprehensive tool, allowing administrators to backup a failed switch.

D-Link DPS-520. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, Maximum operating distance: 3937" (100 m), Power protection features: Over current. Remote management port: RJ-45 (Gigabit). AC adapter input voltage: 90 - 264 V, AC adapter frequency: 47 - 63 Hz, Input current: 2 A. Width: 7.72" (196 mm), Depth: 10.1" (257 mm), Height: 2.05" (52 mm)

Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes
Web-based management	Yes
Product color	Black
Easy to install	Yes
Rack mounting	Yes
Maximum operating distance	3937" (100 m)
LED indicators	Yes
Power protection features	Over current
Number of fans	1 fan(s)
RJ-45 output ports	4
Remote management port	RJ-45 (Gigabit)
AC adapter input voltage	90 - 264 V
AC adapter frequency	47 - 63 Hz
Input current	2 A
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	180 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Width	7.72" (196 mm)
Depth	10.1" (257 mm)
Height	2.05" (52 mm)
Weight	2.54 lbs (1.15 kg)
Harmonized System (HS) code	85044095
