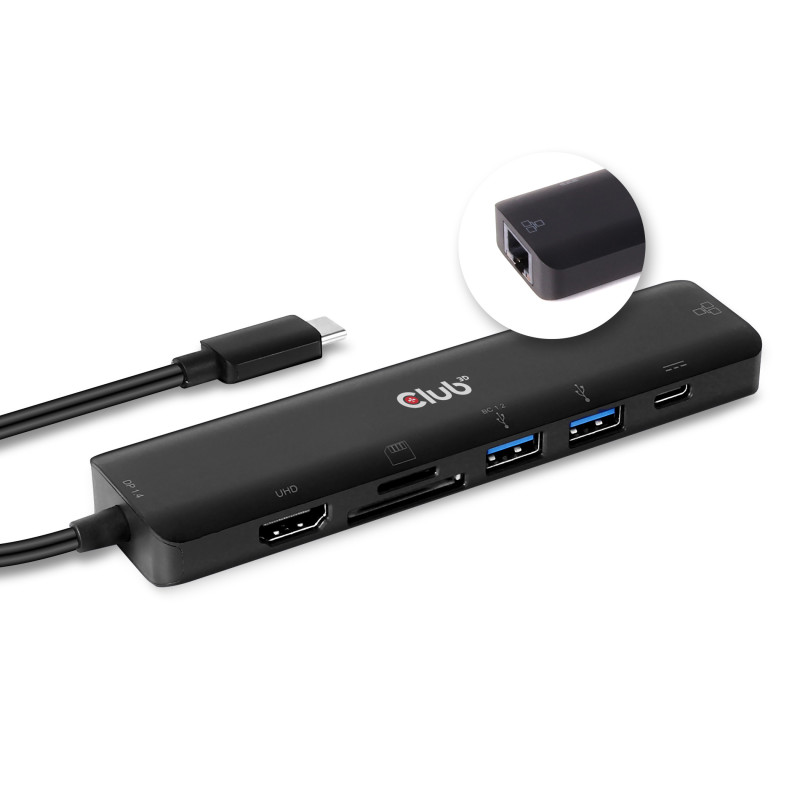

CSV-1592 - The Club 3D Hub is a USB Type C 7-in-1 Hub to HDMI™ 4K60Hz /SD-TF Card slot / 2x USB Type A / USB Type C PD / RJ45, providing an ideal solution for extending the port of USB Type C or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc.),especially for the host with a single USB Type C port. This hub adopts the latest DP 1.4 Alt mode technology available today, enabling to output HDMI™ video with max 4k/60Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 2x USB Type A ports allow you to connect 2 USB devices simultaneously.

SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 ports allows the host to get access to Gigabit Ethernet. Besides, the USB Type C female supports PD 3.0 with max 100W PD Charging. It can work on all USB Type C and Thunderbolt™3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode).When working on Thunderbolt™3 host, this product transmits DP signal.

CLUB3D CSV-1592. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C. Width: 5.35" (136 mm), Depth: 1.34" (34 mm), Height: 0.551" (14 mm)

Connectivity technology	Docking
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Microphone in	No
Headphone outputs	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery	Yes
USB Power Delivery up to	100 W
HDMI version	2.0
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Product color	Black
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Plug and Play	Yes
Charging function	Yes
Country of origin	China
Compatibility	Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer
Certification	FCC, CE EMI
Power source type	USB
Power connector	USB Type-C
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Width	5.35" (136 mm)
Depth	1.34" (34 mm)
Height	0.551" (14 mm)
Weight	2.43 oz (69 g)
Quantity per pack	1 pc(s)
Package width	12.6" (320 mm)
Package depth	2.36" (60 mm)
Package height	1.18" (30 mm)
Package weight	3.88 oz (110 g)
Manual	Yes
Compliance certificates	RoHS
Harmonized System (HS) code	84733020
