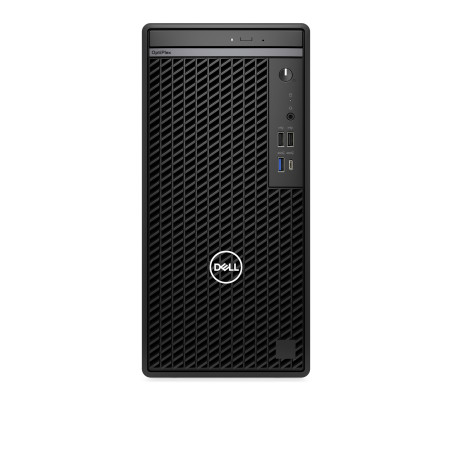

DELL OptiPlex 7020. Processor family: Intel® Core™ i5, Processor model: i5-14500. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD, Optical drive type: DVD±RW. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: Mini Tower. Product type: PC. Product color: Black

Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-14500
Processor generation	Intel® Core™ i5 (14th gen)
Processor cores	14
Processor threads	20
Processor boost frequency	5 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core base frequency	2.6 GHz
Efficient-core base frequency	1.9 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	65 W
Maximum turbo power	154 W
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x DIMM
Total storage capacity	512 GB
Optical drive type	DVD±RW
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
NVMe	Yes
SSD form factor	M.2
SSD performance class	35
M.2 SSD size	2230 (22 x 30 mm)
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
LAN controller	Intel® I219-LM
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
HDMI version	1.4b
DisplayPorts quantity	1
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Chassis type	Mini Tower
Product color	Black
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product type	PC
Market positioning	Business
Motherboard chipset	Intel Q670
Audio chip	Realtek ALC3204-CG
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English, Spanish, French, Italian, Portuguese
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Power supply	180 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47/63 Hz
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating vibration	0.26 G
Non-operating vibration	1.37 G
Operating shock	40 G
Non-operating shock	105 G
Sustainability certificates	ENERGY STAR, EPEAT Climate +, TCO
Width	6.06" (154 mm)
Depth	11.5" (292.2 mm)
Height	12.8" (324.3 mm)
Cables included	AC
Total carbon footprint (kg of CO2e)	158
Carbon emissions, manufacturing (kg of CO2e)	94
Carbon emissions, logistics (kg of CO2e)	10
Carbon emissions, energy usage (kg of CO2e)	48
Carbon emissions, end-of-life (kg of CO2e)	6
Total carbon emissions, w/o use phase (kg of CO2e)	110
PAIA version	GaBi version 1, 2024
Display included	No
Sustainability compliance	Yes
