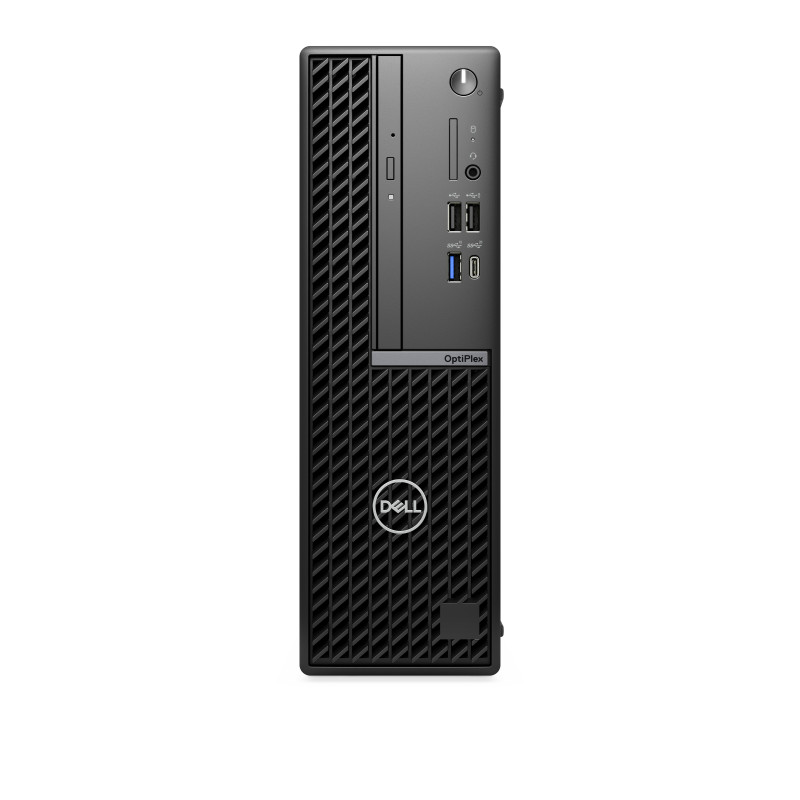

DELL OptiPlex 7020 Plus. Processor family: Intel® Core™ i7, Processor model: i7-14700. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 260 W. Chassis type: SFF. Product type: PC. Product color: Black

Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700
Processor generation	Intel® Core™ i7 (14th gen)
Processor cores	20
Processor threads	28
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.3 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	65 W
Maximum turbo power	219 W
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory data transfer rate	4400 MT/s
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
NVMe	Yes
SSD form factor	M.2
SSD performance class	35
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type	2x2
Bluetooth	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
PowerShare	Yes
Number of USB ports with PowerShare support	1
DisplayPorts quantity	3
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Line-in	Yes
Combo headphone/mic port	Yes
Number of SATA III connectors	3
PCI Express x4 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Chassis type	SFF
Product color	Black
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Intel® vPro™ Platform Eligibility	Yes
Product type	PC
Motherboard chipset	Intel Q670
Audio chip	Realtek ALC3246-CG
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English, Spanish, French, Italian, Portuguese
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Power supply	260 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47/63 Hz
80 PLUS certification	80 PLUS Bronze
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating vibration	0.26 G
Non-operating vibration	1.37 G
Non-operating shock	105 G
Width	3.65" (92.6 mm)
Depth	11.5" (292.8 mm)
Height	11.4" (290 mm)
Cables included	AC
Total carbon footprint (kg of CO2e)	167
Carbon emissions, manufacturing (kg of CO2e)	86
Carbon emissions, logistics (kg of CO2e)	12
Carbon emissions, energy usage (kg of CO2e)	65
Carbon emissions, end-of-life (kg of CO2e)	5
Total carbon emissions, w/o use phase (kg of CO2e)	102
PAIA version	GaBi version 1, 2024
Display included	No
