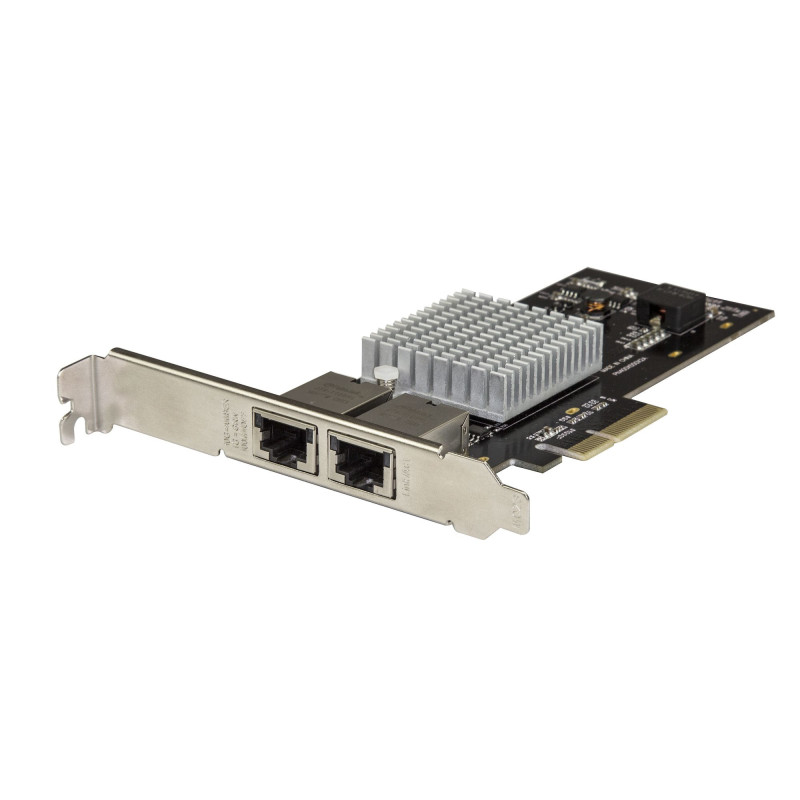

Add two Ethernet ports to a server or workstation through one PCI Express slot, with support for five network speeds: 10G/5G/2.5G/1G/100Mbps

This dual-port network card offers versatile and cost-efficient network connectivity, by increasing the available network bandwidth without having to replace your existing cabling infrastructure. The 5-speed network card lets you add two 10G/NBASE-T RJ45 ports to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G, 1G, and 100Mbps.

Cost-effective, multimode network connectivity

Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. Fully compliant with 10GBASE-T and NBASE-T™ specifications, the network card is a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)

Connect to NBASE-T equipment

The network card supports advanced NBASE-T technology, compatible with the latest multi-gigabit Ethernet switches and routers, such as new Cisco campus switches (including Catalyst 4500E, 3850 and 3560-CX). The card enables you to connect to NBASE-T based equipment at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a.

NBASE-T technology accelerates the speed of twisted pair Cat5e copper cabling over a distance of up to 100 meters. The Ethernet network card also supports 10Gbps network speeds if using Cat6a cabling, and 1Gbps network speeds if using Cat5e (or better) cabling.

The Ethernet ports are based on the Intel® X550AT2 chipset, designed to deliver the power, performance, and enhanced capabilities you need for reliable network connections to your server or computer. The network card also supports advanced features including 9K jumbo frames and 802.1q VLAN tagging.

Easy installation

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a standard-profile bracket for installation in a full-sized chassis and includes a low-profile/half-height bracket for installation in small form-factor computers.

The StarTech.com Advantage


StarTech.com ST10GPEXNDPI. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product color: Black

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
PCI version	3.0
Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Cabling technology	10GBase-T
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Jumbo frames	9000
VLAN tagging	Yes
iSCSI support	Yes
Internal	Yes
Product color	Black
Chipset	Intel X550AT
LED indicators	Activity, Link, Speed
Certification	CE, FCC, REACH
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Width	0.591" (15 mm)
Depth	8.98" (228 mm)
Height	5.2" (132 mm)
Weight	3.46 oz (98 g)
Low-profile bracket	Yes
Package width	8.7" (221 mm)
Package depth	11.3" (286 mm)
Package height	4.57" (116 mm)
Package weight	7.02 oz (199 g)
Compliance certificates	RoHS
Harmonized System (HS) code	85176990
Master (outer) case width	16.5" (420 mm)
Master (outer) case length	17.2" (436 mm)
Master (outer) case height	12.4" (316 mm)
Quantity per master (outer) case	40 pc(s)
Quick start guide	Yes
Flow control support	Yes
