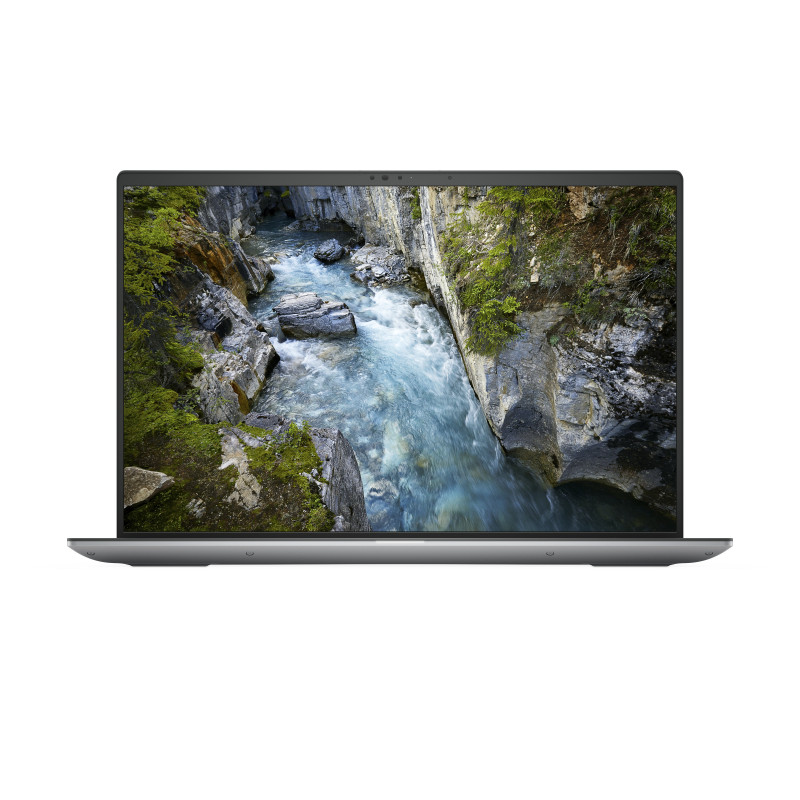

DELL Precision 5690. Product type: Mobile work station, form factor: Clamshell. Processor family: Intel Ultra 7 core, processor model: 165h. Diagonal dimensions of the screen: 40.6 cm (16 "), HD type: Full HD +, Display resolution: 1920 x 1200 pixels. RAM installed: 32 GB, RAM type: LPDDR5X-SDRAM. Total storage capacity: 1 TB, support memory: SSD. Model of the integrated graphics card: Intel ARC GRAPHICS, Dedicated graphics card: NVIDIA RTX 1000 ADA. Operating System Included: Windows 11 Pro. Product Color: Gray

Type of product	Mobile work station
Product color	Gray
Form factor	Shell shell
Market positioning	Company
Platform eligibility Intel® VPro ™	Yup
Diagonal size of the screen	40.6 cm (16 ")
Display resolution	1920 x 1200 pixels
Touch screen	No
HD Type	Full HD +
Type of panel	IPS
LED backlight	Yup
Native aspect ratio	16:10
Anti-reflective screen	Yup
Screen brightness	500 cd / m²
Pixel density	142 PPI (Points per inch)
RGB color space	DCI-p3
Color range	100%
Maximum update time	60 Hz
Contrast report	1300: 1
Processor family	Intel Ultra 7 core
Processor manufacturer	Intel
Processor model	165h
Processor generation	Intel Core Ultra (Series 1)
Processor core number	16
Number of processor threads	22
Maximum frequency of the Turbo processor	5 GHz
Heart of performance	6
Efficient nuclei	8
Low energy efficiency heart	2
Maximum frequency of the TURBO Performance-Core processor	5 GHz
Maximum turbo frequency of the efficient-core processor	3.8 GHz
Maximum turbo frequency of energy-efficient core	2.5 GHz
Basic performance core frequency	1.4 GHz
Efficient core base frequency	0.9 GHz
Low Energy Efficiency Core Basic Frequency	700 MHz
Processor cache	24 MB
Type of processor cache	Smart cache
Basic power of the processor	28 W
Maximum turbo power	115 W
Neural Processing Unit (NPU)	Intel Boost
Maximum NPU frequency	1.4 GHz
Support for Disappearance	Yup
Windows Studio Effects Support	Yup
Support of data types AI on the NPU	FP16, FP32, INT8
Framework software to supported by NPU	DirectML, Onnx RT, Openvino, Windows ML
RAM installed	32 GB
Maximum supported RAM	32 GB
Type of RAM	Lpddr5x-SDRAM
Memory Shape Factor	Aboard
Memory channels	Dual-channel
Data transfer speed in memory	7467 mt / s
Total storage capacity	1 TB
Memory Support	SSD
Type of optical unit	No
Total SSD capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
Solid State Drive Interface (SSD)	PCI Express 4.0
NVMe	Yup
SSD Size	M.2
SSD performance class	40
Integrated graphics card	Yup
Separate graphics card adapter	Yup
Dedicated graphics card	NVIDIA RTX 1000 ADA
Integrated graphics card template	Intel Arc graphics
Dedicated graphic memory	6 GB
Type of graphics card memory	Gddr6
Integrated GPU manufacturer	Intel
Integrated graphics card adapter family	Intel Arc graphics
Number of integrated speakers	4
Speaker brand	Waves
Built-in microphone	Yup
Number of microphones	2
Front camera	Yup
Front camera resolution (numeric)	2.07 MP
Front camera resolution	1920 x 1080 pixels
HD type of front camera	Full HD
Video acquisition speed	30 fps
Infrared camera (IR)	Yup
Mobile network connection	No
Standard Wi-Fi	Wi-Fi 7 (802.11bs)
Standard Wi-Fi	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6e (802.11ax), Wi-Fi 7 (802.11b)
Type of antenna	2x2
WLAN control device model	Intel Wi-Fi 7 BE200
WLAN controller manufacturer	Intel
Bluetooth	Yup
MIMO	Yup
Mime	MIMO Multi user
USB 2.0 port quantities	0
Quantity of USB ports 3.2 Jan 1 (3.1 Jan 1) type A	0
Quantity of USB ports 3.2 Jan 1 (3.1 Jan 1) type C	0
HDMI ports quantities	1
Quantity of USB ports 3.2 Jan 2 (3.1 Jan 2) type C	1
HDMI version	2.1
Quantity of doors Thunderbolt 4	2
Intel® Thunderbolt 4	Yup
Combined jack for microphone / headphones	Yup
DisplayPort Usb Type C mode Alternative	Yup
Environmental light sensor	Yup
Accelerometer	Yup
Proximity sensor	Yup
Gyroscope	Yup
Hall effect sensor	Yup
Numeric keyboard	No
Pointing device	TouchPad
backlit keyboard	Yup
Keyboard language	Spanish
Copilot button	Yup
Operating system included	Windows 11 Pro
Operating system architecture	64 bit
Operating system language	English, ESP, French, ITA, Portuguese
Test software	No Microsoft Office License Included - Test Offer only 30 days
Battery capacity	99.5 WH
Battery technology	Lithium ions
Number of battery cells	6
Battery voltage	11.55 V
Charging time	3 H
Rapid charging	Yup
Battery charging indicator	Yup
Battery weight	363 g
AC power dissipation adapter	165 W
AC frequency adapter	50 - 60 Hz
AC input voltage adapter	100 - 240 V
USB power supply	Yup
Cable block	Yup
Type of slot cable lock	Zeppe
Fingerprint reader	Yup
Trust platform module (TPM)	Yup
trusted Platform Module (TPM) version	2.0
Password protection	Yup
Operating temperature range	0 - 35 °C
Temperature range	-40 - 65 °C
Operational humidity range	10 - 90%
Relative humidity	0 - 95%
Altitude of operation	-15.2 - 3048 m
Non-operation altitude	-15.2 - 10668 m
Operating shock	110 g
Malfunction shock	160 g
Vibration of operation	0.66 g
Vibration of malfunction	1.3 g
Weight	2.03 kg
Width	353.7 mm
Depth	240.3 mm
Height (front)	2.05 cm
Height (back)	2.22 cm
Total carbon footprint (CO2E kg)	246
Carbon emissions, production (CO2E kg)	200,49
Carbon emissions, logistics (CO2E kg)	6,888
Carbon emissions, energy consumption (CO2E kg)	35,916
Carbon emissions, end of life (CO2E kg)	2,46
Total carbon emissions, no phase of use (CO2E kg)	210,084
Pair version	Gabi version 1, 2024
Cables included	AC
