Balances expandability and performance
Flexible two-socket tower server for enterprise workloads outside of the traditional data center.

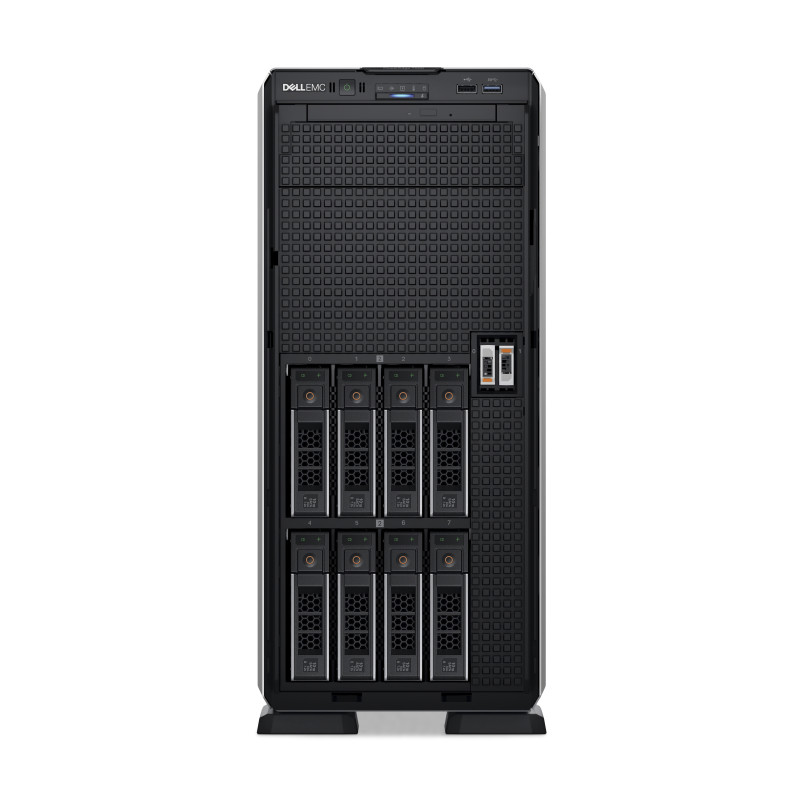

DELL PowerEdge T550. Processor family: Intel Xeon Silver, Processor frequency: 2.4 GHz, Processor model: 4314. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 480 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 1100 W. Chassis type: Tower

Processor family	Intel Xeon Silver
Processor manufacturer	Intel
Processor model	4314
Processor frequency	2.4 GHz
Processor generation	3rd Generation Intel® Xeon® Scalable
Processor boost frequency	3.4 GHz
Processor cores	16
Processor cache	24 MB
Number of processors installed	1
Thermal Design Power (TDP)	135 W
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Buffered memory type	Registered (buffered)
Memory ranking	2
Memory slots	16x DIMM
Memory layout (slots x size)	1 x 32 GB
Memory data transfer rate	3200 MT/s
Total storage capacity	480 GB
RAID support	Yes
Optical drive type	No
Number of SSDs installed	1
SSD capacity	480 GB
SSD interface	SATA III
SSD size	2.5"
Supported SSD sizes	3.5"
Number of SSDs supported	8
Supported RAID controllers	PERC H755
Hot-Plug support	Yes
Internal drive bays	8
Supported storage drive interfaces	SAS, Serial ATA
Drive writes per day (DWPD)	1
Storage drive adapter included	Yes
Storage drive adapter type	2.5" - 3.5"
On-board graphics card	No
On-board graphics card model	Not available
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
Serial ports quantity	1
Chassis type	Tower
Product color	Black
Bezel	Yes
Remote administration	iDRAC9, Enterprise 15G
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS ● Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Redundant power supply (RPS) support	No
Power supply	1100 W
Number of main power supplies	1
Power supply input voltage	220 V
Power cable length	78.7" (2 m)
Power cable connector 1	C13 coupler
Power cable current	10 A
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 472440.9" (0 - 12000 m)
Total carbon footprint (kg of CO2e)	9090
Total carbon emissions, standard deviation (kg of CO2e)	4620
Carbon emissions, manufacturing (kg of CO2e)	1095
Carbon emissions, logistics (kg of CO2e)	565
Carbon emissions, energy usage (kg of CO2e)	7390
Carbon emissions, end-of-life (kg of CO2e)	47
Total carbon emissions, w/o use phase (kg of CO2e)	1707
PAIA version	1.3.2, 2022
Width	7.87" (200 mm)
Depth	26.8" (680.5 mm)
Height	18.1" (459 mm)
Data transfer rate	6 Gbit/s
Bytes per sector	512
