Faster, more powerful and balanced
A purpose-built office-friendly server, maximising next-gen technologies with GPU options to achieve enterprise-level performance.

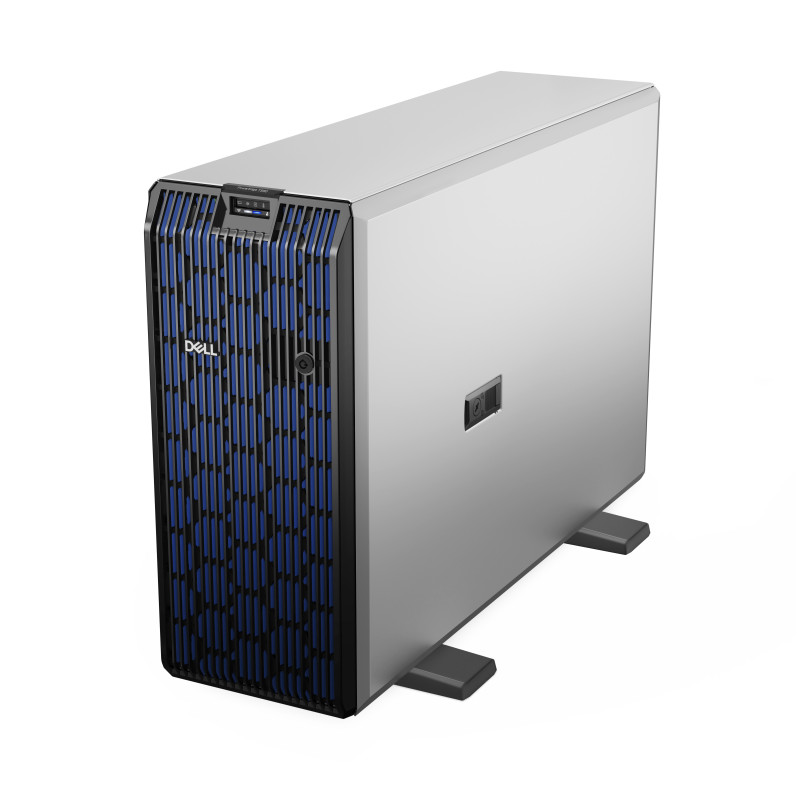

DELL PowerEdge T560. Processor family: Intel Xeon Silver, Processor frequency: 2 GHz, Processor model: 4410Y. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 480 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 1100 W. Chassis type: Tower (4.5U)

Processor family	Intel Xeon Silver
Processor manufacturer	Intel
Processor model	4410Y
Processor frequency	2 GHz
Processor generation	Intel Xeon Scalable 4th Gen
Processor boost frequency	3.9 GHz
Processor cores	12
Processor cache	30 MB
Motherboard chipset	Intel C741
Number of processors installed	1
Thermal Design Power (TDP)	150 W
System bus rate	16 GT/s
Processor threads	24
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	4000 MHz
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	1 TB
Buffered memory type	Registered (buffered)
Memory ranking	2
Memory slots	16x DIMM
Memory layout (slots x size)	1 x 32 GB
Memory data transfer rate	5600 MT/s
Total storage capacity	480 GB
RAID support	Yes
Optical drive type	No
Number of SSDs installed	1
SSD capacity	480 GB
SSD interface	SATA III
SSD size	2.5"
Supported SSD sizes	3.5"
Number of SSDs supported	8
Supported RAID controllers	PERC H755
Hot-swap	Yes
Drive writes per day (DWPD)	1
Storage drive adapter included	Yes
Storage drive adapter type	2.5" - 3.5"
LAN controller	Broadcom 5720
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
Chassis type	Tower (4.5U)
Product color	Black
Rack rails	Yes
Remote administration	iDRAC9, Enterprise 16G
Operating system installed	No
Compatible operating systems	Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Redundant power supply (RPS) support	No
Power supply	1100 W
Number of main power supplies	1
Power supply input voltage	220 V
Total carbon footprint (kg of CO2e)	5989
Total carbon emissions, standard deviation (kg of CO2e)	3189
Carbon emissions, manufacturing (kg of CO2e)	419
Carbon emissions, logistics (kg of CO2e)	299
Carbon emissions, energy usage (kg of CO2e)	5210
Carbon emissions, end-of-life (kg of CO2e)	60
Total carbon emissions, w/o use phase (kg of CO2e)	779
PAIA version	1.3.2, 2022
Width	7.87" (200 mm)
Data transfer rate	6 Gbit/s
Bytes per sector	512
