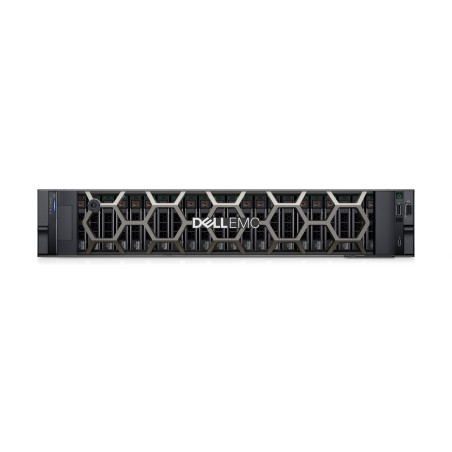

Purpose-built 2U for growing scale-out solutions
The Dell EMC PowerEdge R750xs is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments.

DELL PowerEdge R750XS. Processor family: Intel Xeon Silver, Processor frequency: 2.4 GHz, Processor model: 4314. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 480 GB. Ethernet LAN. Power supply: 800 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)

Processor family	Intel Xeon Silver
Processor manufacturer	Intel
Processor model	4314
Processor frequency	2.4 GHz
Processor generation	3rd Generation Intel® Xeon® Scalable
Processor boost frequency	3.4 GHz
Processor cache	24 MB
Number of processors installed	1
Maximum internal memory supported by processor	512 GB
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	1 TB
Buffered memory type	Registered (buffered)
Memory ranking	2
Memory slots	16x DIMM
Memory clock speed	2666 MHz
Memory layout (slots x size)	1 x 32 GB
Memory data transfer rate	3200 MT/s
Total storage capacity	480 GB
Optical drive type	No
Number of SSDs installed	1
SSD capacity	480 GB
SSD interface	SATA III
SSD size	2.5"
Supported SSD sizes	3.5"
Number of SSDs supported	8
Supported RAID controllers	PERC H755
Hot-Plug support	Yes
Drive writes per day (DWPD)	1
Storage drive adapter included	Yes
Storage drive adapter type	2.5" - 3.5"
On-board graphics card model	Not available
LAN controller	Broadcom 57412
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Power cables quantity	1
PCI Express x4 slots	1
PCI Express x16 slots	1
Chassis type	Rack (2U)
Product color	Black
Rack rails	Yes
Bezel	Yes
Remote administration	iDRAC9, Enterprise 15G
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Redundant power supply (RPS) support	Yes
Power supply	800 W
Number of redundant power supplies supported	2
Number of main power supplies	1
Power cable length	78.7" (2 m)
Power cable connector 1	C13 coupler
Power cable connector 2	C14 coupler
Power cable current	10 A
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 472440.9" (0 - 12000 m)
Harmonized System (HS) code	84714100
Total carbon footprint (kg of CO2e)	8930
Total carbon emissions, standard deviation (kg of CO2e)	4770
Carbon emissions, manufacturing (kg of CO2e)	1037
Carbon emissions, logistics (kg of CO2e)	162
Carbon emissions, energy usage (kg of CO2e)	7700
Carbon emissions, end-of-life (kg of CO2e)	26
Total carbon emissions, w/o use phase (kg of CO2e)	1225
PAIA version	1.3.2, 2022
Height	3.42" (86.8 mm)
Data transfer rate	6 Gbit/s
Bytes per sector	512
Drive bays	8
