The perfect blend of performance and density
Run the most popular IT applications easily with this air-cooled server that is the best choice for balanced and dense compute.

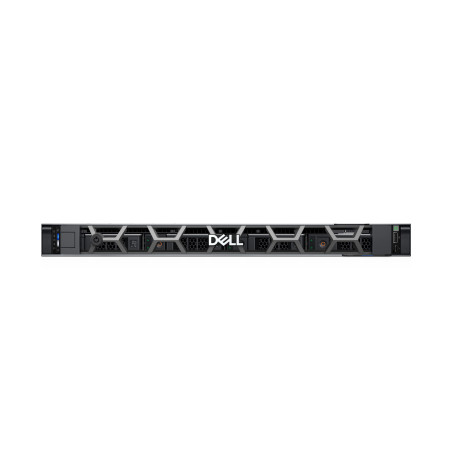

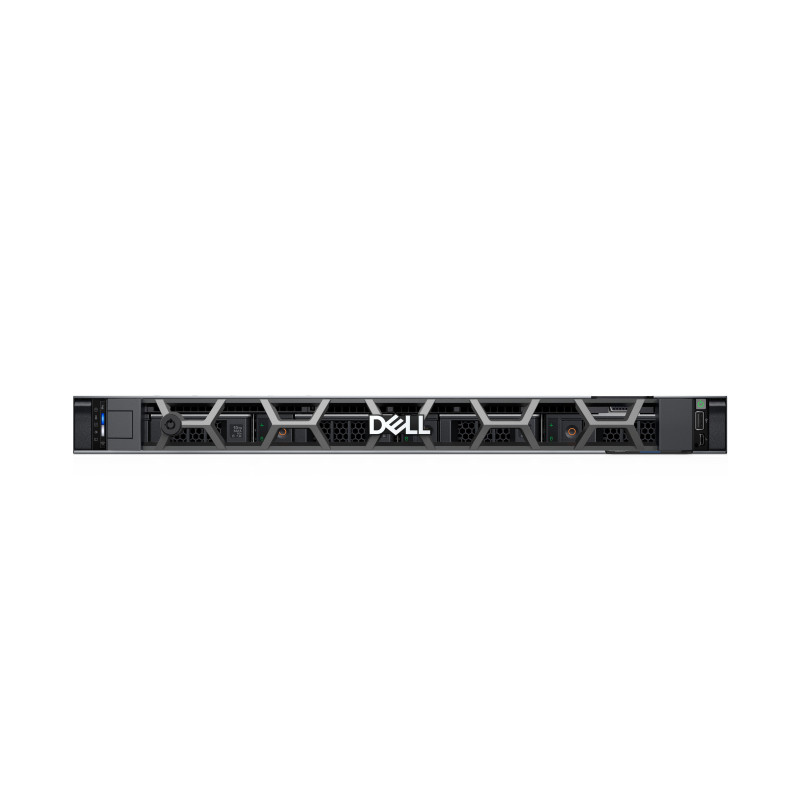

DELL PowerEdge R660XS. Processor family: Intel Xeon Silver, Processor frequency: 2.7 GHz, Processor model: 4410T. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 480 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 700 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)

Processor family	Intel Xeon Silver
Processor manufacturer	Intel
Processor model	4410T
Processor frequency	2.7 GHz
Processor boost frequency	4 GHz
Processor cores	10
Processor cache	26.25 MB
Number of processors installed	1
Maximum internal memory supported by processor	512 GB
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	1 TB
Buffered memory type	Registered (buffered)
Memory ranking	2
Memory slots	16x DIMM
Memory layout (slots x size)	1 x 32 GB
Memory data transfer rate	5600 MT/s
Total storage capacity	480 GB
RAID support	Yes
Number of SSDs installed	1
SSD capacity	480 GB
SSD interface	SATA III
SSD size	2.5"
Supported RAID controllers	PERC H755
Hot-Plug support	Yes
Internal drive bays	8
Supported storage drive interfaces	SAS, Serial ATA
On-board graphics card	No
LAN controller	Broadcom 5720
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Chassis type	Rack (1U)
Product color	Black
Rack rails	Yes
Bezel	Yes
Remote administration	iDRAC9, Enterprise 16G
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi
Redundant power supply (RPS) support	Yes
Power supply	700 W
Number of redundant power supplies supported	2
Number of redundant power supplies installed	2
Power supply input voltage	200 - 240 V
Power cable length	78.7" (2 m)
Power cable connector 1	C13 coupler
Power cable connector 2	C14 coupler
Power cable current	12 A
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 472440.9" (0 - 12000 m)
Total carbon footprint (kg of CO2e)	6561
Total carbon emissions, standard deviation (kg of CO2e)	3677
Carbon emissions, manufacturing (kg of CO2e)	459
Carbon emissions, logistics (kg of CO2e)	131
Carbon emissions, energy usage (kg of CO2e)	5971
Carbon emissions, end-of-life (kg of CO2e)	0
Total carbon emissions, w/o use phase (kg of CO2e)	590
PAIA version	1.3.2, 2022
Width	17.1" (434 mm)
Height	1.69" (42.8 mm)
Data transfer rate	6 Gbit/s
Bytes per sector	512
