System & CPU Performance
ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.

Graphics Performance
ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 14.4% in 3DMark11 to 23.6% in the 3DMark Night Raid performance benchmarks.

4K Resolution & Quad Display Support
ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports, two DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.

Ultra-realistic 8K Visuals
ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.

USB Power Delivery Input
ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

Easy Upgrades
An easy-access underside panel allows users replace and upgrade memory, storage and the wireless card. All that’s required is a screwdriver.

Configurable Port
ASUS ExpertCenter PN52 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners or receipt printers.

Superfast 2.5 Gbps Networking
2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Multi-storage Design
ASUS ExpertCenter PN52 is able to accommodate two M.2 SSDs and a 2.5-inch HDD, allowing users to specify custom storage solutions for a balance of speed and capacity that best suits their needs.

Military-grade Durability
ASUS ExpertCenter PN52 is subjected to rigorous MIL-STD-810H durability tests, enduring extreme temperatures and humidity, high altitude, plus drop and vibration tests to ensure it’s fit to perform in the harshest conditions.

Enhanced Software - MyASUS

AI Noise Cancelation
Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.

System Diagnosis
Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.

Smart Fan Control
Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.

Other Functions
WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

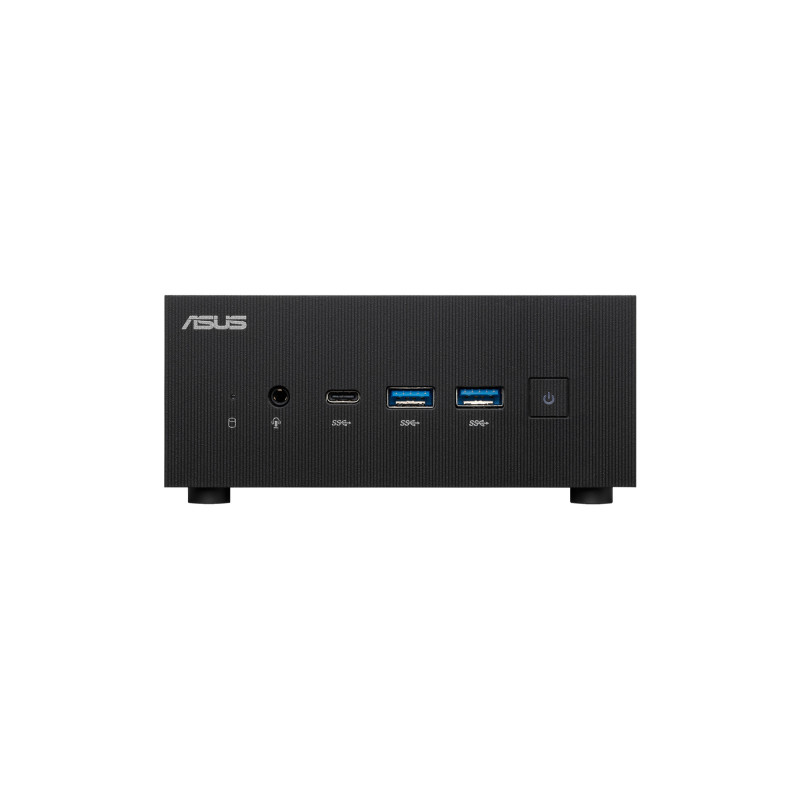

ASUS PN52-BBR758HD. Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 32 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.2. Power supply: 120 W

Built-in processor	Yes
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor model	5800H
Processor cores	8
Processor threads	16
Processor boost frequency	4.4 GHz
Processor frequency	3.2 GHz
Processor cache	16 MB
L2 cache	4 MB
L3 cache	16 MB
Thermal Design Power (TDP)	45 W
Number of memory slots	2
Maximum internal memory	32 GB
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2
SSD form factor	M.2
Storage drive interface	PCI Express
Number of storage drives supported	3
On-board graphics card	Yes
Graphics card family	AMD
On-board graphics card model	AMD Radeon Graphics
Built-in speaker(s)	No
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
LAN controller	Realtek RTL8125B-CG
Bluetooth	Yes
Bluetooth version	5.2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Combo headphone/mic port	Yes
DC-in jack	Yes
Product color	Black
Product type	Mini PC barebone
Trusted Platform Module (TPM)	Yes
Certification	BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Operating system installed	No
Power supply type	External AC adapter
Power supply	120 W
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Width	4.72" (120 mm)
Depth	5.12" (130 mm)
Height	2.28" (58 mm)
Weight	2.2 lbs (1 kg)
